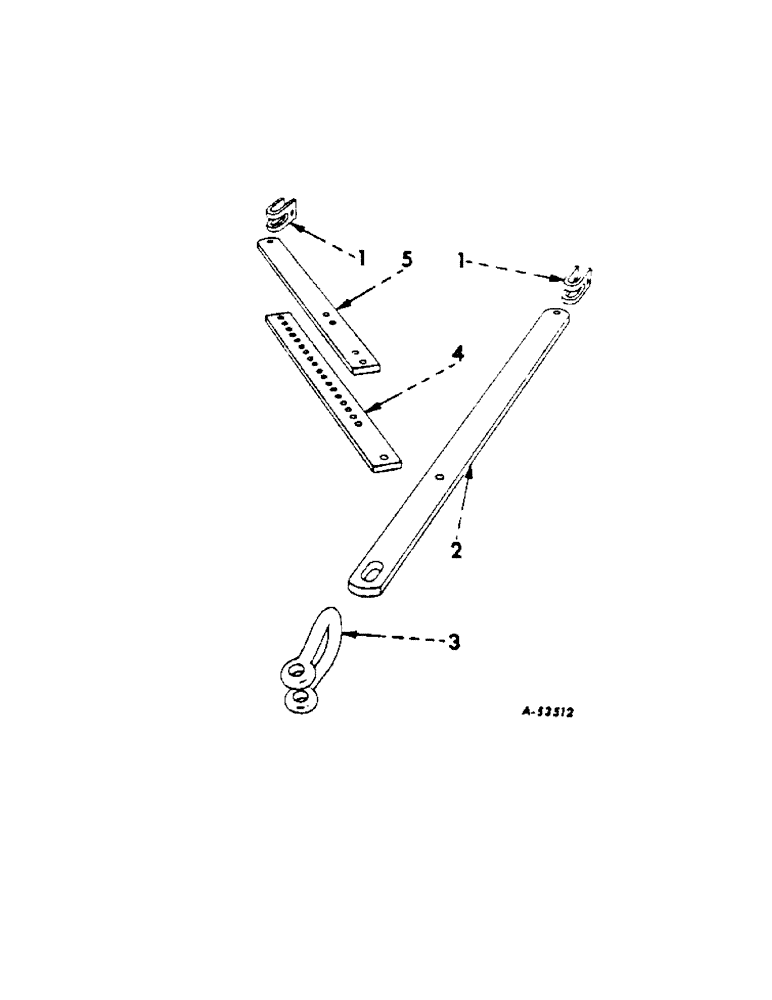

Запчасти Case IH 60 (D-23[A]) - RIGID HITCH

1

525411R1

CLEVIS, hitch rear

2шт.

5/8 x 2-1/2 CAP SCREW

2шт.

458188R1

NUT

5/8 HEX-HD LOCK NUT

2шт.

U5364

PIN,5/8" x 2 11/16"

5/8 x 2-11/16 STD-HD PIN

2шт.

3/16 x 1 SELF-OPENING COT PIN

2шт.

21/32 x 1-1/2 x 11 GA WASHER

4шт.

2

525410R2

DRAWBAR

1шт.

3

PO13563

CLEVIS COUPLING

CLEVIS, drawbar

1шт.

231-14012

LOCK NUT,3/4"-10, GB

3/4 ESNA STOP NUT

1шт.

3/4 x 4 CAP SCREW

1шт.

4

525407R1

BRACE, drawbar front diagonal

1шт.

5/8 NUT

1шт.

5/8 x 2-1/2 CAP SCREW

1шт.

5/8 LOCK WASHER

1шт.

5

525406R1

BRACE, drawbar rear diagonal

1шт.

5/8 x 2 CAP SCREW

2шт.

3/4 NUT

2шт.

3/4 LOCK WASHER

2шт.
