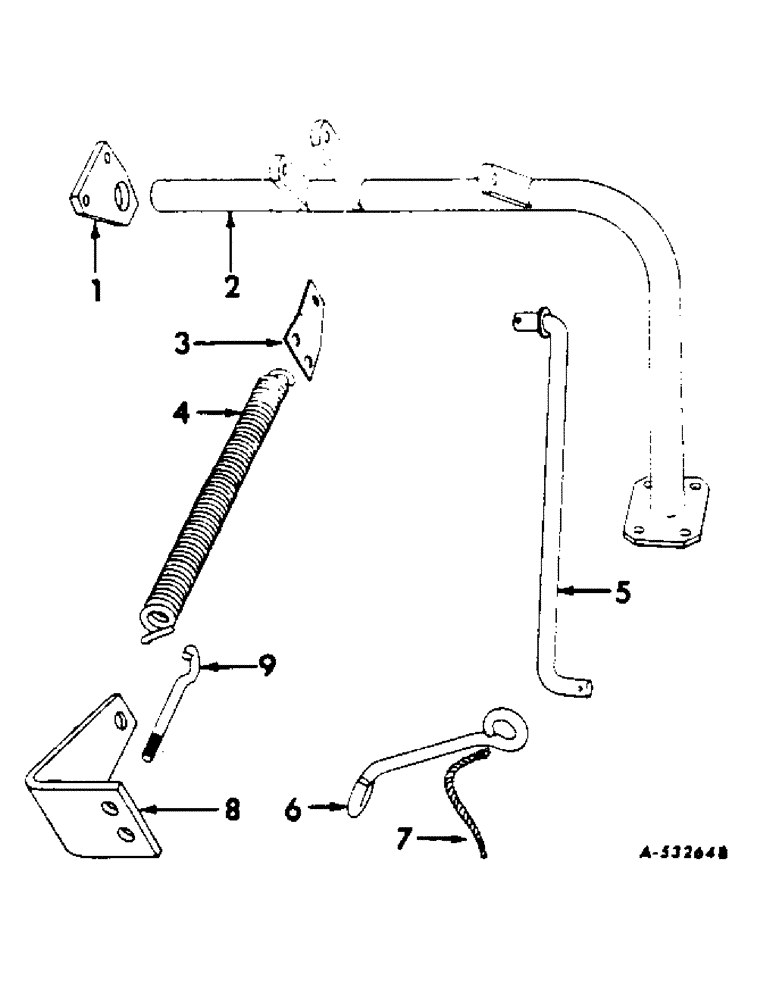

Запчасти Case IH 60 (D-14) - LAND AXLE AND PITMAN LINK

1

525368R1

PLATE, axle bearing support

1шт.

2

526916R91

AXLE, 14 in., see note

1шт.

2

526917R91

AXLE, 16 in., see note

1шт.

1/2 x 1 CAP SCREW

6шт.

1/2 LOCK WASHER

6шт.

3

526357R1

CLIP, raising spring

1шт.

7/16 x 1-1/4 HEADED PIN

1шт.

3/16 x 1 SELF-OPENING COT PIN

1шт.

4

PO107

SPRING, raising

1шт.

5

525416R11

LINK ASSY, pitman

1шт.

1/4 x 1-1/2 SELF-OPENING PIN

2шт.

29/32 x 1-1/2 x 11 GA WASHER

2шт.

6

518652R1

GUIDE, trip rope

1шт.

5/8 x 4-1/4 MACH BOLT

1шт.

6/8 LOCK WASHER

1шт.

21/32 x 1-1/4 x 11 GA WASHER

1шт.

7

ROPE, trip, 3/8 x 150 sisal, purchase locally

1шт.

8

526358R1

ANCHOR, spring

1шт.

5/8 x 3-1/4 MACH BOLT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

9

PO14033A

EYEBOLT, raising spring

1шт.

102637

NUT,1/2"-13, G5

2шт.
