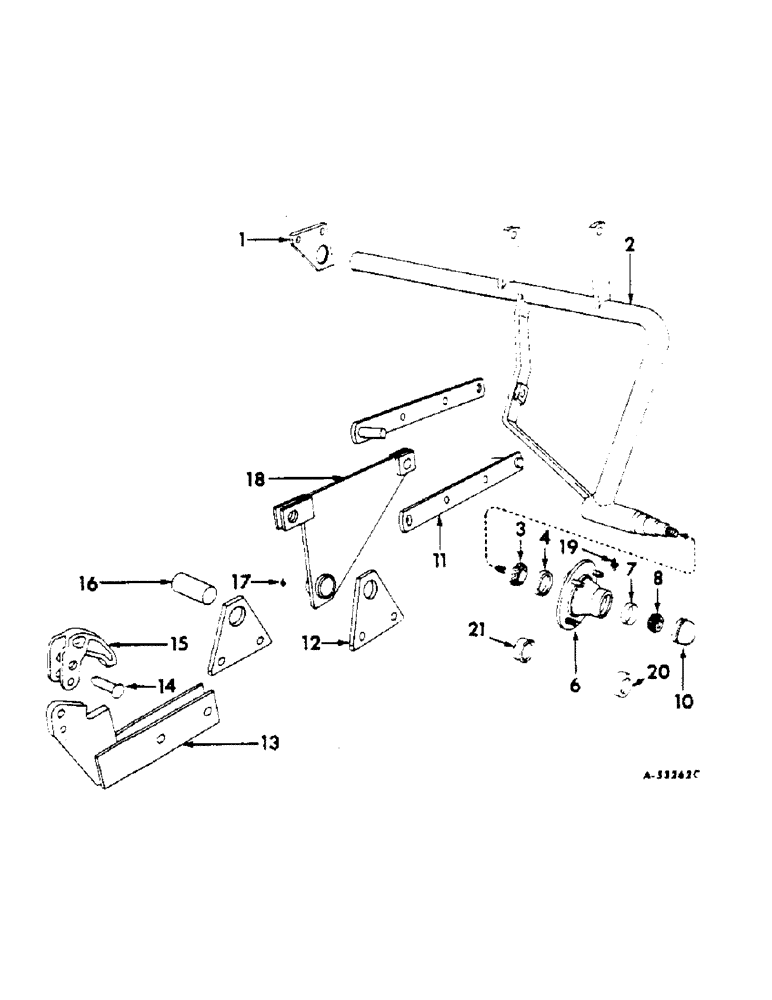

Запчасти Case IH 60 (D-13) - LAND AXLE AND CYLINDER SUPPORT

1

525368R1

PLATE, axle support

1шт.

2

526918R92

AXLE, 14 in., 1958 to 1961, see note

1шт.

2

526919R92

AXLE, 16 in., 1958 to 1961, see note

1шт.

2

467492R92

AXLE, 14 in., 1961 & up, see note

1шт.

2

467493R92

AXLE, 16 in., 1961 & up, see note

1шт.

.

69442D

NUT

3/4UNF SLT NUT

1шт.

.

1/8 x 1-1/4 SELF-OPENING COT PIN

1шт.

.

472634R1

WASHER

25/32 x 1-3/4 x 11 GA WASHER

1шт.

3

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

w/seal, land wheel hub inner, 1958 to 1962

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, land wheel hub inner cone, 19363 & up

1шт.

4

651817R1

BEARING CUP

BEARING, land wheel hub inner cup

1шт.

5

(Not used this application)

1шт.

6

652381R91

HUB

w/bolts and cups, land wheel, Serial Range: 1958-1961

1шт.

6

461892R31

HUB w/bolts and cups, land wheel, Serial Range: 1961-1962

1шт.

.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2 UNF x 1-5/8, SPECIAL BOLT

4шт.

.

453770R1

WHEEL NUT

1/2 UNF CONICAL NUT

4шт.

6

472220R11

HUB

w/set screw, 1963 & up

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 x 15/16 CONICAL-HD BOLT

4шт.

7

651814R1

BEARING CUP

BEARING, land wheel hub outer cup

1шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, land wheel hub outer cone

1шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

9

(Not used this application)

1шт.

10

651194R1

CAP

land wheel hub

1шт.

11

525408R91

LINK ASSY, pitman

2шт.

.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

.

PO12898

WASHER

29/32 x 1-1/2 x 11 GA WASHER

1шт.

12

525403R1

PLATE, bellcrank support

2шт.

13

525405R91

BRACKET, cylinder anchor

1шт.

.

5/8 NUT

2шт.

.

5/8 x 3-1/4 CAP SCREW

1шт.

.

5/8 x 2-1/4 CAP SCREW

1шт.

.

5/8 LOCK WASHER

2шт.

14

512683R1

PIN

5/8 x 2-5/8 transport, 1958

1шт.

14

520277R1

PIN

5/8 x 2-13/16 transport, 1959 & up

1шт.

.

520175R1

CLIP

QUICK-ATTACHABLE cot pin

1шт.

15

523736R1

RETAINER

cyl bracket pin, order retainer, 526263R1 and pin, 520277R1

1шт.

15

526263R1

RETAINER

cyl bracket pin

1шт.

.

3490B

HEADED PIN,1/2" x 2 1/4"

1/2 x 2-1/4 DLD-STD-HD PIN

1шт.

.

3/16 x 1 SELF-OPENING COT PIN

1шт.

.

PO10535

WASHER

17/32 x 1-1/4 x 11 GA WASHER

2шт.

16

525392R1

PIN, bellcrank pivot

1шт.

.

5/16 x 2 SELF-OPENING COT PIN

2шт.

.

126A

WASHER

1-17/32 x 2 x 11 GA WASHER

2шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub

1шт.

18

525409R91

BELLCRANK, raising

1шт.

.

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, drive type str lub, in bearing plate

1шт.

19

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub, 1963 & up

1шт.

20

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil, 1963 & up

1шт.

21

472222R1

SLEEVE

oil seal wear, 1963 & up

1шт.
