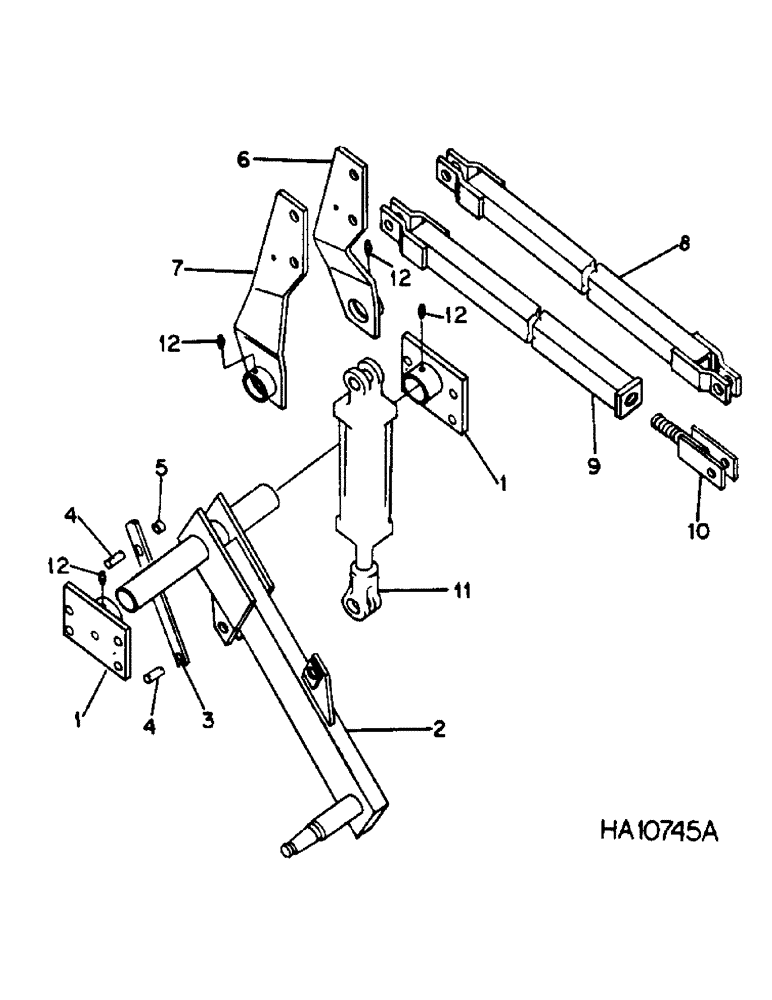

Запчасти Case IH 60 (A-07) - DEPTH CONTROL AND AXLE, 15 FOOT

1

810855C1

SUPPORT

ASSY, axle

4шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8 x 3-1/4 type 5

12шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

16шт.

2

810207C91

AXLE

ASSY, RH

1шт.

2

810206C91

AXLE

ASSY, LH, includes washer, 619373R1, nut, 70120D and pin, 103388

1шт.

3

810878C1

BAR

trans lock

2шт.

4

810884C1

PIN

trans lock

4шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

6шт.

599744R1

AXLE PIN

PIN, quick attachable cot.

2шт.

5

85490H

SPACER

5/8 x .750 tube

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

6

810852C1

SUPPORT

ASSY, axle cyl LH

2шт.

7

810853C1

SUPPORT

ASSY, axle cyl RH

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

810816C1

ROD

ASSY, rigid truss

1шт.

9

810793C1

ROD

ASSY, adj truss

1шт.

28541R1

PIN, 1 x 2.188 x 1.822 type 1

2шт.

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4 hd type 1

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

3шт.

10

811976C1

CLEVIS

ASSY, truss rod

1шт.

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4 hd type 1

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.

11

149920C91

CYLINDER

CYL ASSY, 3.5 x 8 master, IH

1шт.

11

812368C91

CYLINDER

CYL ASSY, 3.5 x 8 master, Cessna

1шт.

11

812367C91

CYLINDER

CYL ASSY, 3.25 x 8 slave, Cessna

1шт.

87423770R

REMAN-HYD CYLINDER

60 (1/78-12/79), 6000 (1/79-) both INTERNATIONAL HARVESTER CONSER-TILL PLOW, Reman for New P/N 812367C91

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

11

149919C93

CYLINDER

CYL ASSY, 3.25 x 8 slave, IH

1шт.

87423770R

REMAN-HYD CYLINDER

60 (1/78-12/79), 6000 (1/79-) both INTERNATIONAL HARVESTER CONSER-TILL PLOW, Reman for New P/N 149919C93

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

11

810311C91

CYLINDER

CYL ASSY, 3.25 x 8 slave, Prince, for details refer to hydraulic cylinders

1шт.

87423770R

REMAN-HYD CYLINDER

60 (1/78-12/79), 6000 (1/79-) both INTERNATIONAL HARVESTER CONSER-TILL PLOW, Reman for New P/N 810311C91

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

810751C1

PIN

1 x 3.5 std hd dld spcl

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

12

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

8шт.
