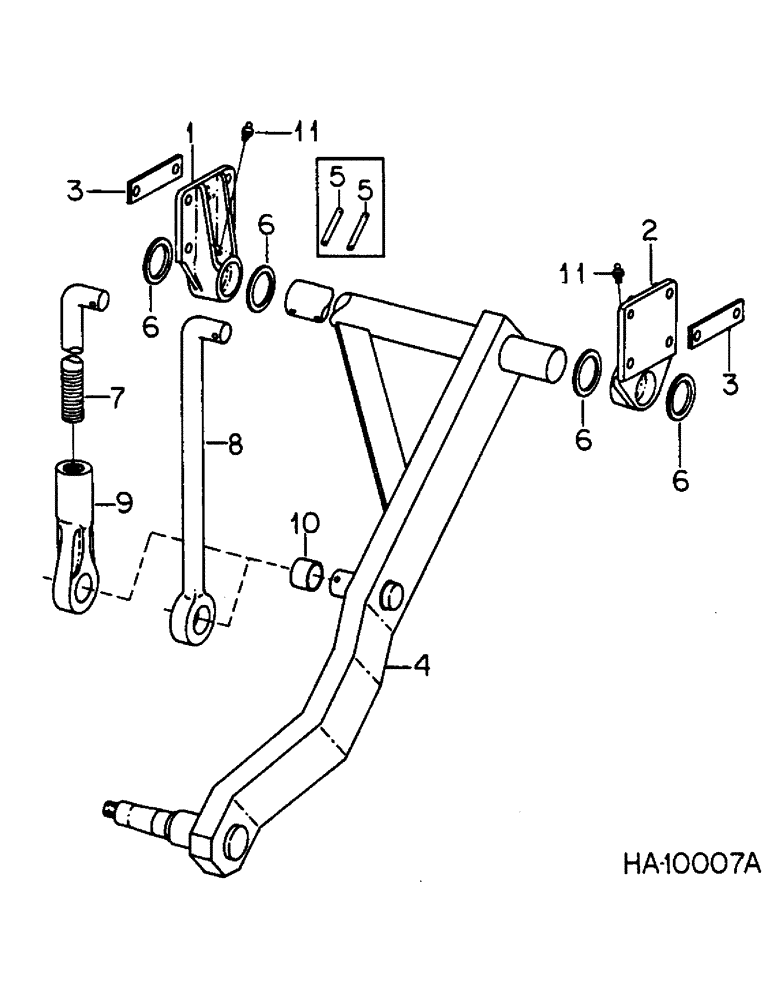

Запчасти Case IH 60 (A-06) - WHEEL AXLE, 10 FOOT AND 13 FOOT

1

608315R1

SUPPORT

axle

2шт.

2

608315R1

SUPPORT

axle

2шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

8шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 x 3-1/4 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

3

810180C1

BAR

support spacer

4шт.

4

812429C92

SHAFT

AXLE ASSY, wheel, includes 1-619373R1 washer, 1-70120D nut, 1-103388 pin

2шт.

5

812332C1

PIN

axle locking, used w/812429C91

4шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

8шт.

6

22811R1

WASHER

2.031 x 2.750 x .067

4шт.

7

608324R1

BAR

ROD, lift adjustable

1шт.

8

608325R2

ROD

rigid lift

1шт.

608700R1

WASHER

1.281 x 2.000 x .054

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

9

608322R2

EYE

lift link

1шт.

10

608323R2

BUSHING,32.16mm ID x 41.27mm OD x 40.89mm L

lift rod

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

20644R1

WASHER

1.656 x 2.250 x .054

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.
