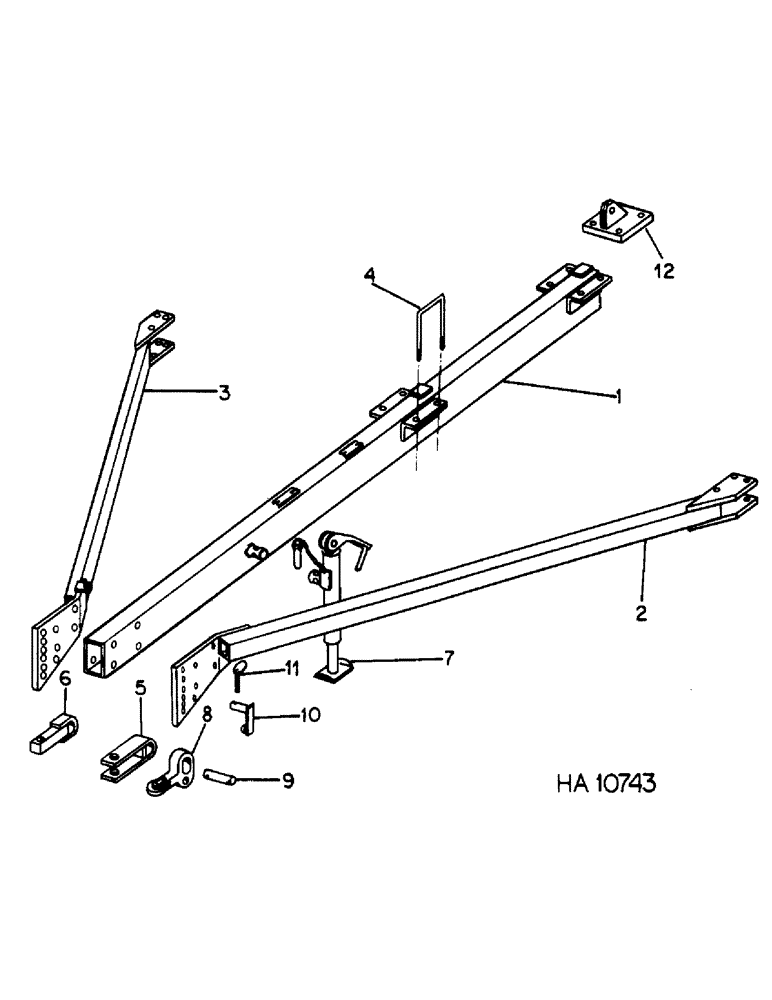

Запчасти Case IH 60 (A-05) - HITCH, 15 FOOT

1

810795C1

BEAM

ASSY, hitch center

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

4шт.

280954

NUT,3/4"-10, G5

4шт.

2

810796C1

BEAM

ASSY, hitch brace LH

1шт.

3

810797C1

BEAM

ASSY, hitch brace RH

1шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8 x 6-1/2 type 5

2шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

BOLT, 3/4 x 5-1/2 type 5

2шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

280954

NUT,3/4"-10, G5

2шт.

21753R1

WASHER

.781 x 1.500 x .054 x .054 znd

4шт.

4

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

center beam

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

464623R1

WASHER

.656 x 1.500 x .105

4шт.

5

597324R1

CLEVIS

ASSY, hitch, regular

1шт.

6

605866R91

TOW BAR

TONGUE ASSY, heavy duty hitch

1шт.

21718R1

WASHER

1.531 x 2.250 x .105

1шт.

7

810363C91

JACK ASSY.

JACK ASSY, hitch

1шт.

8

810442C1

TOW BAR

TONGUE, hd rigid hitch

1шт.

9

810462C1

PIN

hitch

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

22051R1

WASHER

1.531 x 2.250 x .054

2шт.

10

810536C1

PIN

ASSY, hitch, replaces 810066C2

1шт.

11

621006C1

PIN

hitch klik

1шт.

12

810817C1

ANCHOR

ASSY, cylinder

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 type 5

4шт.

280954

NUT,3/4"-10, G5

4шт.
