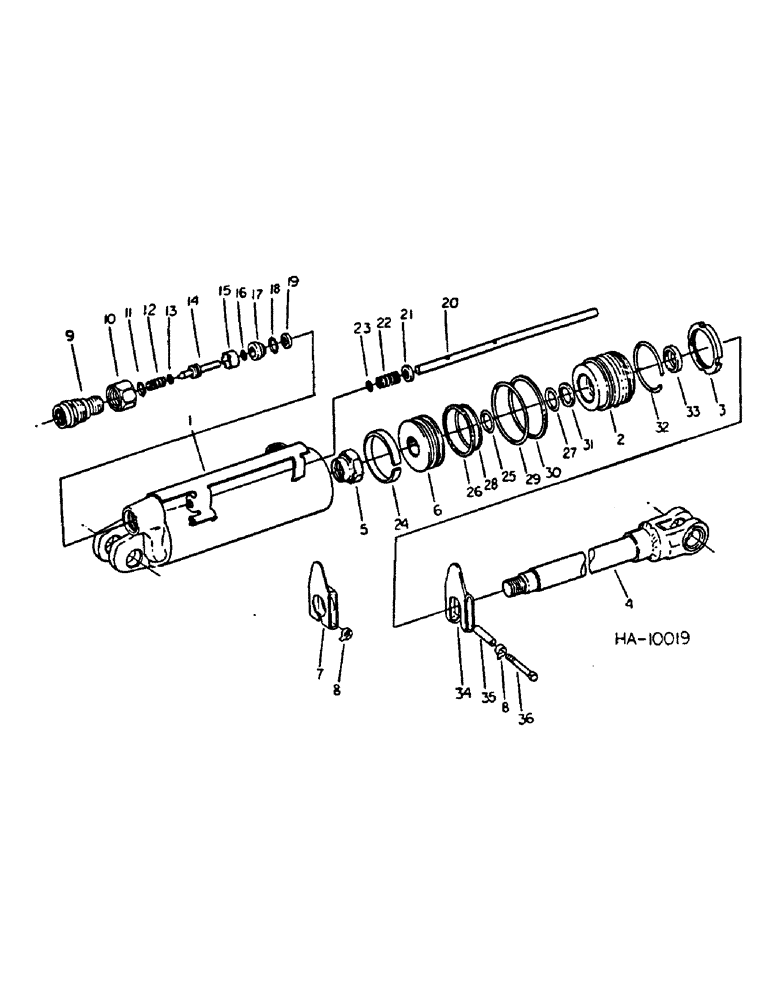

Запчасти Case IH 60 (A-34) - HYDRAULIC CYLINDER, CESSNA, 3.5 X 8 DOUBLE ACTING, DEPTTH CONTROL MASTER
№
Артикул
Название
Примечание
Количество
812368C91
CYLINDER
ASSY, 3.5 x 8 DA, Cessna
1шт.
1
BODY, cylinder (NSS)
1шт.
2
813007C1
END
cylinder bearing
1шт.
3
573697R1
BEARING LOCK NUT
bearing end
1шт.
4
812658C1
ROD
piston
1шт.
5
691547R1
NUT
piston rod
1шт.
6
813011C1
PISTON
cylinder
1шт.
7
(Not used this application)
1шт.
8
813015C1
LOCK WASHER
hex lock
1шт.
9
813057C1
FITTING
stroke control
1шт.
10
813016C1
NUT
stroke control fitting
1шт.
11
O-RING, .875 x 1.063 x .094, see note (NSS)
1шт.
12
813078C1
SPRING
plunger
1шт.
13
O-RING, .103 x .160 ID, see note, plunger (NSS)
1шт.
14
813079C1
PLUNGER
stroke control
1шт.
15
813088C1
SPACER
plunger
1шт.
16
SEAL, plunger stroke, see note (NSS)
1шт.
17
813105C1
RETAINER
plunger
1шт.
18
O-RING, .625 x .813 x .094, see note (NSS)
1шт.
19
SEAL, control plunger wiper, see note (NSS)
1шт.
20
813106C1
ROD
stroke control push
1шт.
17183R1
LOCK PIN,Sl Spring, 5/32" x 5/8"
PIN, 5/32" x 5/8", Slotted
2шт.
21
23408R1
WASHER
.469 x .750 x .054
1шт.
22
813107C1
SPRING
push rod
1шт.
23
(Not used this application)
1шт.
24
RING, piston wear, see note (NSS)
1шт.
25
O-RING, 1.250 x 1.500 x .125, see note (NSS)
1шт.
26
RING, piston slipper teflon, see note (NSS)
1шт.
27
O-RING, 1.250 x 1.500 x .125, see note (NSS)
1шт.
28
O-RING, 11/16 x 7/8 class 5, see note (NSS)
1шт.
29
O-RING, 3/4 x 15/16 class 5, see note (NSS)
1шт.
30
WASHER, bearing end o-ring back-up, see note (NSS)
1шт.
31
WASHER, bearing end o-ring back-up, see note (NSS)
1шт.
32
RING, end bearing lock, see note (NSS)
1шт.
33
SEAL, piston rod oil, see note (NSS)
1шт.
34
810247C1
CLAMP
STOP, piston rod
1шт.
810248C1
STOP
clamp, March 1981 & since
1шт.
35
811550C1
SPACER
stop, prior to March 1981
1шт.
36
189305
BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5
3/8 x 3-1/2 type 5
1шт.
9411655
LOCK NUT,3/8"-16, GB
NUT, 3/8 CAD P/T lock type 5
1шт.
22655R1
WASHER
.406 x .812 x .051 CAD
1шт.
813108C1
SEAL KIT
hyd cyl seal repair, consists of ref nos 11, 13, 16, 18, 19, 24 thru 33
1шт.
Выбрано товаров: 42
