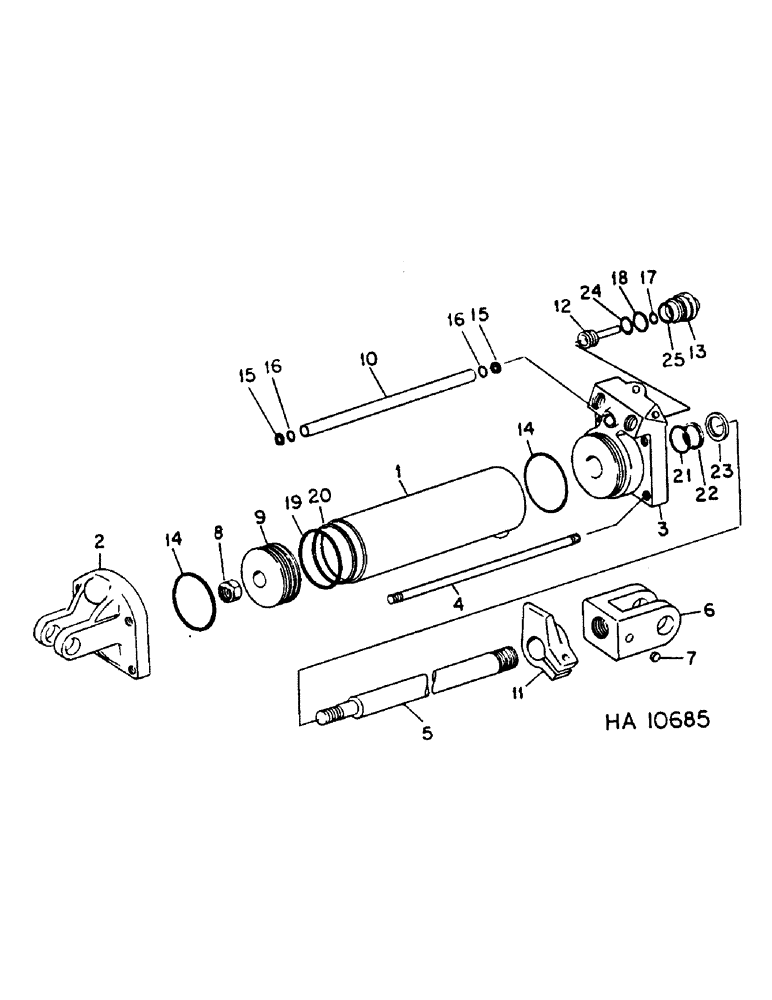

Запчасти Case IH 60 (A-27) - HYDRAULIC CYLINDER, IH, 3.5 X 8 DOUBLE ACTING

145352C91

CYLINDER ASSY.

CYLINDER ASSY, 3.5 x 8 DA hyd

1шт.

1

SLEEVE, cylinder (NSS)

1шт.

2

145354C1

HEAD

cylinder rear

1шт.

3

1260880C1

END

HEAD, cylinder front

1шт.

4

145250C1

BOLT,5/8" - 11 x 345mm

ROD, cylinder tie

4шт.

102639

NUT,5/8"-11, G5

4шт.

5

145500C1

PISTON ROD

ROD, cylinder piston

1шт.

6

145233C1

CLEVIS,1/4" - 12

END, cylinder piston rod

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, piston rod end

1шт.

8

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF PHC P/T lock type 8

1шт.

9

145422C1

PISTON

hyd cylinder

1шт.

10

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

224579C2

VALVE

cyl trip

1шт.

180085

SPRING

5/16 x 1-3/4 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

12

1260968C91

VALVE

ASSY, limit stop

1шт.

13

145359C1

RETAINER

FITTING ASSY, limit stop valve

1шт.

14

O-RING, 3-1/4 x 3-1/2 class 6, see note (NSS)

2шт.

15

O-RING, 9/16 x 3/4 class 6, see note (NSS)

2шт.

16

WASHER, return tube back-up, see note (NSS)

2шт.

17

O-RING, 3/16 x 5/16 class 6, see note (NSS)

1шт.

18

O-RING, 11/16 x 7/8 class 6, see note (NSS)

1шт.

19

O-RING, 3 x 3-3/16 class 5, see note (NSS)

1шт.

20

RING, piston seal, see note (NSS)

1шт.

21

SEAL, cyl piston, see note (NSS)

1шт.

22

WASHER, piston rod o-ring back-up, see note (NSS)

1шт.

23

SEAL, piston rod wiper, see note (NSS)

1шт.

24

RING, limit stop back-up, see note (NSS)

1шт.

25

O-RING, 3/4 OD tube class 6, see note (NSS)

1шт.

79980C1

SEAL KIT

seal repair, consists of ref nos 14 thru 21, 22 thru 25

1шт.

1272597C91

KIT

valve & transfer tube

1шт.
