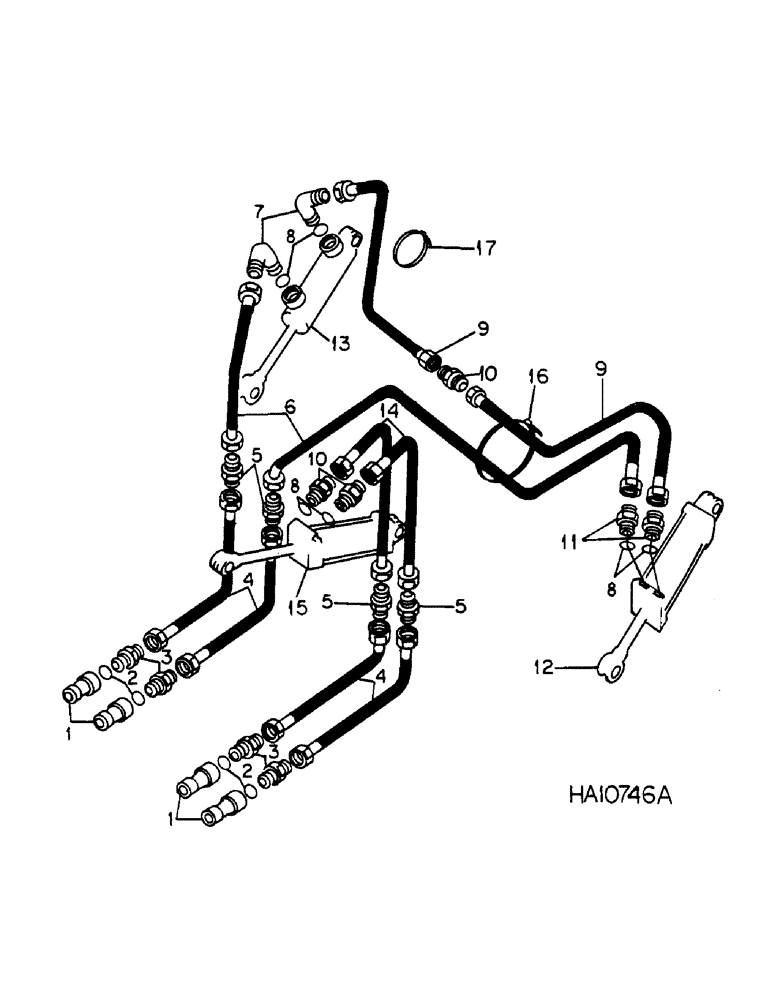

Запчасти Case IH 60 (A-22) - HYDRAULICS WITH BOLTED TYPE MASTER CYLINDER, 15 FOOT

1

395149R1

QUICK MALE COUPLING

COUPLER, hyd hose male, or

4шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hyd hose male, recommended hydraulic parts

4шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

4шт.

3

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, C-Z hyd fld 5/8 to 1/2 sht

4шт.

4

810491C1

FLEXIBLE HOSE

HOSE, 3/8 x 70 in. SAE 100 R1 w/3/4-16 fem swivel 37 deg JIC

4шт.

5

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1/2 C-Z hyd flared tube

4шт.

6

810830C1

HOSE

3/8 x 270 in. SAE 100 R7 w/3/5-16 fem swivel 37 deg JIC

2шт.

7

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90D

2шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

6шт.

9

675984R91

HOSE

3/8 x 80 in. SAE 100 R1 w/3/4-16 fem swivel 37 deg JIC see note

2шт.

10

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1/2 C-Z hyd flared tube, see note

1шт.

11

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 1/2 C-Z hyd fld short swivel

4шт.

12

149920C91

CYLINDER

ASSY, 3.5 x 8 DA master, IH

1шт.

13

812367C91

CYLINDER

ASSY, 3.25 x 8 DA slave, Cessna

1шт.

87423770R

REMAN-HYD CYLINDER

60 (1/78-12/79), 6000 (1/79-) both INTERNATIONAL HARVESTER CONSER-TILL PLOW, Reman for New P/N 812367C91

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

13

149919C93

CYLINDER

ASSY, 3.25 x 8 DA slave, IH

1шт.

87423770R

REMAN-HYD CYLINDER

60 (1/78-12/79), 6000 (1/79-) both INTERNATIONAL HARVESTER CONSER-TILL PLOW, Reman for New P/N 149919C93

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

13

810311C91

CYLINDER

ASSY, 3.25 x 8 DA slave, Prince, for components refer to hydraulic cylinder

1шт.

87423770R

REMAN-HYD CYLINDER

60 (1/78-12/79), 6000 (1/79-) both INTERNATIONAL HARVESTER CONSER-TILL PLOW, Reman for New P/N 810311C91

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

810751C1

PIN

1 x 3.5 std hd dld spcl

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

14

810649C1

FLEXIBLE HOSE

HOSE, 3/8 x 148 in. SAE 100R7 w/3/4-16 fem swivel 37 deg JIC

2шт.

15

371292R95

CYLINDER

ASSY, 3.5 x 8 DA-disk gang, or

1шт.

15

1263474C91

CYLINDER ASSY.

CYLINDER ASSY, 3.5 x 8 DA-disk gang, replaces 403842R93, or

1шт.

15

145352C91

CYLINDER ASSY.

CYLINDER ASSY, 3.5 x 8, disk gang, for components refer to hydraulic cylinder

1шт.

810851C1

PIN, cyl mounting

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER, 3/4 o-ring boss to 7/8 o-ring boss

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

16

306132C1

CABLE TIE,14.5" L

STRAP, tie, replaces 816502C1

8шт.

17

813579C1

CABLE TIE

STRAP, tie

3шт.
