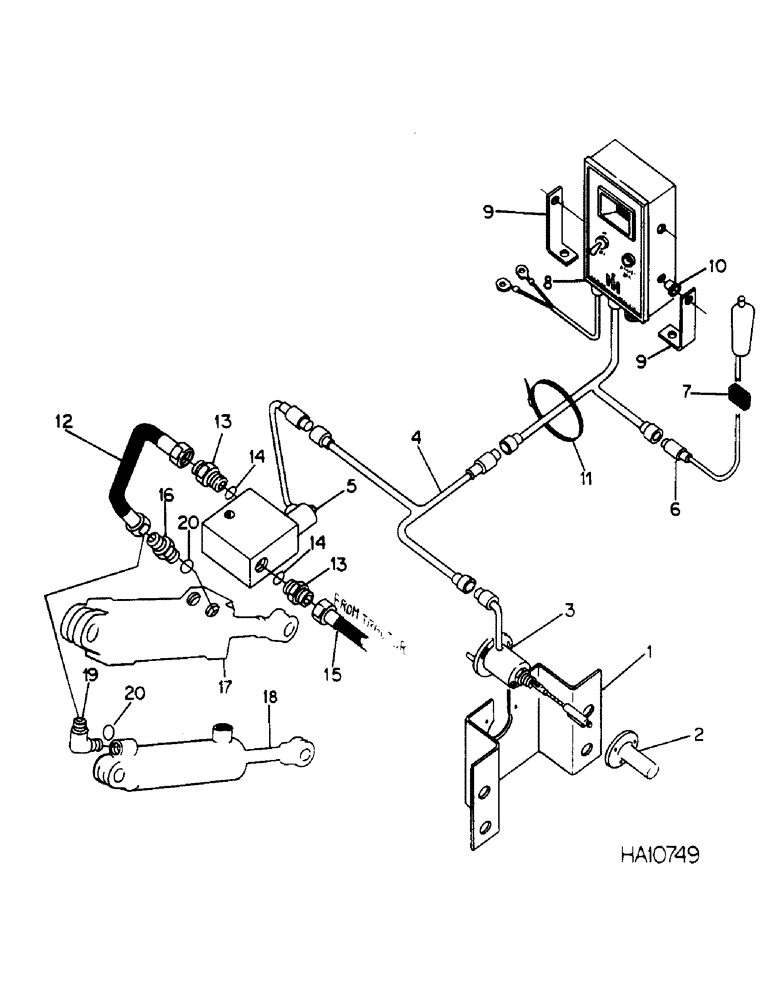

Запчасти Case IH 60 (A-19) - MEMORY DEPTH CONTROL, 15 FOOT

1

810834C1

SUPPORT

sensor

1шт.

2

810835C1

HUB

sensor

1шт.

27805R1

SCREW,Hex Wash Hd, #8 x 1/2"

no. 8-18 x 1/2 h/whd tap

3шт.

3

139688C1

POTENTIOMETER

1шт.

436665

SCREW

no. 6 x 1/2 znp p/hds mach

3шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

3шт.

138526

LOCK WASHER

no. 6 int tooth lock

3шт.

4

131394C1

HARNESS

implement

1шт.

5

139523C1

VALVE

solenoid

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 1 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

6

139693C1

HANDLE

ASSY, switch

1шт.

7

TAPE, 3/4 in self fusing-use 36 in. from bulk roll marked 996908R1

1шт.

8

139686C1

PANEL

ASSY, depth control

1шт.

9

139922C1

BRACKET

mounting

2шт.

19803R1

BOLT,Hex, 1/4" - 20 x 7/8", Gr 2

1/4 x 7/8 type 1

4шт.

10

139923C1

NUT

expansion

4шт.

11

306132C1

CABLE TIE,14.5" L

STRAP, tie, replaces 816502C1

10шт.

12

813609C1

HOSE

3/8 x 32.5 in master cyl to valve IH spec D-16 class 7 w/3/4-16 fem swivel 37 deg flare jic

1шт.

13

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, C-Z hyd fld 5/8 to 1/2 sht

2шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

15

810830C1

HOSE

3/8 x 270 in, refer to hydraulics w/bolted or welded cylinders

1шт.

16

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 1/2 C-Z hyd fld short swivel, use w/149920C91, bolted

2шт.

17

149920C91

CYLINDER

ASSY, 3.5 x 8 DA master, IH

1шт.

18

812368C91

CYLINDER

ASSY, 3.5 x 8 DA master, Cessna, for components refer to hydraulic cylinder

1шт.

810751C1

PIN

1 x 3.50 std hd dld spcl

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

19

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90D, use w/812368C91, welded

2шт.

20

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.
