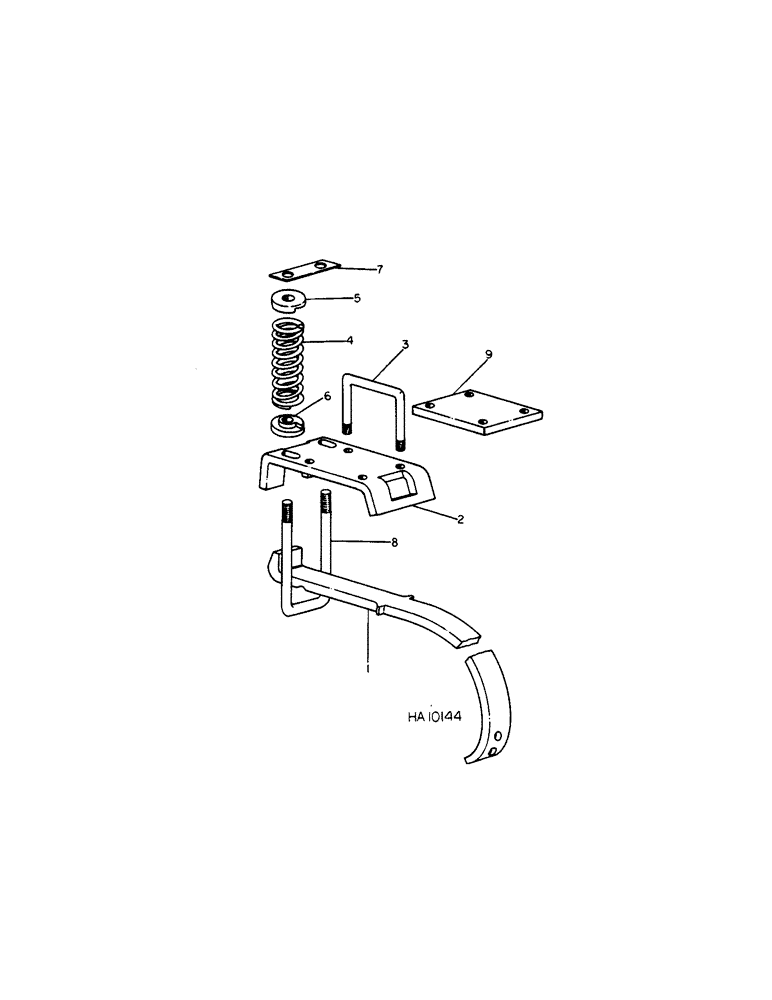

Запчасти Case IH 60 (A-18) - CUSHION CLAMP AND SHANK, 10 FOOT AND 13 FOOT, FOR 25 INCH TRASH CLEARANCE

1

608341R1

SHANK

tooth

1шт.

2

608346R1

BRACKET

clamping

1шт.

3

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

clamping bracket

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

608347R1

SPRING

cushion

2шт.

REF#4 608347R1 MEASURES 2.5 x 10.5 13 COILS

1шт.

5

608348R1

RETAINER

spring upper

2шт.

REF#5 609133R1 MEASURES 2.5 x 11.5 14 1/2 COILS

1шт.

6

608349R21

RETAINER

PACKAGE, spring lower seat service, includes 2 lower seats

1шт.

7

591755R1

STRIP

BAR, spirng tie

1шт.

8

602331R1

BOLT,U, 3/4" - 10 x 13.20"

U-BOLT, spring

1шт.

280954

NUT,3/4"-10, G5

2шт.

9

(Not used this application)

1шт.
