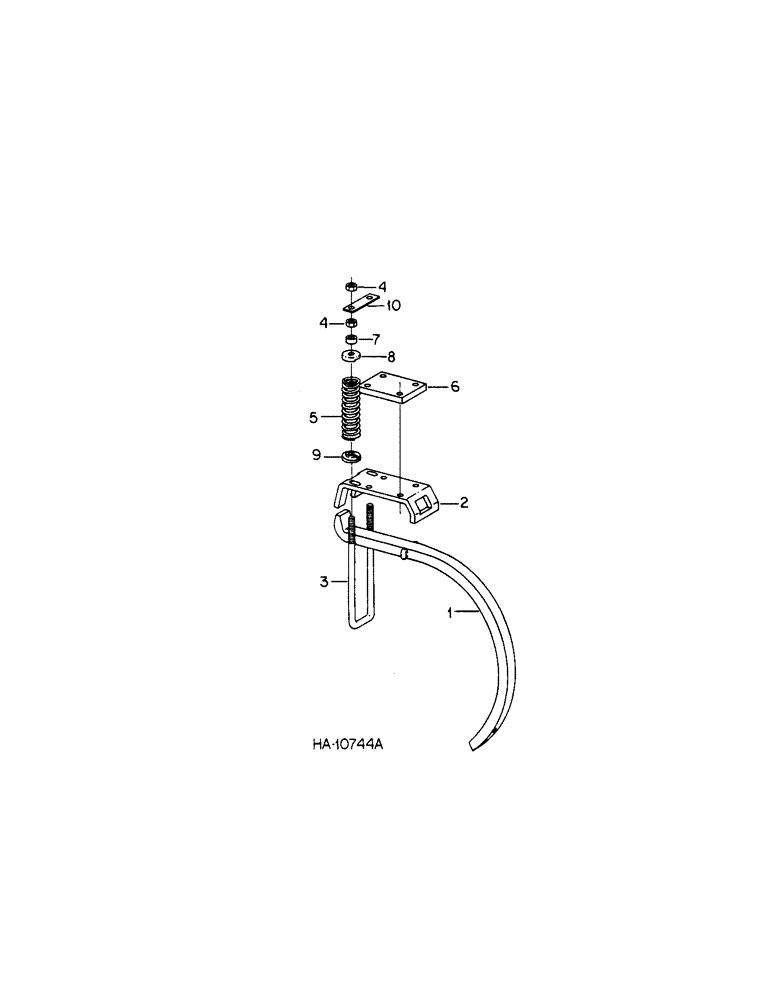

Запчасти Case IH 60 (A-18[A]) - CUSHION CLAMP AND SHANK, 15 FOOT

1

813487C1

POINT

SHANK, heavy duty 26.5 in.

1шт.

2

609131R1

BRACKET

clamping

1шт.

3

810873C1

BOLT (SPREADER),U, 3/4" - 10 x 15"

U-BOLT, spring

1шт.

4

280954

NUT,3/4"-10, G5

4шт.

5

609133R1

VALVE SPRING

SPRING, trip

2шт.

6

592239R1

BLOCK

shank clamping

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 type 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

7

810880C1

SPACER

spring

2шт.

8

608348R1

RETAINER

spring upper

2шт.

9

608349R21

RETAINER

PACKAGE, spring lower seat service, includes 2 lower seats

1шт.

10

591755R1

STRIP

BAR, spring tie

1шт.
