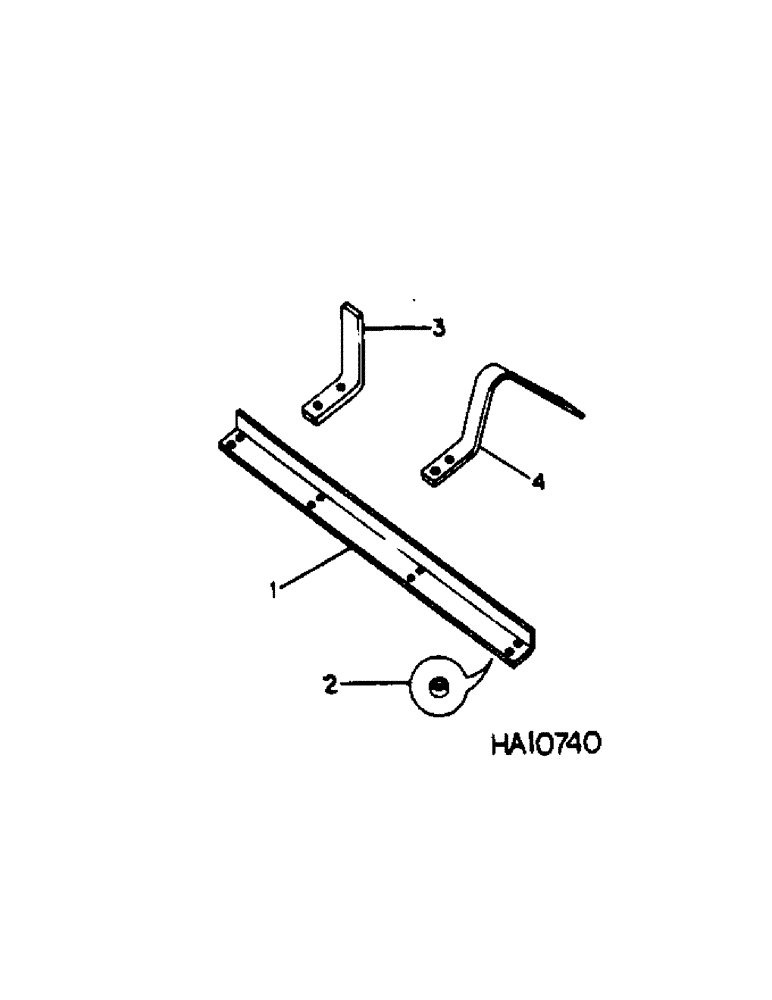

Запчасти Case IH 60 (A-17[A]) - TRASH BAR, 15 FOOT

1

810838C1

ANGLE

support LH

2шт.

REF#1 810838C1 AND 810839C1 HAS 8 HOLES AND MEASURES 750MM 11/15/96

1шт.

1

810839C1

ANGLE

support RH

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

16шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 cad p/t lock type 5

16шт.

20601R1

WASHER

.531 x 1.250 x .105

16шт.

2

810833C1

SPACER

support angle

16шт.

3

810801C1

ANGLE

trash bar

8шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

4

810800C1

SUPPORT

trash bar

8шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.
