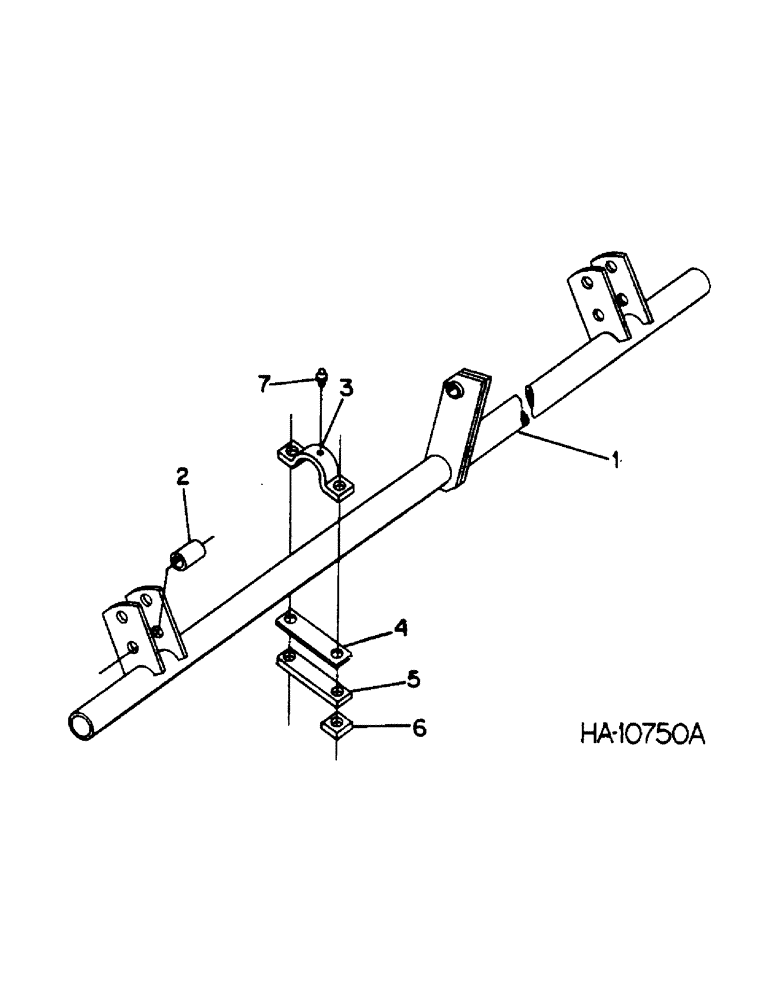

Запчасти Case IH 60 (A-11) - ROCKSHAFT, 15 FOOT

1

810811C1

ROCKSHAFT ASSY, disk gang, includes 8 - 812444C1, 8 - 810804C1, 8 - 180194, 8 - 120378, 8 - 120384

1шт.

2

810804C2

SPACER

lift bar

8шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

3

811038C1

CLAMP

rockshaft

8шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

2шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8 x 6-1/2 type 5

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

14шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

467750R1

WASHER

.781 x 1.500 x .105

4шт.

4

810829C1

BAR

spacer wear

8шт.

5

810860C1

BAR

spacer

2шт.

6

810866C1

BAR

spacer short

4шт.

7

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

8шт.
