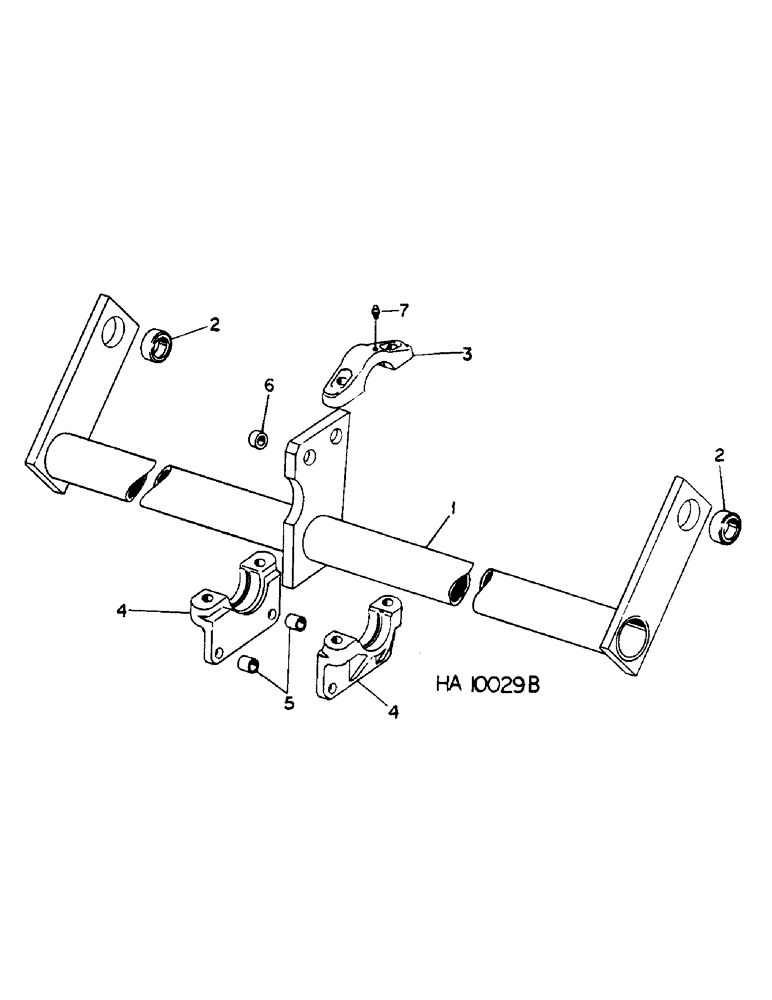

Запчасти Case IH 60 (A-10) - ROCKSHAFT UNIT, 10 AND 13 FOOT

1

813239C92

ROCKSHAFT

ASSY, 10 foot model

1шт.

1

810128C92

ROCKSHAFT

ASSY, 13 foot model, includes 2 bushing, 608310R1 & 1 bushing, 591525R1

1шт.

2

608310R1

BUSHING,32.38mm ID x 50.8mm OD x 25.4mm L

outer arm

2шт.

3

608311R1

CAP

rockshaft bracket

4шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

608312R2

BRACKET

rockshaft

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

4шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

5

5528S

SPACER

3/4 x .812 std pipe

2шт.

6

591525R1

BUSHING

inner arm

1шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.
