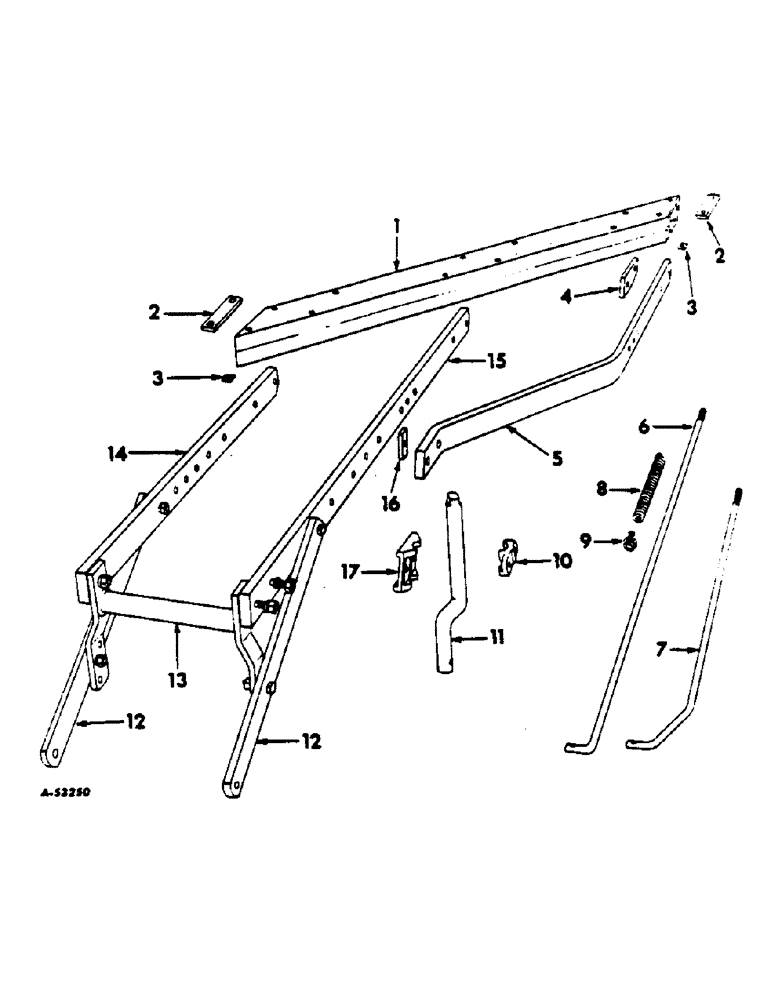

Запчасти Case IH 60 (C-02) - FRAME

1

525501R91

FRAME, 12 in. main, 2 furrow

1шт.

1

524480R91

FRAME

14 in. main, 2 furrow

1шт.

1

524481R91

FRAME

16 in. main, 2 furrow

1шт.

PO19297

BOLT, 5/8 x 5 crg H.T.

3шт.

5/8 NUT

3шт.

5/8 LOCK WASHER

3шт.

1

525498R91

FRAME, 12 in. main, 3/2 furrow

1шт.

1

524486R91

FRAME

14 in. main, 3/2 furrow

1шт.

1

524487R91

FRAME

16 in. main, 3/2 furrow

1шт.

PO19297

BOLT, 5/8 x 5 crg H.T.

6шт.

519724R2

BOLT, 5/8-11 x 5-1/2 crg

2шт.

5/8 LOCK WASHER

8шт.

5/8 NUT

8шт.

2

524469R1

STRAP, main frame reinforcing

2шт.

521530R1

BOLT, 5/8 x 5-3/4 crg H.T.

2шт.

5/8 LOCK WASHER

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

4шт.

5/8 NUT

4шт.

3

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit, 2 furrow

6шт.

3

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit, 3/2 furrow

9шт.

4

524465R1

SUPPORT

SPACER, frame rail, 2 furrow

2шт.

5/8 NUT

4шт.

5/8 x 3-1/4 CAP SCREW

4шт.

5/8 LOCK WASHER

4шт.

4

524465R1

SUPPORT

SPACER, frame rail, rigid & trip beam unit

2шт.

5/8 NUT

4шт.

5/8 x 3-1/4 CAP SCREW

4шт.

5/8 LOCK WASHER

4шт.

5

525483R2

RAIL, 12 in. frame offset, 3/2 furrow

1шт.

5

525484R2

RAIL, 14 in. frame offset, 3/2 furrow

1шт.

5

525485R2

RAIL, 16 in. frame offset, 3/2 furrow

1шт.

5/8 x 3-1/2 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

5/8 NUT

2шт.

6

525472R1

LINK, rear raising, 3/2 furrow

1шт.

7

525518R1

LINK, rear raising, 2 furrow

1шт.

218443

NUT

3/4 JAM NUT

2шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

25/32 x 1-1/2 x 11 GA WASHER

3шт.

8

13A

SPRING, lift rod cushion

1шт.

9

1431BX

COLLAR CLAMP

COLLAR, w/set screw, rear raising link

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

1/2 x 3/4 CUP-PT SQ-HD SCREW

1шт.

10

524492R1

CLAMP

CAP, colter clamp

1шт.

5/8 x 4-1/4 CAP SCREW

2шт.

5/8 NUT

2шт.

11

522434R1

STEM

SHANK, colter

1шт.

5/16 x 2-1/4 SELF-OPENING COT PIN

1шт.

12

525356R3

BAR, hitch attaching

2шт.

5/8 x 2-1/4 CAP SCREW

2шт.

5/8 x 2-3/4 CAP SCREW

2шт.

5/8 LOCK WASHER

4шт.

5/8 NUT

4шт.

13

525492R91

SPREADER, 12 in. frame rail

1шт.

13

525493R91

SPREADER, 14 in. frame rail

1шт.

13

525494R91

SPREADER, 16 in. frame rail

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

SCREW, 5/8 x 2-1/2 cap

2шт.

5/8 LOCK WASHER

2шт.

102639

NUT,5/8"-11, G5

2шт.

14

525478R1

RAIL, frame 1st

1шт.

15

525479R1

RAIL, frame 2nd

1шт.

16

525495R1

SPACER, frame offset rail, 3/2 furrow

1шт.

17

524456R3

CLAMP

colter shank

1шт.
