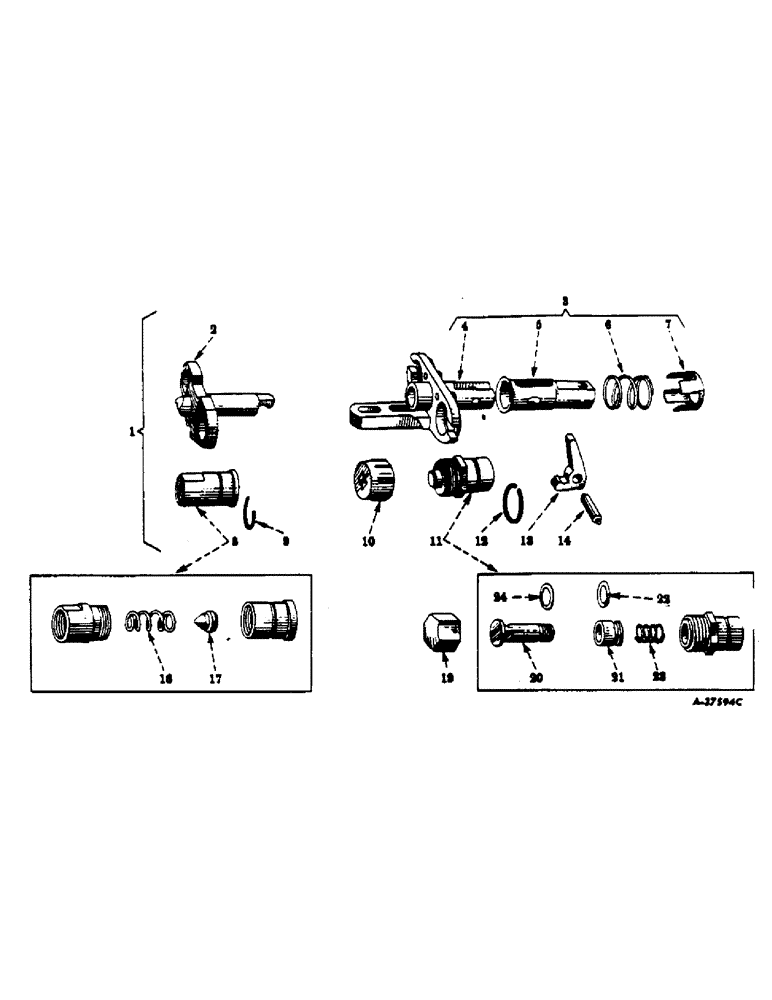

Запчасти Case IH 60 (C-28) - BREAK-AWAY COUPLING, TRACTOR WITH 1/2 IN. PIPE THREAD HYDRAULIC OUTLETS

364310R92

COUPLING

ASSY, break-away, order 385541R92 & two 388991R91

1шт.

1

353216R91

COUPLING

ASSY, rear section

1шт.

2

353220R1

FRAME, coupling rear

1шт.

3

364311R92

COUPLING & FRAME ASSY, front section

1шт.

3

364312R92

FRAME ASSY, coupling, composed for ref nos. 4 thru 7, 13 & 14

1шт.

4

364313R91

FRAME w/pins & snap rings, front

1шт.

5

353222R1

DRAWBAR, coupling frame

1шт.

6

353224R2

SPRING, frame latch

1шт.

7

353223R1

COVER, frame latch spring

1шт.

8

353218R91

COUPLING

ASSY, rear half

2шт.

9

353228R1

RING, coupling rear snap

2шт.

10

368710R1

CAP

front section dust

2шт.

11

353217R92

COUPLING

ASSY, front half

2шт.

12

353227R1

RING, coupling front snap, not used w/frame w/riveted hinged snap rings

2шт.

13

353225R1

LATCH, frame

1шт.

14

353226R1

PIN, frame latch

1шт.

15

(Not used this application)

1шт.

16

357128R1

SPRING

coupling valve

2шт.

17

357127R91

VALVE

ASSY, coupling poppet

2шт.

18

(Not used this application)

1шт.

19

357136R2

EXTRACTOR, coupling tubular valve

1шт.

20

357132R1

VALVE

tubular

2шт.

21

364250R91

BUSHING

SLEEVE ASSY, coupling insert

2шт.

22

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

tubular valve

2шт.

23

357135R1

SPRING

tubular valve

2шт.

24

368396R1

SEALING RING

WASHER, o-ring back-up

2шт.
