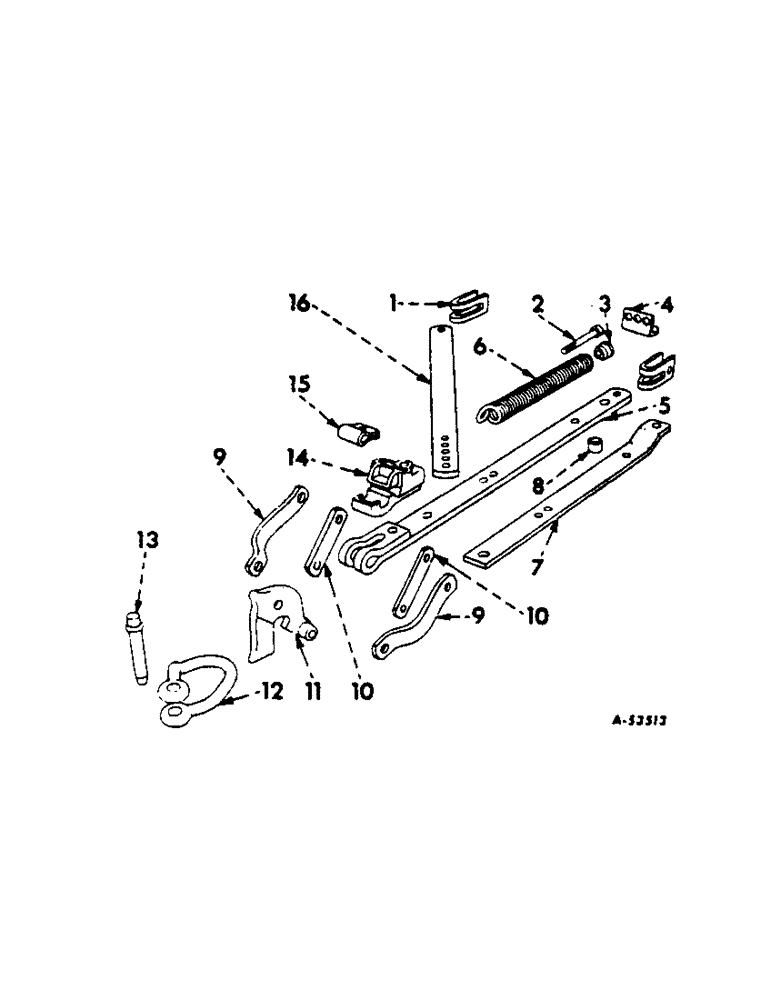

Запчасти Case IH 60 (C-19) - SPRING RELEASE HITCH

1

525411R1

CLEVIS, hitch rear

2шт.

18443R1

5/8 STOP NUT

2шт.

3/16 x 1 SELF-OPENING COT PIN

2шт.

5/8 x 2-11/16 HEADED PIN

2шт.

5/8 x 2-1/2 CAP SCREW

2шт.

21/32 x 1-1/4 x 11 GA WASHER

4шт.

2

SA5233

BOLT, trip spring

1шт.

3

SA1378A

PLUG

trip spring

1шт.

4

517086R1

BRACKET, trip spring

1шт.

1/2 x 3 CRG BOLT

1шт.

1/2 LOCK WASHER

1шт.

5

525511R1

DRAWBAR, straight

1шт.

5/8 NUT

2шт.

5/8 x 1-3/4 CAP SCREW

1шт.

5/8 x 2-3/4 CAP SCREW

1шт.

5/8 LOCK WASHER

2шт.

5

525511R11

DRAWBAR w/draft hook and spring

1шт.

6

M1430

VALVE SPRING

SPRING, trip

1шт.

7

525512R1

DRAWBAR, lower

1шт.

8

PO12482

SPACER,3/4" Pipe x 7/8"

drawbar rear

1шт.

9

PO16457

LINK, long toggle

2шт.

S4851

5/8 x 3-3/8, SPECIAL, HD PIN

2шт.

SA4852

5/8 x 4-1/8, SPECIAL, HD PIN

2шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

4шт.

10

PO16458

LINK, short toggle

2шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

2шт.

SA4851

AXLE PIN

5/8 x 3-3/8, SPECIAL, HD PIN

2шт.

11

PO16459A

HOOK, draft

1шт.

5/16 x 1-1/4 SELF-OPENING COT PIN

1шт.

SA3760

3/4 x 2-5/8, SPECIAL, HD PIN

1шт.

12

PO26667A

CLEVIS

hitch

1шт.

13

SA3420

PIN, hitch clevis

1шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

14

PO2423

BLOCK, hitch clevis

1шт.

5/8 NUT

2шт.

5/8 x 3 CRG BOLT

1шт.

5/8 x 3-3/4 CAP SCREW

1шт.

5/8 LOCK WASHER

2шт.

15

SA4864

ANCHOR, spring front

1шт.

16

525510R1

BRACE, drawbar diagonal

1шт.
