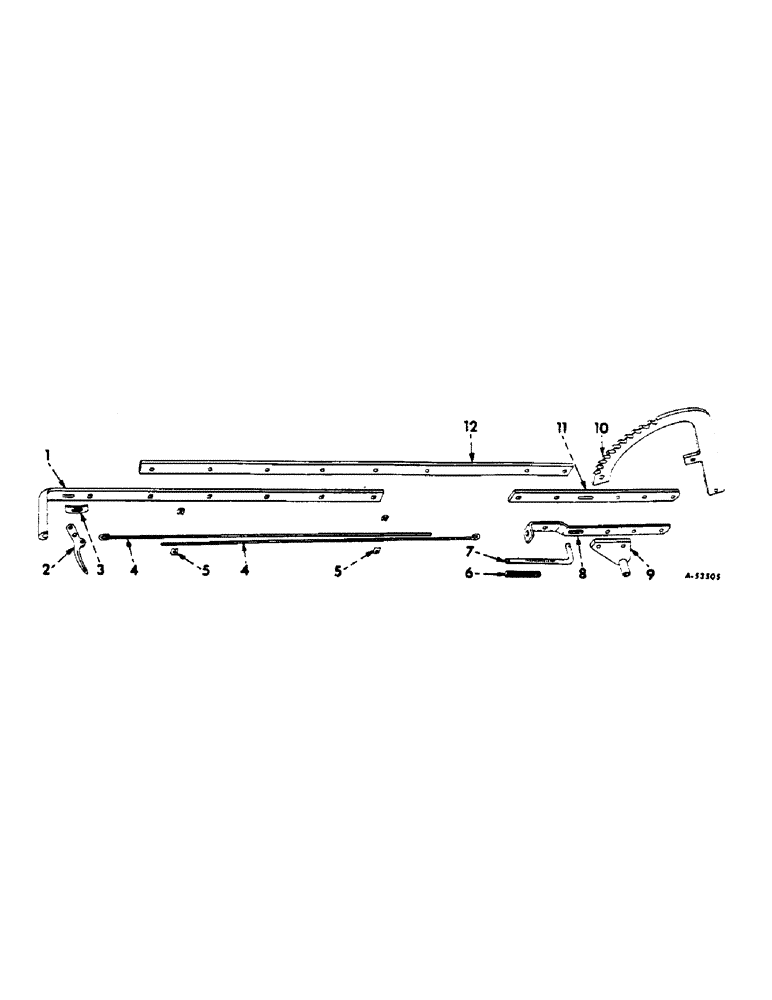

Запчасти Case IH 60 (C-17) - LEVELING LEVER

1

525253R1

EXTENSION, lever upper

1шт.

7/16 x 1-1/4 CRG BOLT

2шт.

7/16 NUT

2шт.

7/16 LOCK WASHER

2шт.

2

PO15296

HANDLE

LATCH, hand

1шт.

1/4 x 1 SELF-OPENING COT PIN

1шт.

3

PO18454

WASHER, hand latch rub

1шт.

4

PO23391

ROD

adjustable latch

1шт.

5

PO2193

CLAMP

latch rod

4шт.

1/4 x 3/4 CRG BOLT

2шт.

1/4 NUT

2шт.

1/4 LOCK WASHER

2шт.

6

PO4

VALVE SPRING

SPRING, lever spring bolt

1шт.

7

PO9641

LOCK ASSY

BOLT, lever spring

1шт.

3/16 x 1 SELF-OPENING COT PIN

2шт.

17/32 x 1-1/4 x 16 GA WASHER

1шт.

8

523795R1

GUIDE, spring bolt

1шт.

1/2 x 1-3/4 CRG BOLT

1шт.

1/2 LOCK WASHER

1шт.

1/2 NUT

1шт.

9

525383R91

ARM, leveling lever

1шт.

1/2 x 2 MACH BOLT

2шт.

526104R1

1/2 x 5-1/8 DLD-STD-HD PIN

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

1/2 LOCK WASHER

2шт.

10

525476R11

QUADRANT, leveling

1шт.

Q5137

AXLE PIN

1/2 x 1-3/8 DLD-STD-HD PIN

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

11

523774R1

LEVER, leveling

1шт.

1/2 x 1-1/2 CRG BOLT

1шт.

1/2 LOCK WASHER

3шт.

Q1270

1/2 x 1-9/16 DLD-STD-HD PIN

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

2шт.

1/2 x 2 CAP SCREW

2шт.

1/2 NUT

3шт.

12

525372R1

EXTENSION, lever lower

1шт.
