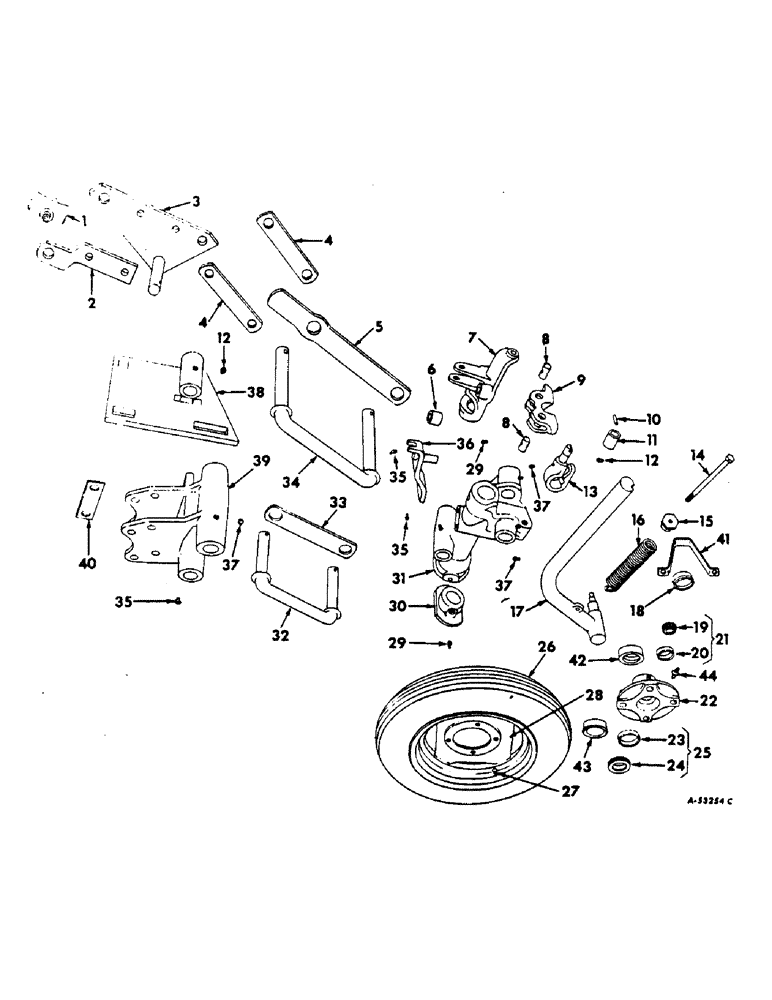

Запчасти Case IH 60 (C-14) - REAR FURROW WHEEL AND AXLE

1

518609R1

SWIVEL, bellcrank

1шт.

2

525284R1

STRAP, bellcrank hammer, Serial Range: 1958-1961

1шт.

.

7/16 x 1-1/2 HEX-HD MACH BOLT

2шт.

.

7/16 LOCK WASHER

2шт.

2

464834R1

STRAP, land axle arm hammer, 1961 up

1шт.

.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

2шт.

.

1/2 LOCK WASHER

2шт.

3

525281R21

BELLCRANK ASSY

1шт.

.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

1шт.

.

615227R1

WASHER

1-1/32 x 1-3/4 x 11 GA WASHER

1шт.

4

518679R1

STRAP, lift

2шт.

.

13095R1

PIN,1/4" x 1 1/4"

1/4 x 1-3/4 SELF-OPENING COT PIN

2шт.

.

PO20851

3/4 x 1-11/16 DLD-STD-HD PIN

2шт.

5

525283R2

LINK, upper stabilizer

1шт.

6

518648R1

SPACER

ROLLER, swivel

1шт.

7

525273R1

CLAMP

depth adjusting

1шт.

.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

.

1/2 x 3 HEX-HD CAP SCREW

2шт.

.

137655

5/8 x 3-3/4 CUP-PT SET SCREW

1шт.

.

1/2 LOCK WASHER

2шт.

.

Q5053

17/32 x 1 x 16 GA WASHER

2шт.

8

525279R1

NUT

locking clamp

2шт.

9

525274R1

CLAMP

axle, also lock

1шт.

10

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, , Bail clamp & lock stud 3/16" x 1", Slotted

1шт.

11

525288R1

SPACER

ROLLER, locking stud

1шт.

12

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub

2шт.

13

464667R1

STUD

bail clamp and lock, 1961 & up

1шт.

.

5/8 x 2 CAP SCREW

1шт.

.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, , ESNA 3/16" x 1", Slotted

1шт.

.

5/8 LOCK WASHER

1шт.

.

369936R1

WASHER

21/32 x 1-1/4 x 1.04 WASHER

1шт.

13

525272R1

STUD

CLAMP, bail, also lock stud, Serial Range: 1958-1961

1шт.

.

1/2 x 1-3/4 HEX-HD MACH BOLT

1шт.

14

518813R1

BOLT, spring adjusting

1шт.

.

7/16 NUT

1шт.

.

15/32 x 1-1/4 x 16 GA WASHER

1шт.

15

9470

PLUG, spring

1шт.

16

PO192

SPRING, 1-1/2 x 9-5/32 x 32-1/2

1шт.

17

525275R21

AXLE ASSY, rear furrow, Serial Range: 1958-1961

1шт.

17

467475R91

AXLE ASSY, rear furrow, Serial Range: 1961-1962

1шт.

17

472628R91

AXLE ASSY, rear furrow, 1963 & up

1шт.

.

69442D

NUT

3/4 UNF SLT-HEX-HD NUT

1шт.

.

1/8 x 1-1/4 COT PIN

1шт.

.

472634R1

WASHER

25/32 x 1-3/4 x 11 GA WASHER

1шт.

18

651194R1

CAP

wheel hub

1шт.

19

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, rear furrow wheel hub outer cone

1шт.

19

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

20

651814R1

BEARING CUP

BEARING, rear furrow wheel hub outer cup

1шт.

21

651816R91

BEARING ASSY,7.5" ID x 17.82" OD x 6"

BEARING ASSY, wheel hub outer, order 651814R1 and 651815R91

1шт.

22

461892R31

HUB w/bolts and cups, wheel, Serial Range: 1958-1962

1шт.

.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2 UNF x 1-5/8, special, bolt

4шт.

.

453770R1

WHEEL NUT

1/2 UNF NUT

4шт.

.

1/2 LOCK WASHER

1шт.

22

472220R11

HUB

ASSY, furrow wheel, 1963 up

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 UNF x 15/16 CONICAL-HD BOLT

4шт.

.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW, 1/2-20 x 1 hex-hd cap

4шт.

.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

23

651817R1

BEARING CUP

BEARING, rear furrow wheel hub inner cup

1шт.

24

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, rear furrow wheel hub inner cone, 1963 & up

1шт.

25

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

w/seal and cup, wheel hub inner, 1958 to 1962

1шт.

26

TIRE, 4 ply ribbed implement pneumatic 4.00 x 12

1шт.

27

TUBE, pneumatic, 4.00 x 12

1шт.

28

525585R92

WHEEL ASSY, 3.000 x 12

1шт.

29

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

2шт.

30

519768R1

BLOCK, axle adjusting

1шт.

31

525270R2

HOUSING, axle

1шт.

.

113036

V-BELT,225.00" L

1/2 x 2 CUP-PT-SQ-HD SET SCREW

2шт.

.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

32

525278R22

LINK ASSY, lower parallel

1шт.

.

13139R1

1/4 x 1-3/4 SELF-OPENING COT PIN

2шт.

.

Q162

WASHER

1-5/32 x 1-3/4 x 16 GA WASHER

1шт.

33

525287R2

CLIP, lower parallel link

1шт.

34

525277R22

LINK ASSY, upper parallel

1шт.

.

13158R1

5/16 x 2 SELF-OPENING COT PIN

2шт.

.

Q121

WASHER

1/9/32 x 2 x 16 GA WASHER

1шт.

35

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 x 67-1/2 elbow lub

3шт.

36

525282R11

BRACKET

ASSY, swivel roller

1шт.

.

7/16 x 7/8 CAP SCREW

2шт.

.

7/16 LOCK WASHER

2шт.

37

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

3шт.

38

527095R11

PLATE ASSY, rear bellcrank pivot, 1959 & up

1шт.

.

519724R2

5/8 x 5-1/2 CRG BOLT

3шт.

.

5/8 NUT

3шт.

.

5/8 LOCK WASHER

3шт.

39

527094R2

BRACKET, rear axle, 1959 & up

1шт.

.

5/8 NUT

2шт.

.

5/8 x 4-1/4 HEX-HD CAP SCREW

2шт.

.

5/8 LOCK WASHER

2шт.

40

527097R1

SHIM, rear axle bracket

1шт.

41

461849R1

RETAINER, hub cap

1шт.

42

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil, 1963 & up

1шт.

43

472633R1

BUSHING

SLEEVE, oil seal wear, 1963 & up

1шт.

44

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF str lub, 1963 & up

1шт.
