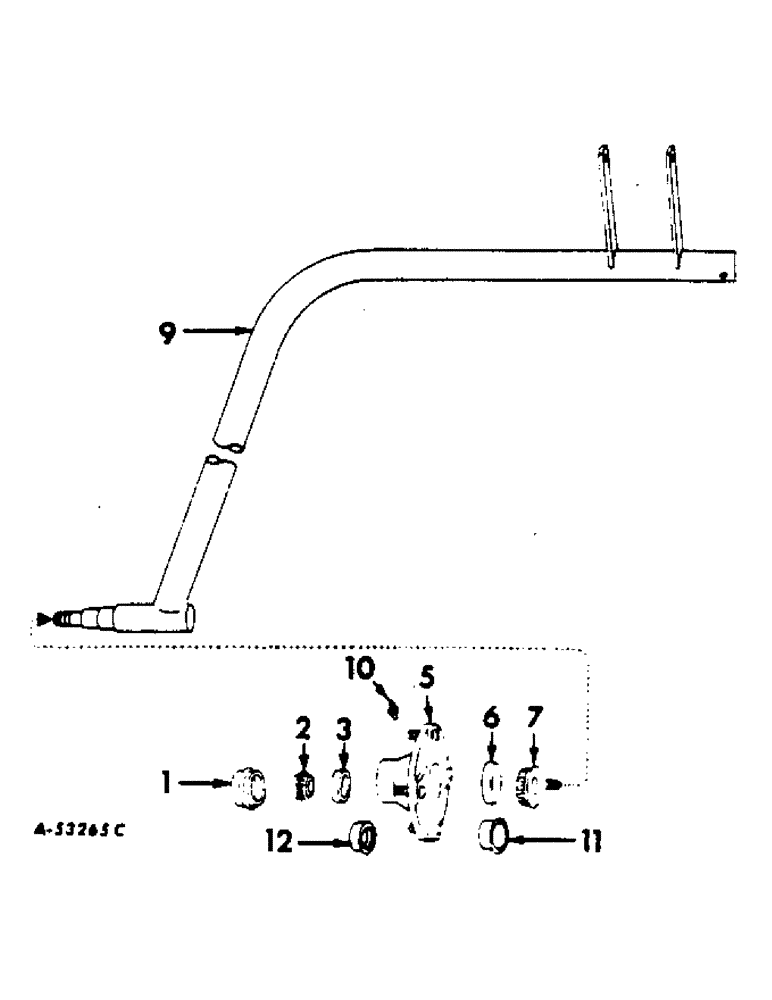

Запчасти Case IH 60 (C-13) - FURROW AXLE

1

651149R1

CAP, furrow wheel hub

1шт.

2

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, furrow wheel hub outer cone

1шт.

2

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

3

651814R1

BEARING CUP

BEARING, furrow wheel hub outer cup

1шт.

4

(Not used this application)

1шт.

5

461892R31

HUB w/bolts and cups, furrow wheel, Serial Range: 1958-1962

1шт.

.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2 UNF x 1-5/8, SPECIAL, BOLT

4шт.

.

453770R1

WHEEL NUT

1/2 UNF CONICAL NUT

4шт.

5

472220R11

HUB

W/SET SCREW, 1963 & up

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 x 15/16 CONICAL-HD BOLT

4шт.

6

651817R1

BEARING CUP

BEARING, furrow wheel hub inner cup

1шт.

7

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

w/seal, furrow wheel hub inner, 1958 to 1962

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, furrow wheel hub inner cone, 1963 & up

1шт.

8

(Not used this application)

1шт.

9

526887R91

AXLE, 12 in., 1-1/2 dia, 1958 to 1959, note A

1шт.

9

526888R91

AXLE, 14 in., 1-1/2 dia, 1958 to 1959, note A

1шт.

9

526889R91

AXLE, 16 in., 1-1/2 dia, 1958 to 1959, note A

1шт.

9

527044R11

AXLE, 12 in., 1-3/4 dia, 1959 to 1961, note B

1шт.

9

527045R11

AXLE, 14 in., 1-3/4 dia, 1959 to 1961, note B

1шт.

9

527046R11

AXLE, 16 in., 1-3/4 dia, 1959 to 1961, note B

1шт.

9

467489R91

AXLE, 12 in., 1-3/4 dia, 1960 & up, note B

1шт.

9

467490R92

AXLE, 14 in., 1-3/4 dia, 1960 & up, note B

1шт.

9

467491R92

AXLE, 16 in., 1-3/4 dia, 1960 & up, note B

1шт.

.

5/8 x 2-1/4 HEX-HD MACH BOLT

2шт.

.

69442D

NUT

3/4 UNF SLT NUT

1шт.

.

1/8 x 1-1/4 COT PIN

1шт.

.

13170R1

5/16 x 2 SELF-OPENING COT PIN 5/16" x 2 1/4"

1шт.

.

472634R1

WASHER

25/32 x 1-3/4 x 11 GA WASHER

1шт.

.

5/8 LOCK WASHER

2шт.

.

Q3488

WASHER

1-25/32 x 2-1/2 x 11 ga

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub, for wheel hub, 1963 & up

1шт.

11

472222R1

SLEEVE

oil seal wear, 1963 & up

1шт.

12

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil, 1963 & up

1шт.
