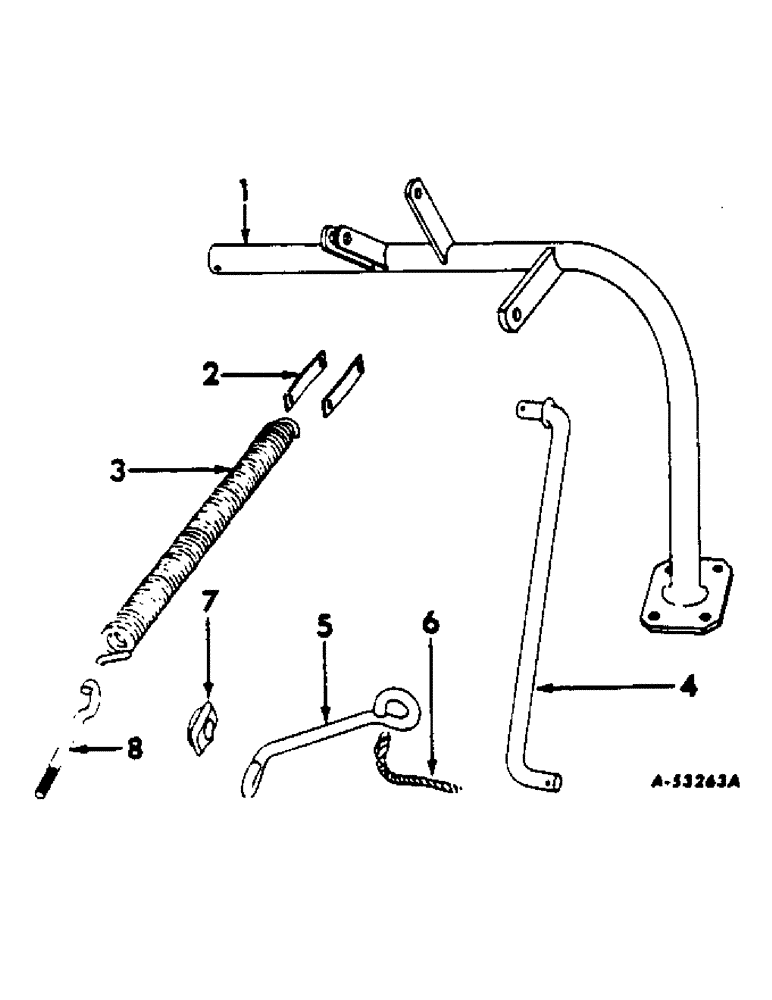

Запчасти Case IH 60 (C-12) - LAND AXLE AND PITMAN LINK

1

526893R91

AXLE, 12 in., 1-1/2 dia, 1958 to 1959, note A

1шт.

1

526894R91

AXLE, 14 in., 1-1/2 dia, 1958 to 1959, note A

1шт.

1

526895R91

AXLE, 16 in., 1-1/2 dia, 1958 to 1959, note A

1шт.

1

527051R11

AXLE, 12 in. land, 1-3/4 dia, 1959 & up, note B

1шт.

1

527052R11

AXLE, 14 in. land, 1-3/4 dia, 1959 & up, note B

1шт.

1

527053R11

AXLE, 16 in. land, 1-3/4 dia, 1959 & up, note B

1шт.

5/16 x 2-1/4 SELF-OPENING COT PIN

1шт.

1-25/32 x 2-1/4 x 11 GA WASHER

1шт.

2

PO25561

CLIP, raising spring

2шт.

16524B

HEADED PIN,7/16" x 1 1/4"

7/16 x 1-1/4 DLD-STD-HD PIN

1шт.

3/16 x 1 SELF-OPENING COT PIN

1шт.

3

PO107

SPRING, raising

1шт.

4

525416R11

LINK, pitman

1шт.

1/4 x 1-1/2 SELF-OPENING COT PIN

1шт.

29/32 x 1-1/4 x 16 GA WASHER

2шт.

5

518652R1

GUIDE, trip rope

1шт.

5/8 x 4-1/4 MACH BOLT

1шт.

5/8 LOCK WASHER

1шт.

21/32 x 1-1/4 x 11 GA WASHER

1шт.

6

ROPE, trip, 3/8 x 150 sisal, purchase locally

1шт.

7

7466

WASHER

SPACER, rope guide

1шт.

8

525428R1

EYEBOLT, raising spring

1шт.

1/2 NUT

1шт.

525495R1

SPACER, offset frame rail, for 2 & 2/3 furrow plows

1шт.

5/8 x 2-3/4 MACH BOLT

1шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

1шт.
