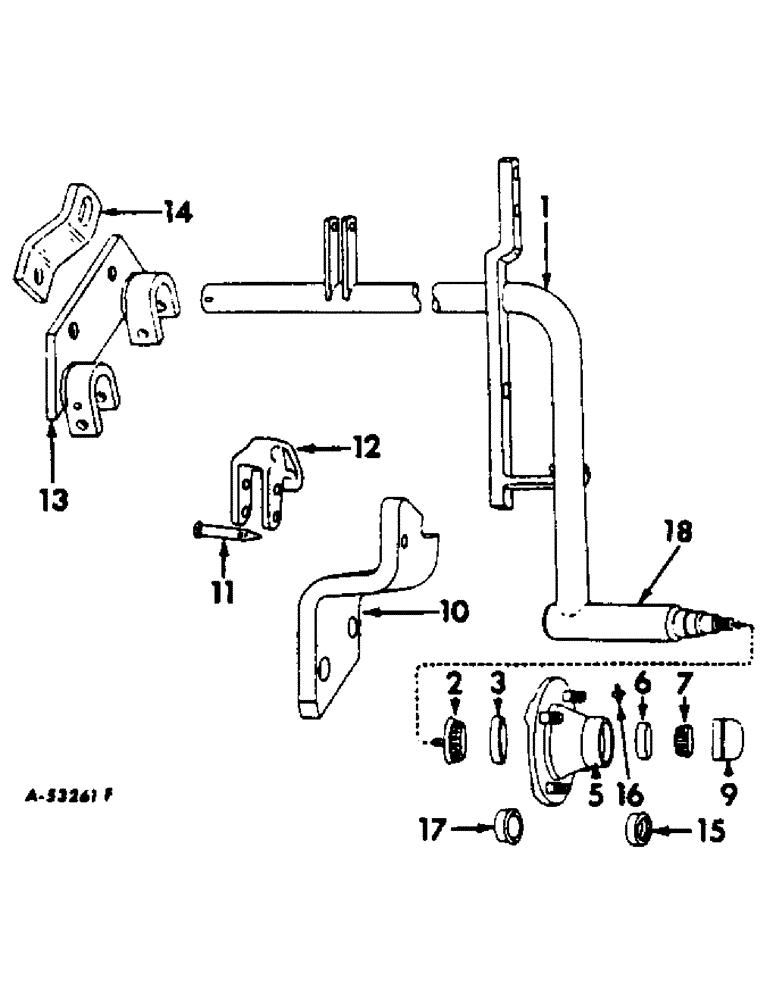

Запчасти Case IH 60 (C-11) - LAND AXLE AND CYLINDER SUPPORT

1

526890R91

AXLE, 12 in., 1-1/2 dia, 1958 to 1959, note A

1шт.

1

526891R91

AXLE, 14 in., 1-1/2 dia, 1958 to 1959, note A

1шт.

1

526892R91

AXLE, 16 in., 1-1/2 dia, 1958 to 1959, note A

1шт.

1

527048R11

AXLE, 12 in., 1-3/4 dia, 1959 to 1961, note B

1шт.

1

527049R11

AXLE, 14 in., 1-3/4 dia, 1959 to 1961, note B

1шт.

1

527050R11

AXLE, 16 in., 1-3/4 dia, 1959 to 1961, note B

1шт.

1

467494R91

AXLE, 12 in., 1-3/4 dia, 1961 & up, note B

1шт.

1

467495R92

AXLE, 14 in., 1-3/4 in. dia, 1961 & up, note B

1шт.

1

467496R92

AXLE, 16 in., 1-3/4 dia, 1961 & up, note B

1шт.

.

5/8 x 2/4 HEX-HD MACH BOLT

1шт.

.

69442D

NUT

3/4-16 UNF SLT NUT

1шт.

.

1/8 x 1-1/4 COT PIN

1шт.

.

17170R1

PIN, 5/16 x 2-1/4 self-opening cot

1шт.

.

5/8 LOCK WASHER

1шт.

.

472634R1

WASHER

23/32 x 1-3/4 x 11 GA WASHER

1шт.

.

Q3488

WASHER

1-25/32 x 2-1/2 x 11 ga

1шт.

2

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

w/seal, land wheel hub inner cone, 1958 to 1962

1шт.

2

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, land wheel hub inner cone, 1963 & up

1шт.

3

651817R1

BEARING CUP

BEARING, land wheel hub inner cup

1шт.

4

(Not used this application)

1шт.

5

652381R91

HUB

w/bolts and cups, Serial Range: 1958-1961

1шт.

5

461892R31

HUB, w/bolts and cups, Serial Range: 1961-1962

1шт.

.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2 UNF x 1-5/8, SPECIAL BOLT

4шт.

.

453770R1

WHEEL NUT

1/2 UNF CONICAL NUT

4шт.

5

472220R11

HUB

W/SET SCREW, 1962 & up

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 x 15/16 CONICAL-HD BOLT

4шт.

6

651814R1

BEARING CUP

BEARING, land wheel hub outer cup

1шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, land wheel hub outer cone

1шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

8

(not used this application)

1шт.

9

651194R1

CAP

land wheel hub

1шт.

10

525508R1

BRACKET, cylinder anchor

1шт.

.

5/8 NUT

2шт.

.

5/8 x 2-3/4 CAP SCREW

1шт.

.

5/8 x 3-1/4 CAP SCREW

1шт.

.

5/8 LOCK WASHER

2шт.

11

512683R1

PIN

transport, 5/8 x 2-5/8 pointed, 1958

1шт.

11

520277R1

PIN

transport, 5/8 x 2-13/16 pointed, 1959 & up

1шт.

.

520175R1

CLIP

QUICK-ATTACHABLE COT PIN

1шт.

12

523736R1

RETAINER

cylinder bracket pin, order retainer, 526263R1 and pin, 520277R1

1шт.

12

526263R1

RETAINER

cylinder bracket pin

1шт.

.

13068R1

PIN,3/16" x 1"

3/16 x 2-1/4 self-opening cot

1шт.

.

3490B

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 headed stud

1шт.

13

527054R11

PLATE, axle bearing

1шт.

.

17552R1

5/8 x 2-1/4 HEX-HD MACH BOLT, 1ST RAIL

2шт.

.

17604R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 3/4", G2

5/8 x 2-3/4 HEX-HD MACH BOLT, 2ND RAIL, 2 FURROW

2шт.

.

17604R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 3/4", G2

5/8 x 2-3/4 HEX-HD MACH BOLT, 2ND RAIL, 3/2 FURROW

1шт.

.

17677R1

BOLT (SPREADER),Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/4 HEX-HD MACH BOLT, OFFSET RAIL, 3/2 FURROW

1шт.

.

5/8 NUT

4шт.

.

5/8 LOCK WASHER

4шт.

14

525481R1

STRAP, lockout

1шт.

15

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil, 1963 & up

1шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub, for wheel hub, 1963 & up

1шт.

17

472222R1

SLEEVE

oil seal wear, 1963 & up

1шт.

18

466767R2

SPINDLE

1шт.

.

472634R1

WASHER

25/32 x 1-3/4 x 11 ga

1шт.

.

69442D

NUT

3/4 unf slt

1шт.

.

525495R1

SPACER, offset frame rail, for 2 & 2/3 furrow plows

11шт.

.

5/8 x 2-3/4 MACH BOLT

1шт.

.

5/8 NUT

1шт.

.

5/8 LOCK WASHER

1шт.
