(44.100.01) - Q633 HUB AND SPINDLE ASSEMBLY

Запчасти Case IH 58C SERIES (44.100.01) - Q633 HUB AND SPINDLE ASSEMBLY (44) - WHEELS

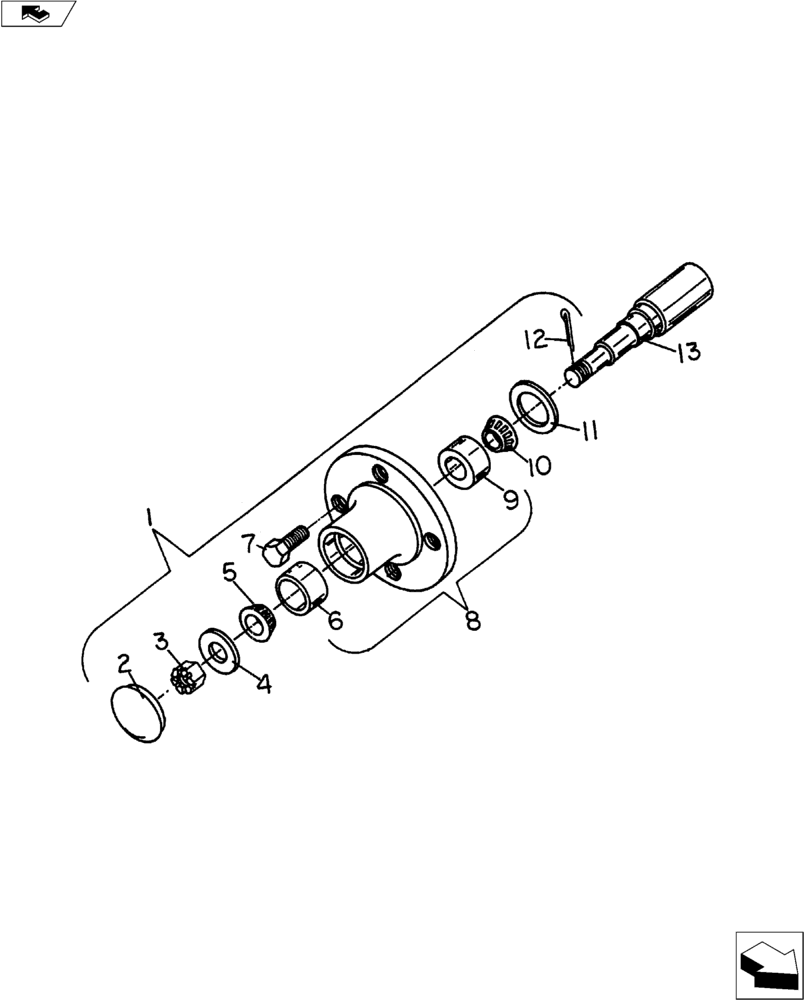

Схема запчастей Case IH 58C SERIES - (44.100.01) - Q633 HUB AND SPINDLE ASSEMBLY (44) - WHEELS
2
1
10
6
11
5
3
12
4
7
9
8
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

28163300

HUB ASSY.

1шт.

2

28463300

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

3/4" NF Slotted Nut

1шт.

4

NSS

NOT SOLD SEPARAT

3/4" SAE Washer

1шт.

5

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

0.750 Timken LM11949

1шт.

5

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

6

651814R1

BEARING CUP

1.78 O.D Timken LM11910

1шт.

7

16408052

SPECIAL BOLT

1/2" x 1-1/4" NF Lug

4шт.

8

28263300

HUB

w/Bearing Cups

1шт.

9

651817R1

BEARING CUP

2.330 O.D Timken LM67010

1шт.

10

65181R91

1.250 Bore Timken LM67048

1шт.

11

126621C1

SEAL

1.50 ID x 2.33 OD x .41 Thk. Chicago Rawhide 14975

1шт.

12

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Lg. Cotter Pin

1шт.

13

28363311

AXLE

Q-633 Spindle Only

1шт.
