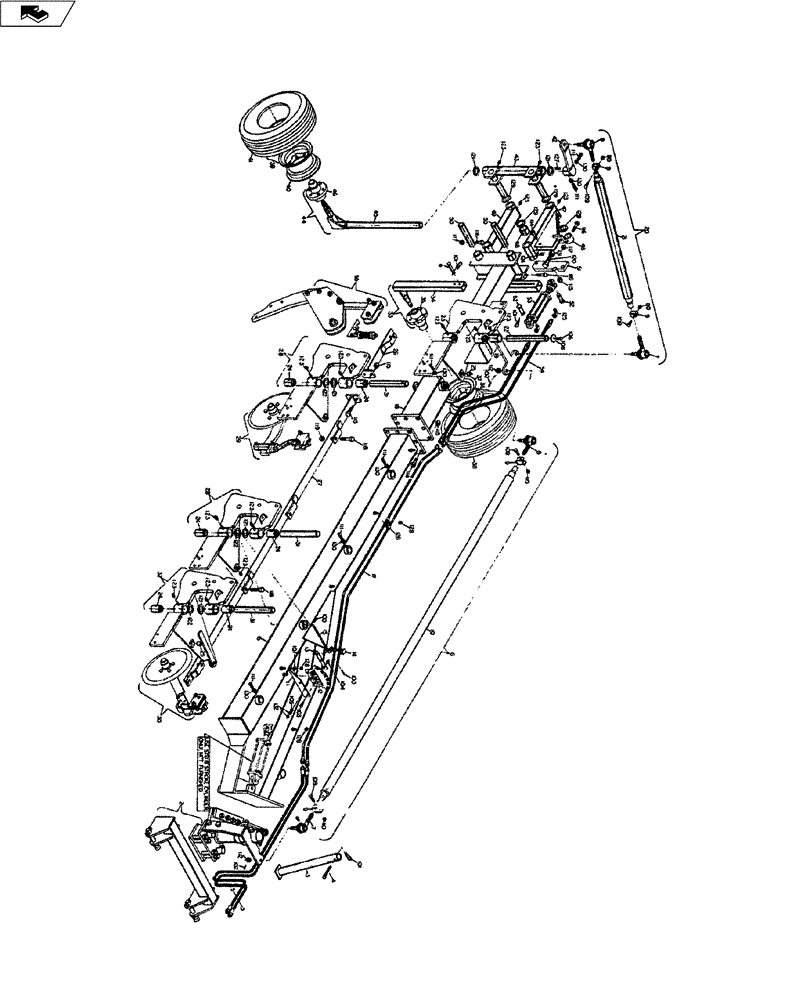

Запчасти Case IH 58C SERIES (39.100.01) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

4-Bottom Plow Complete

1шт.

1

NSS

NOT SOLD SEPARAT

5-Bottom Plow Complete

1шт.

1

NSS

NOT SOLD SEPARAT

6-Bottom Plow Complete For 1 & 2 Bottom Extensions

1шт.

1

NSS

NOT SOLD SEPARAT

7-Bottom Plow Complete For 1 & 2 Bottom Extensions

1шт.

2

NSS

NOT SOLD SEPARAT

Front Hitch Assy.

1шт.

3

49430000

4-Bottom

1шт.

3

49530000

5-Bottom

1шт.

4

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" Dia. Clevis x 3-3/4" Lg.

2шт.

5

25600672

3/8" Hyd. x 72" Lg.

2шт.

6

49450000

4-Bottom 136" Lg.

1шт.

6

49550000

5-Bottom 172" Lg.

1шт.

6

49650000

6-Bottom 208" Lg.

1шт.

6

49750000

7-Bottom 245" Lg.

1шт.

7

32729000

TIE-ROD

RH End

2шт.

8

32729001

TIE-ROD

LH End

2шт.

9

32739000

Tie Rod

4шт.

10

49451000

4-Bottom

1шт.

10

49551000

5-Bottom

1шт.

10

49651000

6-Bottom

1шт.

10

49751000

7-Bottom

1шт.

11

49537000

1шт.

12

30010000

1шт.

13

49541000

1шт.

14

49533000

1шт.

15

49535000

1шт.

16

49405000

4-Bottom

1шт.

16

49505000

5-Bottom

1шт.

17

25653704

Hyd. Line for 4-Bottom Main Frame 105" Lg.

1шт.

17

25653705

Hyd. Line for 5-Bottom Main Frame 143" Lg.

1шт.

18

49506000

1шт.

19

49521000

1шт.

20

49531000

1шт.

21

49542000

1шт.

22

49536000

1шт.

23

49303000

Includes Ref. 24 & 25

1шт.

24

44021320

Bronze 2-1/8" ID x 3-1/2" Lg.

10шт.

25

44008830

BUSHING,22.38mm ID x 26.72mm OD x 38.1mm L

Bronze 7/8" ID x 1-1/2" Lg.

2шт.

26

49508000

1шт.

27

49407000

4-Bottom Main Frame

1шт.

27

49507000

1шт.

28

49302000

Includes Ref. 24

3шт.

29

49109000

4шт.

29

49324000

4шт.

30

49110000

1шт.

30

49320000

1шт.

31

49535000

17" Lg.

4шт.

32

49301000

Includes Ref. 24 & 25

1шт.

33

49515000

WHEEL,Assy, Gauge

Gauge Spindle Arm Assy.

1шт.

34

49568000

1шт.

35

28170900

HUB ASSY.

Q-709

1шт.

36

NSS

NOT SOLD SEPARAT

Tire & Wheel Assembly 9.5L x 15

1шт.

37

10110174

WHEEL

15 x 10 Lb 8-Bolt

1шт.

38

NSS

NOT SOLD SEPARAT

9.5L x 15 6-Ply Tire

1шт.

39

NSS

NOT SOLD SEPARAT

Tire & Wheel Assembly 12.5L

1шт.

40

10110154

WHEEL

10 x 15 6-Bolt

1шт.

41

NSS

NOT SOLD SEPARAT

12.5L x 15 6-Ply Tire

1шт.

42

49518000

1шт.

43

49307000

1шт.

44

49309000

1шт.

45

49310000

1шт.

46

28180300

HUB ASSY.

Q-803 Spindle

1шт.

47

49305000

Upper Tail

1шт.

48

49308000

2шт.

49

49306000

1шт.

50

49304000

2шт.

51

49522000

1шт.

52

14816261

CLEVIS

1 Pin x 3-1/4" Lg.

2шт.

53

25025080

HYDRAULIC CYLINDER

2-1/2" Bore x 8 Stroke

1шт.

53

25030080

HYDRAULIC CYLINDER

3" Bore x 8" Stroke

1шт.

54

25600660

3/8" Hyd. x 60" Lg.

2шт.

55

NSS

NOT SOLD SEPARAT

Spring Trip Shank Assembly

5шт.

100

NSS

NOT SOLD SEPARAT

1/16" Dia. Cotter Pin x 1/2" Lg.

2шт.

101

NSS

NOT SOLD SEPARAT

1/8" Dia. Hair Pin x 2 Lg. 11

4шт.

102

NSS

NOT SOLD SEPARAT

5/32" Dia. Cotter Pin-xl-1/2" Lg.

4шт.

103

NSS

NOT SOLD SEPARAT

1/14 " x 1" NC Hex. Bolt

2шт.

104

NSS

NOT SOLD SEPARAT

1/4" x 1" NC Hex. Lock Nut

2шт.

105

NSS

NOT SOLD SEPARAT

1/4" Std. Flat Washer

1шт.

106

NSS

NOT SOLD SEPARAT

3/8" x 3/4" NC Hex. Bolt

1шт.

107

NSS

NOT SOLD SEPARAT

5/16" Std. Flat Washer

2шт.

108

17407030

3/8"

1шт.

109

16007080

7/16" x 2 NC Hex.

4шт.

110

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

4шт.

111

16810064

SET SCREW

5/8" x 1-1/2" NC Sq. Head Cup Point

7шт.

112

425-1310

SLOTTED NUT,5/8"-18, G5

NF Hex.

4шт.

113

16012080

3/4" x 2" NC Hex.

2шт.

114

16012104

BOLT

3/4" x 2-12" NC Hex. Gd. 5

11шт.

115

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

13шт.

116

16008134

BOLT

1/2" x 3-1/4" NC Hex. Gd. 5

4шт.

117

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

4шт.

118

NSS

NOT SOLD SEPARAT

7/8" x 4-1/2" NC Hex. Bolt

5шт.

119

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

5шт.

120

NSS

NOT SOLD SEPARAT

1" x 3" NC Hex. Bolt Gd. 5

1шт.

121

17634051

2-1/8" Machinery 10 Ga.

7шт.

122

17634010

BUSHING

2-1/8" Machinery 14 Ga.

10шт.

123

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk Self Tapping

24шт.

124

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk 22-1/2"

2шт.

125

NSS

NOT SOLD SEPARAT

3/8" NPT 90 Street Elbow

2шт.

126

22530801

1/2"

10шт.

127

NSS

NOT SOLD SEPARAT

3/8" Square Key x 3" Lg.

1шт.

128

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

7шт.

129

17632020

BUSHING

2" Machinery

4шт.

130

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

12шт.

131

NSS

NOT SOLD SEPARAT

1" NC Hex. Nut

1шт.

132

NSS

NOT SOLD SEPARAT

1/4" NC Hex. Nut

2шт.
