(35.100.02) - HYDRAULIC CYLINDER ASSEMBLY

Запчасти Case IH 58C SERIES (35.100.02) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

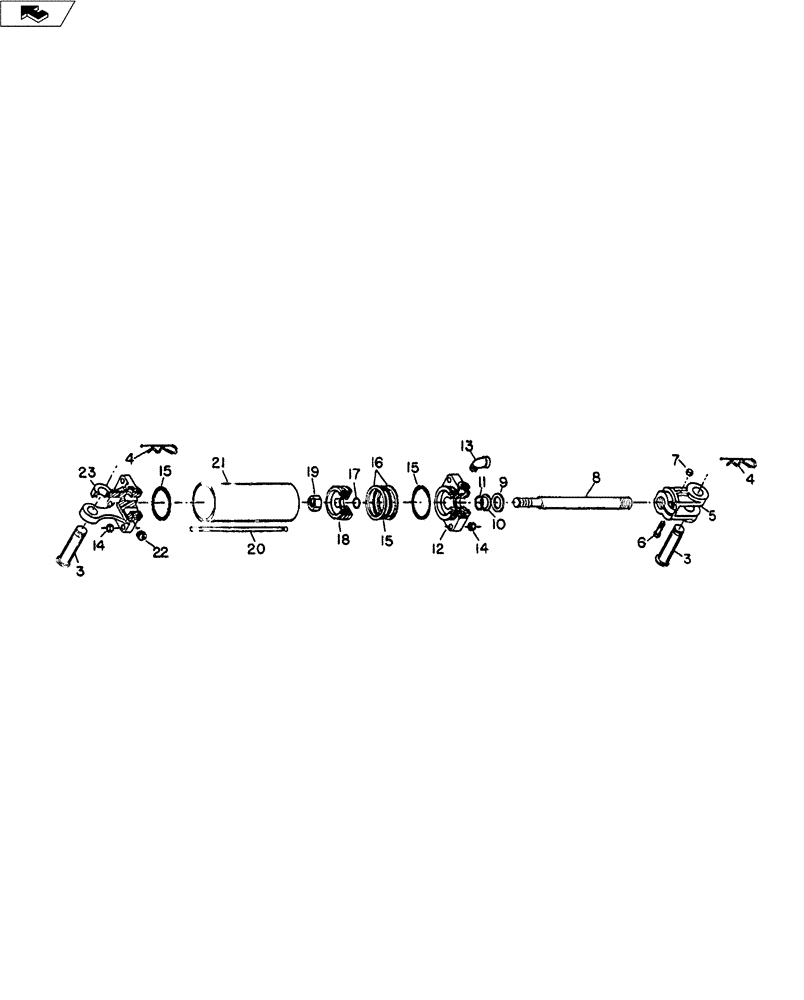

Схема запчастей Case IH 58C SERIES - (35.100.02) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS
4
14
11
10
15
12
18
3
8z
6z
4
15
9
15
19
23
13
16
3
14
5
7
17
20
21
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25030080

HYDRAULIC CYLINDER

3" Dia. x 8" (Not Shown)

1шт.

2

25803007

KIT

Seal 3" Dia. 1-1/4" Rod (Not Shown)

1шт.

3

14816261

CLEVIS

1" x 3-1/4" EL Pin

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" Hair Pin

2шт.

5

25803001

SHAFT

Cylinder Rod Clevis Only

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

8

25802503

1-1/4" Dia.

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Back-Up Washer

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

25803002

1шт.

13

NSS

NOT SOLD SEPARAT

3/8" St. Elbow 90

2шт.

14

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

8шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

16

NSS

NOT SOLD SEPARAT

Back-Up Seal

2шт.

17

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

18

25803003

SHAFT

Piston

1шт.

19

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

1шт.

20

25803004

THREADED TIE-ROD

4шт.

21

25803005

BARREL

Cylinder 3" Dia.

1шт.

22

NSS

NOT SOLD SEPARAT

3/8" NPT Pipe Plug

1шт.

23

25803006

YOKE

Cylinder Butt End Only

1шт.
