(35.100.01) - HYDRAULIC CYLINDER ASSEMBLY

Запчасти Case IH 58C SERIES (35.100.01) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

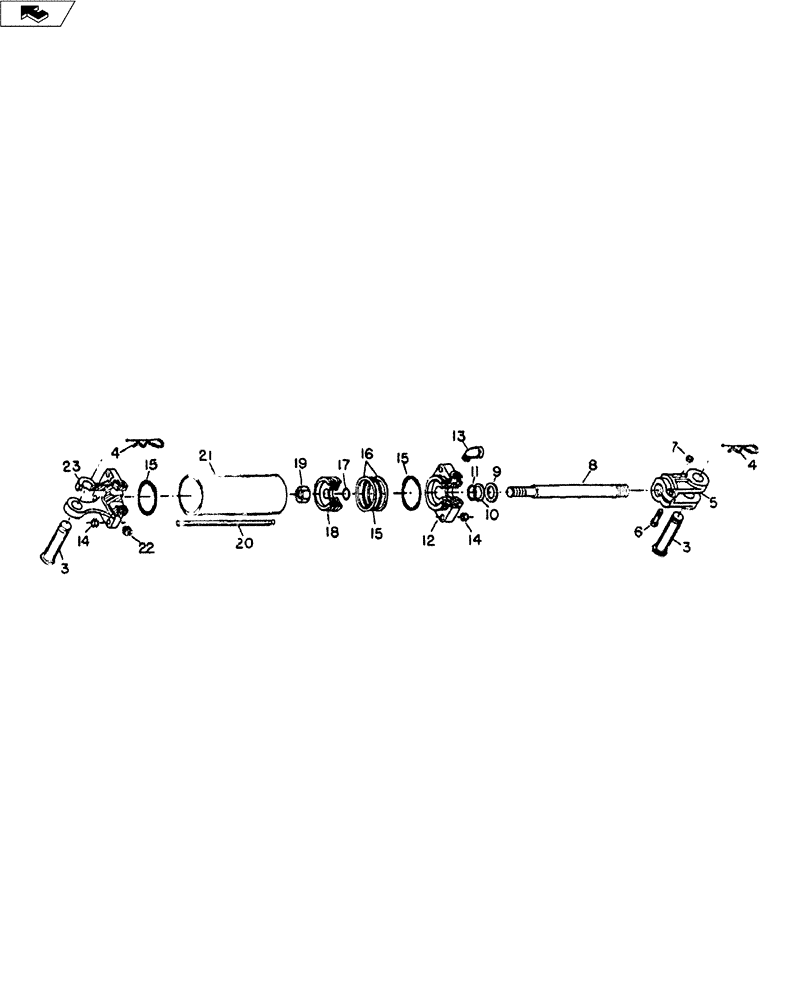

Схема запчастей Case IH 58C SERIES - (35.100.01) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS
5
23
4
15
6
21
19
14
9
15
4
12
17
18
14
8
16
11
7
13
15
22
3
3
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25025080

HYDRAULIC CYLINDER

2-1/2" x 8" (Not Shown)

1шт.

2

25802509

KIT

Seal 2-1/2" w/1-1/16 Rod (Not Shown)

1шт.

3

14816261

CLEVIS

1" x 3-1/4" EL Pin

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" Hair Pin

2шт.

5

25802501

SHAFT

Cylinder Rod Clevis

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-1/2" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25802502

1-1/6"

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Back-Up Washer

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

25802512

Rod End for 1-1/16 Rod

1шт.

13

NSS

NOT SOLD SEPARAT

3/8" NPT Street Elbow 90

2шт.

14

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

8шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

16

NSS

NOT SOLD SEPARAT

Back-Up Seal

2шт.

17

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

18

25802514

SHAFT

2-1/2" Dia.

1шт.

19

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

1шт.

20

25802506

4шт.

21

25802507

BARREL

Cylinder 2-1/2" Bore

1шт.

22

NSS

NOT SOLD SEPARAT

3/8" NPT Pipe Plug

1шт.

23

25802515

1шт.
