Запчасти Case IH 58C SERIES (75.200.06) - PLOW BOTTOMS (75) - SOIL PREPARATION

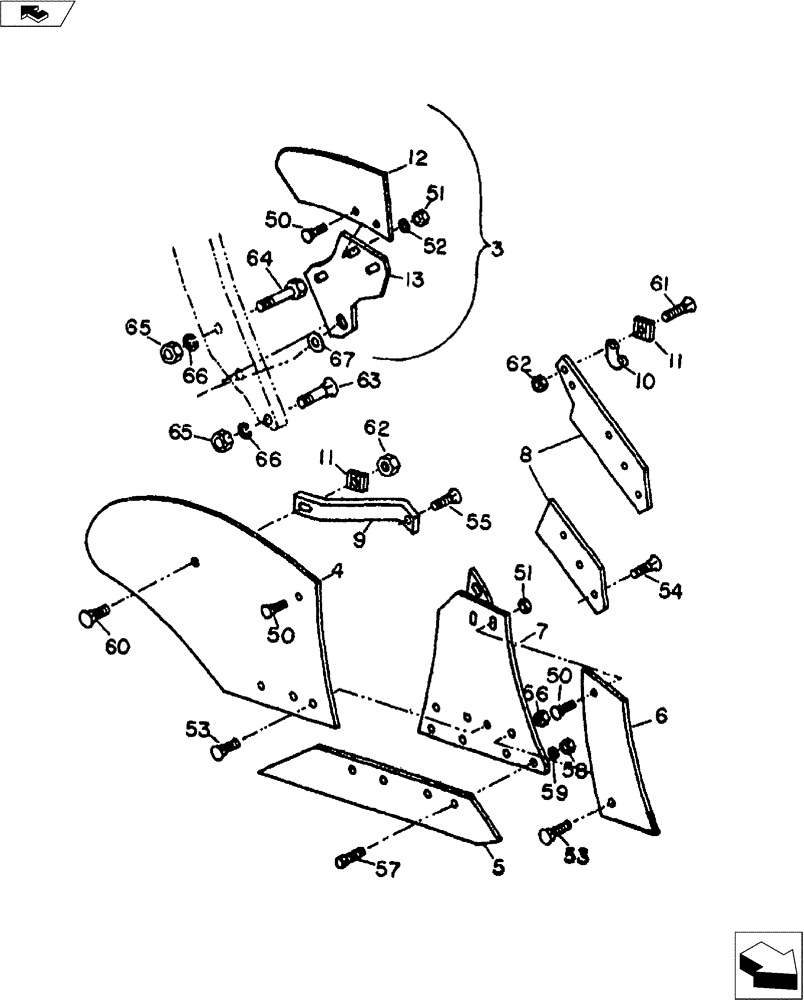

Схема запчастей Case IH 58C SERIES - (75.200.06) - PLOW BOTTOMS (75) - SOIL PREPARATION
53
60
50
3
65
10
11
63
4
50
66
62
51
59
13
5
12
54
8
52
62
6
51
57
58
53
9
67
65
50
66
55
61
64
11
7
56

Артикул

Название

Примечание

Количество

1

NLS

NO LONGER SERVICED

16" Plow Bottom W/16" Shares Short Landslide Comp. Assy.

1шт.

1

NLS

NO LONGER SERVICED

18" Plow Bottom W/16" Shares Short Landslide Comp. Assy.

1шт.

2

NLS

NO LONGER SERVICED

16" Plow Bottom W/16" Shares Long Landslide Comp. Assy.

1шт.

2

NLS

NO LONGER SERVICED

18" Plow Bottom W/16" Shares Long Landslide Comp. Assy.

1шт.

3

NLS

NO LONGER SERVICED

1шт.

3

NLS

NO LONGER SERVICED

1шт.

4

NLS

NO LONGER SERVICED

1шт.

4

NLS

NO LONGER SERVICED

1шт.

5

NLS

NO LONGER SERVICED

1шт.

5

NLS

NO LONGER SERVICED

1шт.

6

NLS

NO LONGER SERVICED

1шт.

6

NLS

NO LONGER SERVICED

1шт.

7

NLS

NO LONGER SERVICED

1шт.

7

NLS

NO LONGER SERVICED

1шт.

8

NLS

NO LONGER SERVICED

1шт.

8

NLS

NO LONGER SERVICED

1шт.

9

NLS

NO LONGER SERVICED

1шт.

9

NLS

NO LONGER SERVICED

1шт.

9

NLS

NO LONGER SERVICED

1шт.

10

NLS

NO LONGER SERVICED

(Used W/Long Landslide)

1шт.

11

NLS

NO LONGER SERVICED

1/2"

1шт.

12

NLS

NO LONGER SERVICED

1шт.

13

NLS

NO LONGER SERVICED

1шт.

13

NLS

NO LONGER SERVICED

1шт.

50

16206050

PLOW BOLT

3/8" x 1-1/4"

4шт.

51

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

4шт.

52

NSS

NOT SOLD SEPARAT

3/8" Std. Washer

2шт.

53

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

4шт.

54

419-3724

PLOW BOLT,#3, 7/16" - 14 x 1 1/2", Gr 5

1шт.

55

16207081

PLOW BOLT

7/16" x 2"

1шт.

50

16206050

PLOW BOLT

3/8" x 1-1/4"

4шт.

56

NSS

NOT SOLD SEPARAT

7/16" NC Hex.

6шт.

57

NSS

NOT SOLD SEPARAT

7/16" x 1-3/8"

4шт.

58

NSS

NOT SOLD SEPARAT

7/16" LH Hex.

4шт.

59

NSS

NOT SOLD SEPARAT

7/16" Lock Washer

4шт.

60

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1/2" x 1-3/4"

1шт.

61

22363

BOLT,Hex, 1/2"-13 x 2", G5

1/2" x 2"

2шт.

62

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

3шт.

63

16210145

PLOW BOLT

5/8" x 3-1/2" Gd. 5

1шт.

64

NSS

NOT SOLD SEPARAT

5/8" x 3" NC Gd. 5 Hex. Bolt

2шт.

65

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

3шт.

66

NSS

NOT SOLD SEPARAT

5/8" Lock Washer

3шт.

67

NSS

NOT SOLD SEPARAT

5/8" Std. Washer

2шт.

Выбрано товаров: 43
