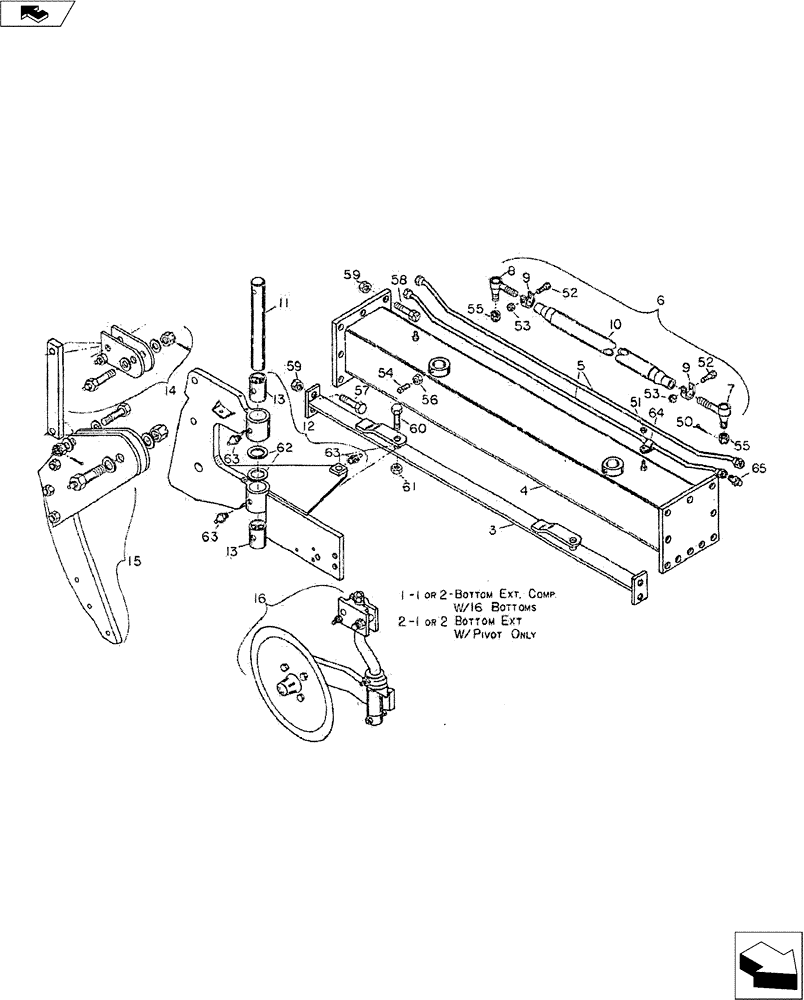

Запчасти Case IH 58C SERIES (75.200.05) - 1 OR 2 BOTTOM EXTENSION ASSEMBLY (75) - SOIL PREPARATION

1

49300100

W/16" Bottoms I/Tie Rod

1шт.

1

49300200

W/16" Bottoms

1шт.

2

49300011

Includes Ref. 3, 4, 5 & Hardware

1шт.

2

49300021

Includes Ref. 3, 4, 5 & Hardware

1шт.

3

49653000

1шт.

3

49753000

1шт.

4

49652000

1шт.

4

49752000

1шт.

5

25653701

2шт.

6

4965000

6-Bottom Front (208" Lg.)

1шт.

6

49750000

7-Bottom Front (246" Lg.)

1шт.

7

32729000

TIE-ROD

RH End

1шт.

8

32729001

TIE-ROD

LH End

1шт.

9

32739000

1шт.

10

49651000

1шт.

10

49751000

1шт.

11

49535000

17" Lg.

1шт.

12

49302000

1шт.

13

44021320

2-1/8" ID 3-1/2" Lg.

2шт.

14

NSS

NOT SOLD SEPARAT

Spring Trip Stop (Std.)

1шт.

14

NSS

NOT SOLD SEPARAT

Auto Reset Trip (Opt.)

1шт.

15

NSS

NOT SOLD SEPARAT

Shank (Spring Trip Stop) (Std.)

1шт.

15

NSS

NOT SOLD SEPARAT

Shank (Auto Reset Trip)(Opt.)

1шт.

16

NSS

NOT SOLD SEPARAT

Coulter Shear (Std.)

1шт.

50

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

2шт.

51

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

2шт.

52

NSS

NOT SOLD SEPARAT

7/16" x 2" NF Hex. Bolt

2шт.

53

NSS

NOT SOLD SEPARAT

7/16" NF Hex. Nut

2шт.

54

16810064

SET SCREW

5/8" x 1-1/2" Sq. Hd. Cup Point Gd. 5

1шт.

55

425-1310

SLOTTED NUT,5/8"-18, G5

5/8" NF

2шт.

56

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

57

NSS

NOT SOLD SEPARAT

3/4" x 2" NC Hex. Bolt

2шт.

58

16012104

BOLT

3/4" x 2-/12" NC Hex. Gd. 5

10шт.

59

NSS

NOT SOLD SEPARAT

3/4" NC Lock Nut

12шт.

60

NSS

NOT SOLD SEPARAT

7/8" x 4-1/2" NC Hex. Nut

1шт.

61

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

1шт.

62

17634010

BUSHING

2-1/8" Narrow Rim Machine

2шт.

63

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

3шт.

64

22530801

1/2"

4шт.

65

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 JICM x 3/4-16 JICM Male Adapter

2шт.
