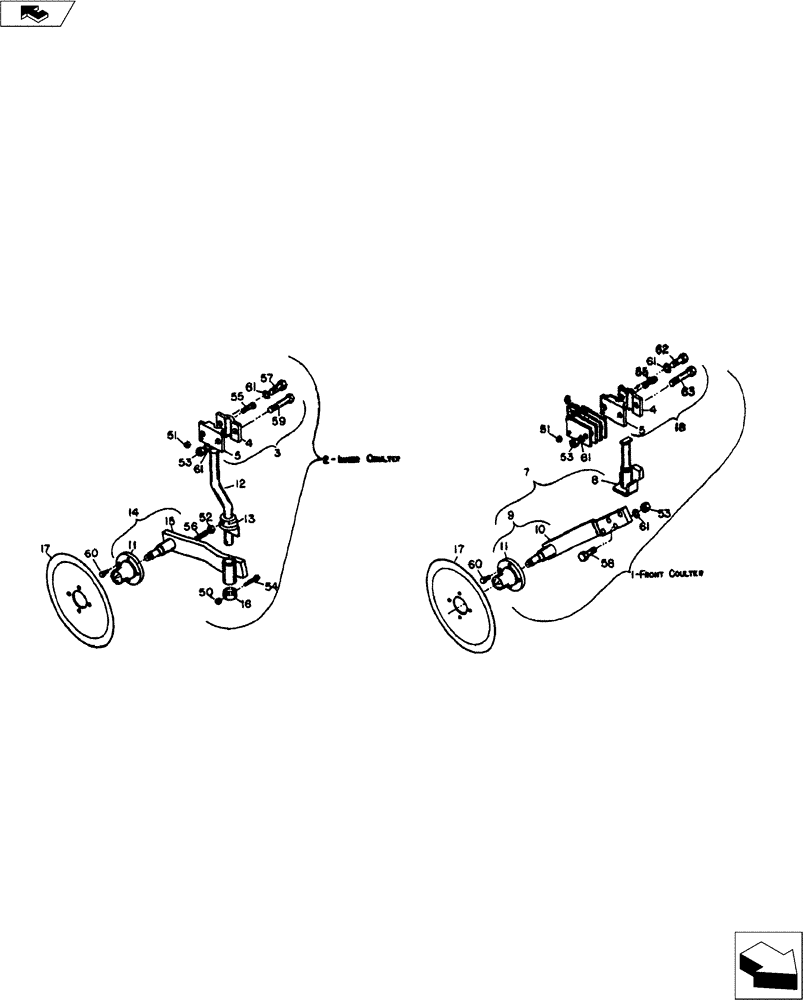

Запчасти Case IH 58C SERIES (75.200.03) - STANDARD COULTER ASSEMBLY (FRONT) (75) - SOIL PREPARATION

2

49109000

1шт.

3

49526000

1шт.

4

49564000

1шт.

5

20092021

CASTING

Coulter Clamp

1шт.

7

49311000

Includes Ref. 8, 9 & Hardware

1шт.

8

49312000

1шт.

9

49313000

1шт.

10

49315000

1шт.

11

28163300

HUB ASSY.

Q-633 4-Bolt

1шт.

12

49572000

19-1/2" Lg.

1шт.

13

4348000

1шт.

14

49528110

Includs Ref 11-15

1шт.

15

49575000

MOUNTING PARTS

Inner Coulter Mt I/Hub

1шт.

17

443638A1

PLOW DISC

24"Coulter Blade (St.)

1шт.

17

33502040

20"

1шт.

17

33502041

20" Ripped

1шт.

18

49527000

Includes Ref. 4, 5 & Hardware

1шт.

50

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

51

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

1шт.

52

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

53

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

3шт.

54

NSS

NOT SOLD SEPARAT

3/8" X 3" NC Hex. Bolt

1шт.

55

NSS

NOT SOLD SEPARAT

7/16" × 2-1/2" NC Hex. Bolt Gd. 5

1шт.

56

16810064

SET SCREW

5/8" X 1-1/2" Sq Head Cup Point Gd. 5

1шт.

57

NSS

NOT SOLD SEPARAT

3/4" X 2" NC Hex. Bolt

1шт.

58

NSS

NOT SOLD SEPARAT

3/4" × 2-1/2" NC Hex. Bolt

2шт.

59

NSS

NOT SOLD SEPARAT

3/4" X 2-1/2" NC Hex. Bolt

1шт.

60

16408052

SPECIAL BOLT

1/2" × 1-1/4" NF Lug

4шт.

61

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

4шт.

62

NSS

NOT SOLD SEPARAT

3/4" × 3" NC Hex. Bolt

1шт.
