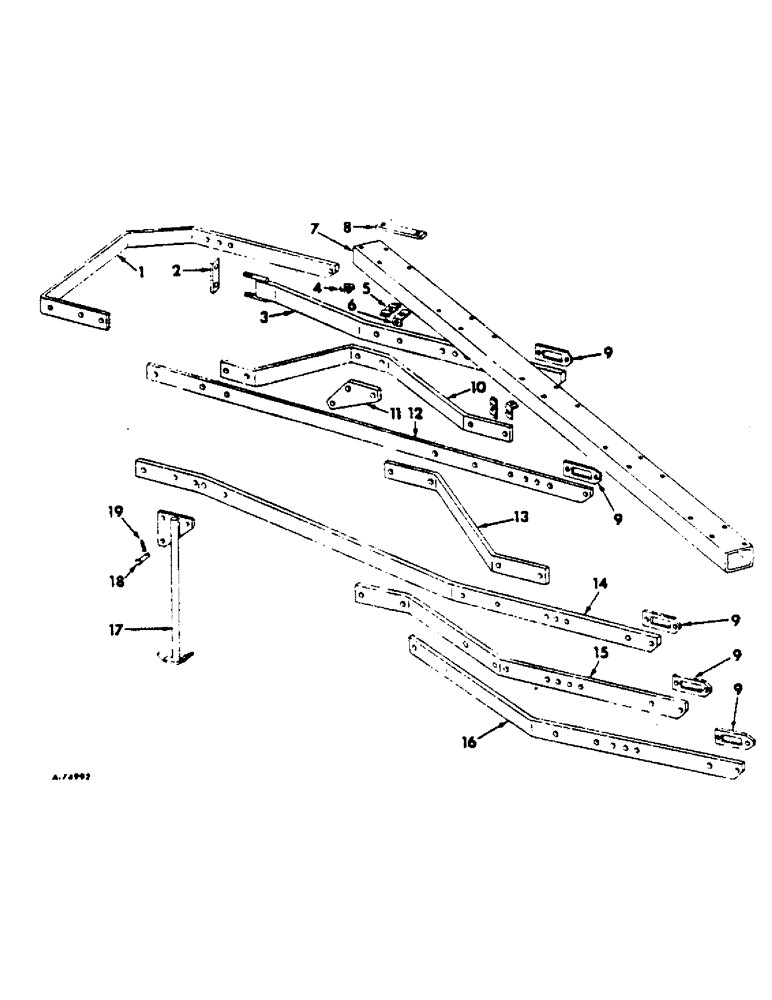

Запчасти Case IH 550 (AB-02) - MAIN FRAME

1

471275R1

SPREADER, frame

1шт.

425-1110

NUT,5/8"-18, G5

2шт.

425-1012

NUT,3/4"-10, G5

3/4 NUT

3шт.

665090R1

BOLT,5/8" x 3 1/4", Gr 8

5/8 x 3-1/4 CAP SCREW

2шт.

271621

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

3/4 x 4-1/2 CAP SCREW

1шт.

272725

SNAP RING

3/4 x 5-1/4 CAP SCREW

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

2

471278R1

CLIP, second rail

1шт.

3

471276R11

RAIL, second frame

1шт.

102639

NUT,5/8"-11, G5

2шт.

220081

NUT

3/4 NUT

2шт.

220083

NUT,1"-8, G5

1 IN. NUT

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 CAP SCREW, Course Threads

2шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4 x 3-1/4 CAP SCREW

1шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3/4 x 3-1/2 CAP SCREW

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

121326

WASHER,1"

LOCK, 1"

2шт.

4

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit, 9 for four, furrow, 12 for five, furrow, 15 for six, furrow plow

1шт.

5

515030R1

CLAMP

hose, 2 for four or five, furrow, 3 for six, furrow plow

1шт.

15039R1

BOLT

3/8 X 1-1/2 CRG BOLT, 2 FOR FOUR FURROW OR FIVE-FURROW, 3 FOR SIX-FURROW PLOW

1шт.

129-410

WING NUT,3/8"-16

3/8 WING NUT, 2 FOR FOUR OR FIVE FURROW, 3 FOR SIX-FURROW PLOW

1шт.

6

471301R2

ANGLE

MOUNTING, hose clamp, 2 for four or five-furrow, 3 for six-furrow plow

1шт.

7

471288R91

FRAME, main, four-furrow 14 in. plow

1шт.

7

471291R91

FRAME, main, four-furrow 16 in. plow

1шт.

7

471294R92

FRAME, main, five-furrow 14 in. plow

1шт.

7

471297R92

FRAME, main, five-furrow 16 in. plow

1шт.

525184R1

5/8 x 5-1/4 CRG BOLT, 10 for four furrow, 14 for five furrow plow

1шт.

102639

NUT,5/8"-11, G5

10 for four furrow, 14 for five furrow plow 5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , 10 for four furrow, 14 for five furrow plow 5/8"

1шт.

7

473132R91

FRAME, main, six-furrow 14 in. plow

1шт.

7

473135R91

FRAME, main, six-furrow 16 in. plow

1шт.

519724R2

5/8 x 5-1/2 CRG BOLT

18шт.

102639

NUT,5/8"-11, G5

18шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

18шт.

8

525159R1

STRAP, main frame reinforcing

1шт.

521530R1

5/8 x 5-3/4 CRG BOLT, 2 for four or five furrow plow

1шт.

526453R1

5/8 x 6 CRG BOLT, 2 for six-furrow plow

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

524465R1

SUPPORT

SPACER, rail, 3 for four furrow, 4 for five furrow, and 5 for six furrow

1шт.

10

471285R1

BRACE, between second and third rail, four, five or six furrow 14 in. plow

1шт.

10

471286R1

BRACE, between second and third rail, four, five or six furrow 16 in. plow

1шт.

425-1012

NUT,3/4"-10, G5

3/4 NUT

2шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

3/4 x 2-3/4 CAP SCREW, 2 for four or five furrow, 1 for six furrow

1шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3/4 x 3-1/2 CAP SCREW, 1 for six furrow

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

11

471300R1

PLATE, drag link

1шт.

12

471279R1

RAIL, third frame, four, five or six furrow 14 in. plow

1шт.

12

471280R1

RAIL, third frame, four, five or six furrow 16 in. plow

1шт.

102639

NUT,5/8"-11, G5

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 CAP SCREW, Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

473140R1

BRACE, between third and fourth rail, six furrow 14 in. plow

1шт.

13

473141R1

BRACE, between third and fourth rail, six furrow 16 in. plow

1шт.

220081

NUT

3/4 NUT

2шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

3/4 x 2-3/4 CAP SCREW

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

14

471281R1

RAIL, fourth frame, four, five or six, furrow 14 in. plow

1шт.

14

471282R1

RAIL, fourth frame, four, five or six, furrow 16 in. plow

1шт.

102639

NUT,5/8"-11, G5

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3/4 CAP SCREW, Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

471283R1

RAIL, fifth frame, five or six, furrow 14 in. plow

1шт.

15

471284R1

RAIL, fifth frame, five or six, furrow 16 in. plow

1шт.

102639

NUT,5/8"-11, G5

2шт.

425-1012

NUT,3/4"-10, G5

3/4 NUT

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 CAP SCREW, Course Threads

2шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3/4 x 3 CAP SCREW, 2 for five, furrow 1 for six, furrow

1шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

3/4 x 3-3/4 CAP SCREW, 1 for six furrow

1шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4, NC, gr 5 to - FIGURE DOESN'T EX

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

16

473138R1

RAIL, sixth frame, six furrow 14 in. plow

1шт.

16

473139R1

RAIL, sixth frame, six furrow 16 in. plow

1шт.

102639

NUT,5/8"-11, G5

2шт.

220081

NUT

3/4 NUT

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 CAP SCREW, Course Threads

2шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3/4 x 3 CAP SCREW

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

17

471287R91

STAND

ASSY

1шт.

Ref #17 - Replaced by 544099R1 Bar and 544098R1 Bracket 08/16/96

1шт.

458188R1

NUT

5/8 LOCK NUT

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5/8 x 2-1/2 CAP SCREW

1шт.

18

512654R1

PIN

5/8 x 2-3/8 dld-pt-hd

1шт.

19

520175R1

CLIP

PIN, quick-attachable cot

1шт.
