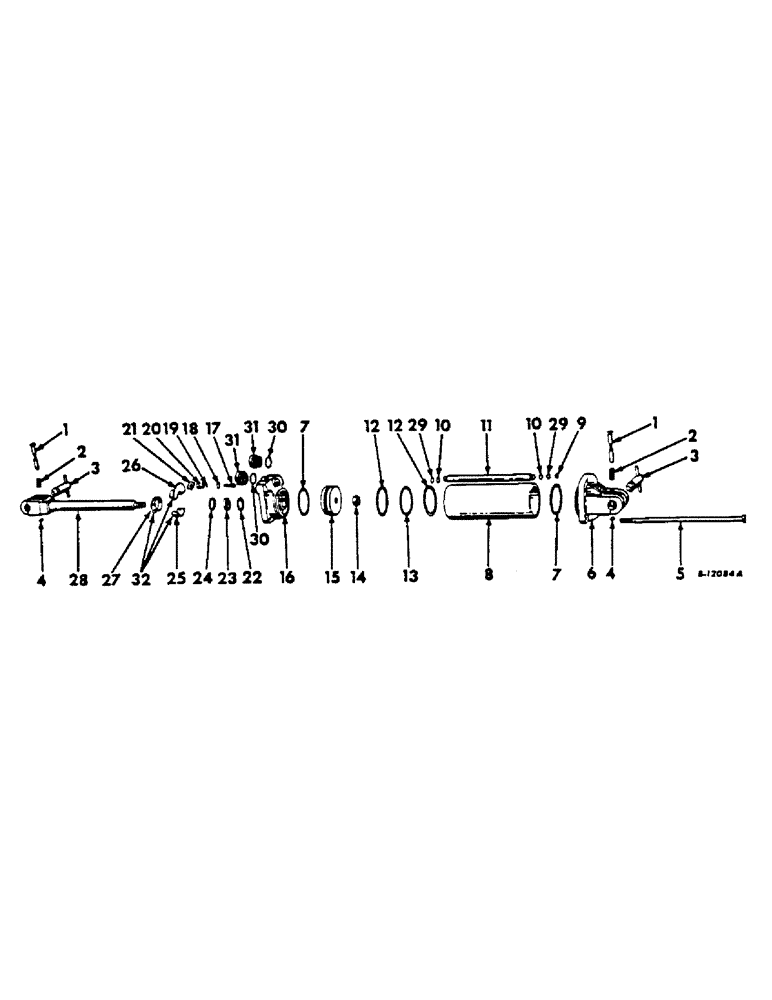

Запчасти Case IH 550 (AB-25) - HYDRAULIC CYLINDER, DOUBLE ACTING

371291R97

CYLINDER

ASSY, 2-/12 x 8, consists of all parts not marked by unit designation & those marked unit A

1шт.

371292R93

CYLINDER

ASSY, hydraulic, 3-1/2 x 8, order 403842R91, consists of all parts not marked by unit designation & those marked unit B

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

352231R11

PIN

ASSY, cylinder pivot

2шт.

4

354837R1

WASHER

lock pin

2шт.

5

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

cylinder tie

4шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex, unit B

4шт.

5

384750R1

BOLT,Hex, 7/16" - 14 x 12 1/8"

7/16-14 x 12-1/8 hex-hd, unit A

4шт.

6

371296R3

HEAD

cylinder, bottom end, unit A

1шт.

6

371298R3

HEAD

cylinder, bottom end, unit B

1шт.

7

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8, unit B

2шт.

7

343923R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2-1/4 x 2-1/2 x 1/8, unit A

2шт.

8

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, cylinder, unit B

1шт.

8

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

cylinder, unit A

1шт.

9

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

return tube o-ring back-up

2шт.

10

(Not used in this application)

1шт.

11

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

375936R1

BACK-UP RING

WASHER, piston head back-up, unit B

2шт.

13

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

piston head back-up, unit A

2шт.

13

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16, unit B

1шт.

13

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

2-1/8 x 2-1/2 x 3/16, unit A

1шт.

14

385020R1

NUT

3/4-16 hex, lock

1шт.

15

361003R1

HEAD

piston, unit B

1шт.

15

361000R1

HEAD

piston, unit A

1шт.

16

371295R21

HEAD ASSY, cylinder front, unit A

1шт.

50410DA

PLUG

cylinder head

2шт.

16

371297R11

HEAD (CYLINDER)

HEAD ASSY, cylinder front, unit B

1шт.

17

361006R11

VALVE

ASSY, limit stop

1шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

19

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16

1шт.

20

361007R11

RETAINER

ASSY

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

172792

SCREW, 1/4 x 9/16 hex-hd cap

2шт.

22

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

cylinder piston rod gland

1шт.

23

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

24

354049R1

RETAINER

piston rod dust seal

1шт.

25

360372R1

COLLAR

stroke limit plain half

1шт.

26

361010R1

COLLAR

stroke limit flanged half

1шт.

27

361085R91

CLAMP

ASSY, stroke limit collar

1шт.

28

361005R13

ROD

ASSY, piston

1шт.

29

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, cylinder head plug, unit B

2шт.

30

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4/64 x 13/16 x 5/64, cylinder head plug, unit A

2шт.

31

9410359

PLUG

3/4-16 cd or zn-pltd str, unit A

1шт.

31

9410360

PLUG

7/8-14 cd or zn-pltd str, unit B

1шт.

32

375426R91

COLLAR

ASSY, stroke limit

1шт.

392503R1

PIN

SCREW, thumb

1шт.

363137R93

SEAL KIT

PACKAGE, o-ring service, unit A, consist of, (1) ring 350429R1, (1) ring 350657R1, (2) ring 377952R1, (1) ring 354047R1, (2) ring 343923R1, (1) ring 360599R1, (1) seal 354048R1, (2) washer 361013R1, (2) washer 371218R2

1шт.

363138R93

SEAL KIT

PACKAGE, o-ring service, unit B, consits of, (1) retainer 354049R1, (1) ring 350429R1, (1) ring 378827R1, (2) ring 377952R1 (1) ring 354047R1, (2) ring 354836R1, (1) ring 21590R1, (1) seal 354048R1, (2) washer 375936R1, (2) washer 371218R1

1шт.

2751860R1

PRODUCT GRAPHIC, hyd cyl

1шт.

2751852R1

PRODUCT GRAPHIC, International

1шт.
