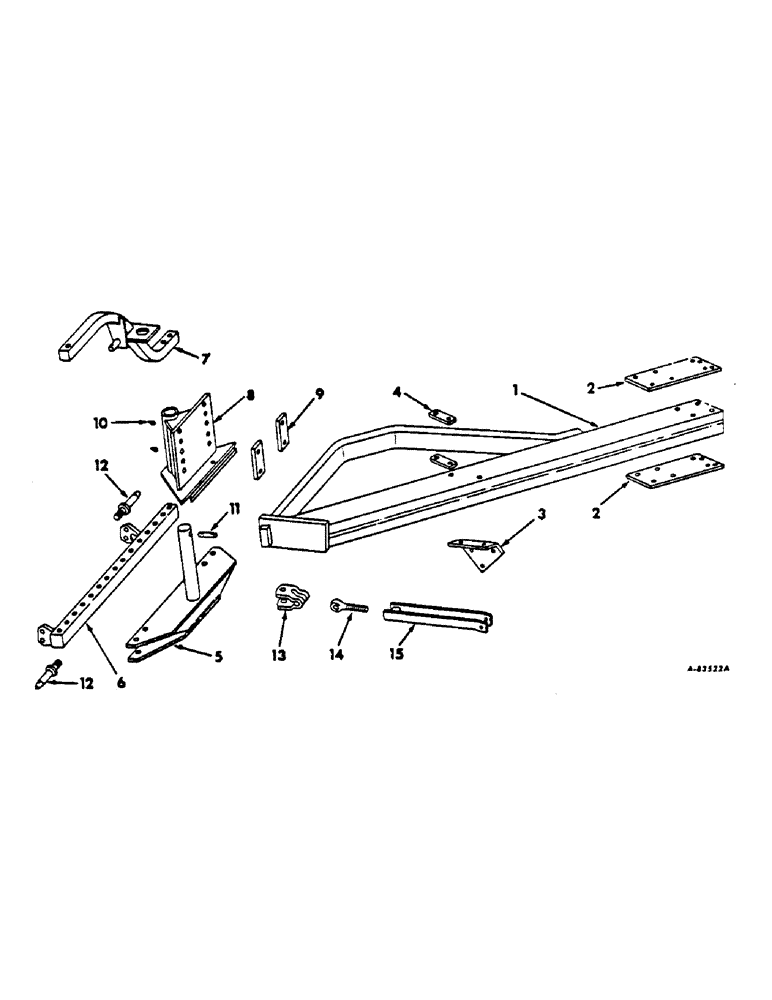

Запчасти Case IH 550 (AB-17) - LAND HITCH, 550 AND 560 PLOWS, 656, 706, 756, 806, 856, 1206, 1256 TRACTORS

1

476679R91

SPREADER ASSY

1шт.

2

476684R1

BAR, connector

2шт.

272556

GEAR

SCREW, 3/4-10 x 5-3/4 hex-hd cap

6шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

10шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

10шт.

3

476685R1

BRACKET, pull bar

1шт.

272554

SUMP

SCREW, 3/4-10 x 5-1/2 hex-hd cap

2шт.

272556

GEAR

SCREW, 3/4-10 x 5-3/4 hex-hd cap

1шт.

17245R1

SCREW, 3/4-10 x 9 hex-hd cap

1шт.

4

476686R1

BAR, front spreader

2шт.

17245R1

SCREW, 3/4-10 x 9 hex-hd cap

1шт.

19593R1

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

SCREW, 3/4-10 x 8-1/2 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

220081

NUT

3/4-10 hex

2шт.

5

476687R91

PIVOT ASSY

1шт.

451798R2

WASHER

2-17/32 x 3-1/4 x 16 ga

1шт.

271619

CIRCLIP

3/4-10 x 4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

2шт.

6

476690R92

DRAWBAR ASSY, two point fast hitch, Serial Range: 1963-1966

1шт.

6

484776R1

DRAWBAR ASSY, two point fast hitch, 1966 and above

1шт.

6

484773R1

DRAWBAR ASSY, category II three point hitch

1шт.

7

476694R91

ARM ASSY, front steering

1шт.

272556

GEAR

SCREW, 3/4-10 x 5-3/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

220081

NUT

3/4-10 hex

2шт.

8

471343R93

BRACKET ASSY, pivot

1шт.

9

471350R1

BAR

CLIP, pivot bracket

2шт.

271618

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 5

SCREW, 3/4-10 x 3-3/4 hex-hd cap

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

4шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

2шт.

11

473149R1

PIN, pivot shaft

1шт.

PIN, 1/4 x 1-1/4 self-opening cot

2шт.

12

472790R1

STUD

hitch lower, 656, 706 and 806 tractors

2шт.

12

483659R1

STUD

hitch lower, 1206 tractors

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

2шт.

13

471355R2

CLEVIS

drag link

1шт.

220081

NUT

3/4-10 hex

1шт.

108645

COTTER PIN

PIN, 1/4 x 1-3/8 cot

1шт.

PO15149

PIN, 3/4 x 3-3/16 dld-std-hd

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

14

471356R

EYEBOLT, drag link

1шт.

15

471352R91

LINK ASSY, drag

1шт.

231-14012

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 hex, stop

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

1шт.

476702R1

TUBE, reinforcing, for LH leveling link of tractor

1шт.

481628R1

SPACER, LH lift link housing, 706, 756, 806, 856 tractors w/category II three point hitch

2шт.

392002R91

PARTS ACCESSORY, bushing & pin adapter, for use w/category II implements when mounted on category III three point hitch, consists of

1шт.

392911R1

BALL, upper link rear

1шт.

374132R1

PIN

upper link implement

1шт.

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

lower link hitch point

2шт.
