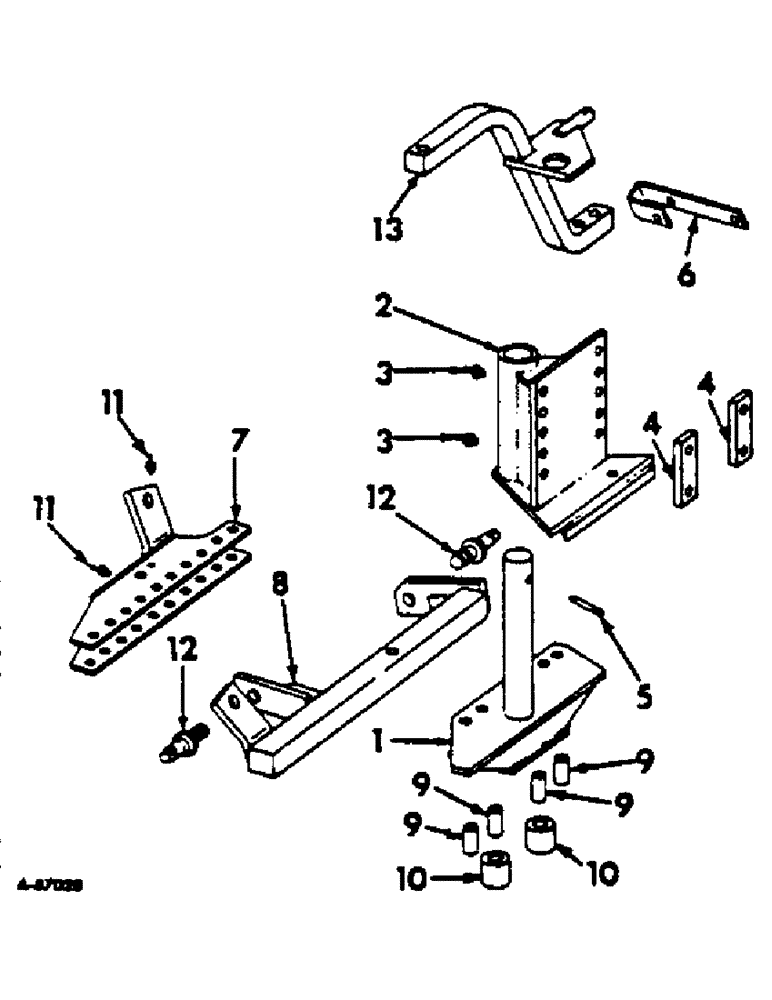

Запчасти Case IH 550 (AB-15) - HYDRAULIC FURROW SHIFTING HITCH

1

473142R91

PIVOT ASSY, drawbar

1шт.

21720R1

WASHER

2-17/32 x 3-1/4 x 16 ga C-Z

1шт.

2

471343R93

BRACKET ASSY, pivot

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF 2 str lub pivot

2шт.

4

471350R1

BAR

CLIP, pivot bracket

2шт.

271618

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 5

SCREW, 3/4-10 x 3-3/4 hex-hd cap

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

4шт.

5

473149R1

PIN, pivot shaft

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

2шт.

6

481878R1

BRACE, shifting hitch spring

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102635

NUT,3/8"-16, G5

1/2-13 hex

1шт.

7

481879R92

SUPPORT ASSY.

GUIDE ASSY, shifting hitch

1шт.

8

481884R92

BAR

ASSY, draw

1шт.

271621

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

SCREW, 3/4-10 x 4-1/2 hex-hd cap

2шт.

17269R1

SCREW,Hex, 3/4" - 10 x 6 1/4", Gr 5

3/4-10 x 6-1/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

220081

NUT

3/4-10 med

4шт.

9

481890R1

SPACER, drawbar

4шт.

10

481889R1

SPACER, drawbar roller

2шт.

11

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 NF 2 str lub

1шт.

12

472790R1

STUD

lower hitch

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

2шт.

427357

NUT, 1-1/8-12 C-Z hex

2шт.

13

473144R91

ARM ASSY, front steering

1шт.

272556

GEAR

SCREW, 3/4-10 x 5-3/4 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

1шт.
