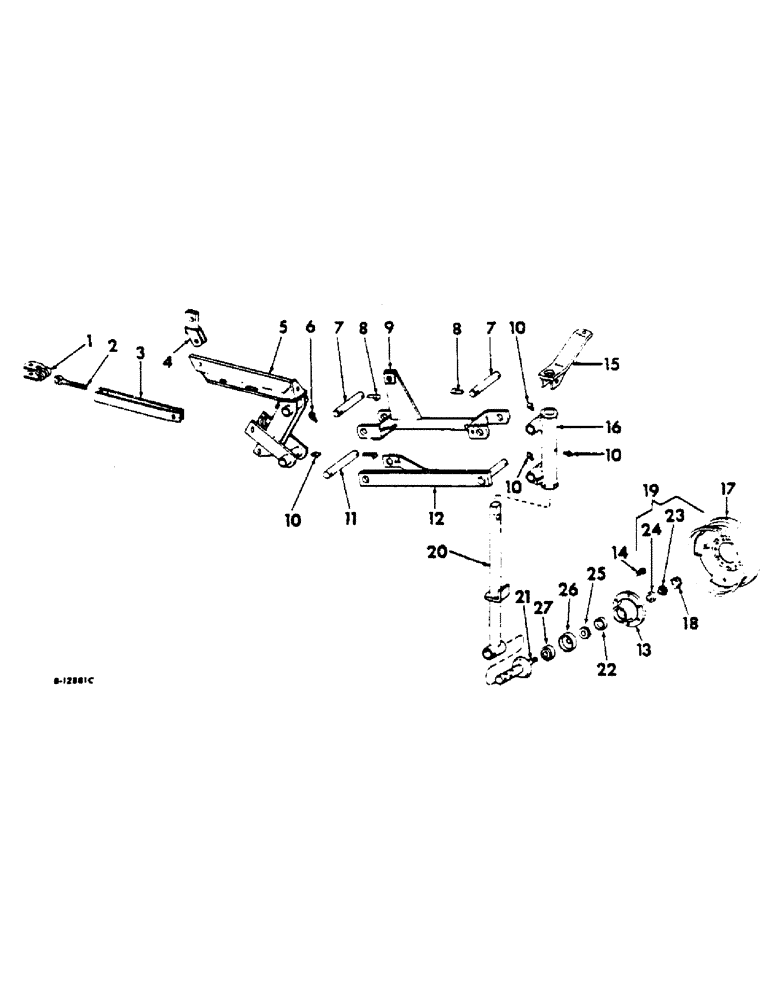

Запчасти Case IH 550 (AB-12) - STEERABLE WHEEL UNIT

1

471355R2

CLEVIS

drag link

1шт.

425-1012

NUT,3/4"-10, G5

3/4 NUT

1шт.

108645

COTTER PIN

1/4 x 1-3/8 COT PIN

1шт.

724775R1

HEADED PIN,3/4" x 3 1/4"

3/4 x 3-1/4 STD-HD PIN

1шт.

271616

SEAL KIT

3/4 x 3-1/4 CAP SCREW

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 GA WASHER

2шт.

2

471356R1

BOLT

EYEBOLT, drag link

1шт.

3

471352R91

LINK ASSY, drag

1шт.

231-14012

LOCK NUT,3/4"-10, GB

3/4 STOP NUT

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4 x 2-1/2 CAP SCREW

1шт.

4

471312R91

ANCHOR ASSY, cylinder

1шт.

PO20130

AXLE PIN,3/4" x 2 1/8"

3/4 x 2-1/8 std-hd pin

1шт.

108645

COTTER PIN

1/4 x 1-3/8 EXTENDED PRONG COT PIN

1шт.

5

471302R92

MOUNTING ASSY, rear

1шт.

21695R1

BOLT,Hex, 5/8" - 11 x 5 3/4", Gr 5

5/8-11 x 5-3/4 C-Z hex-hd cap, 2 for four furrow

1шт.

526453R1

5/8 x 6 CRG BOLT, 1 for four furrow, 2 for five & six furrow

1шт.

521991R1

5/8 x 6-1/2 CRG BOLT, 1 for five or six furrow

1шт.

1224589

NUT, 5/8-11 C-Z hex

3шт.

425-1110

NUT,5/8"-18, G5

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 C-Z hex, jam

1шт.

NLS

NO LONGER SERVICED

5/8UNF x 4-1/4 CAP SCREW

1шт.

14-1084

BOLT,Hex, 5/8" - 18 x 5-1/4", Gr 5

5/8UNF x 5-1/4 CAP SCREW , Fine threads

1шт.

113-1092

5/8 x 5-3/4 CAP SCREW, 1 for four furrow

1шт.

18610R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 CAP SCREW, 1 for five & six furrow

1шт.

471370R1

BOLT,Hex, 3/4" - 10 x 2 1/4"

3/4 x 2-1/4 CAP SCREW, thd-td-hd

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

369936R1

WASHER

21/32 x 1-1/4 x 11 GA WASHER

4шт.

6

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4 tapered 45 deg elbow lub

1шт.

7

471322R1

PIN

upper arm

2шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), , self-opening 3/8" x 1 7/8"

2шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

1шт.

8

471323R1

LINCH PIN

PIN, pivot pin lock

3шт.

9

471315R91

ARM ASSY, upper

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

4шт.

11

471327R1

PIN

lower arm front

1шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), , self-opening 3/8" x 1 7/8"

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

1шт.

12

471324R11

ARM ASSY, lower

1шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), , self-opening 3/8" x 1 7/8"

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

1шт.

13

465493R1

HUB

wheel

1шт.

14

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

6шт.

15

471333R21

ARM ASSY, rear steering

1шт.

361011R1

NUT

3/4UNF STOP NUT

1шт.

14-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

3/4 x 3-1/4 CAP SCREW

1шт.

16

471332R1

HOUSING, rear axle

1шт.

17

463034R1

RIM

14 x 5 KB, 1-1/8 offset, 6 bolt

1шт.

18

663908R1

CAP

hub

1шт.

19

371881R91

BEARING ASSY,0.8437" ID x 1.9687" OD x 0.690, 0.55"

ASSY, wheel outer roller

1шт.

20

471328R11

AXLE ASSY, rear

1шт.

21

471331R21

SPINDLE

ASSY, rear wheel

1шт.

69442D

NUT

3/4 UNF SLT NUT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

625688R1

WASHER

2-1/32 x 3 x 16 GA WASHER, required on axle above stop, on top of housing as required

1шт.

22

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner roller

1шт.

23

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Wheel outer

1шт.

24

371883R1

BEARING CUP

Wheel outer

1шт.

25

618023R1

CONE

BEARING ASSY, inner roller cone

1шт.

26

667564R1

RING

wear sleeve

1шт.

27

667599R91

OIL SEAL

oil

1шт.
