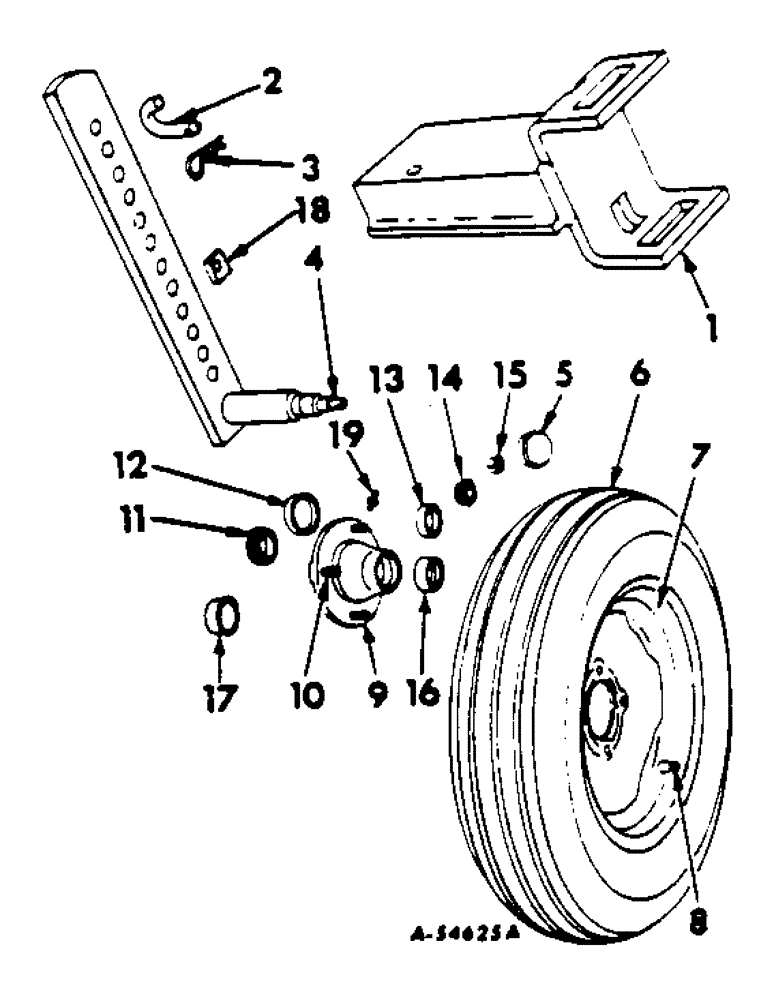

Запчасти Case IH 550 (AB-11) - GAUGE WHEEL AND BRACKET
№
Артикул
Название
Примечание
Количество
1
471360R91
BRACKET, order bracket, 473153R91 & ref no. 18
1шт.
102639
NUT,5/8"-11, G5
1шт.
20028R1
BOLT,Hex, 5/8" - 11 x 8 1/4", Gr 5
5/8 x 8-1/4 CAP SCREW
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
1
473153R91
BRACKET ASSY
1шт.
102639
NUT,5/8"-11, G5
1шт.
20331R1
BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5
5/8 x 8-1/2 CAP SCREW
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
2
520620R1
AXLE PIN
PIN, retaining
1шт.
3
520175R1
CLIP
PIN, quick-attachable cot
1шт.
4
467474R92
SUPPORT ASSY.
STANDARD W/SPINDLE ASSY
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
472634R1
WASHER
25/32 x 1-3/4 x 11 GA WASHER
1шт.
5
651194R1
CAP
hub
1шт.
6
TIRE, ribbed implement pneumatic, 6.70 x 15
1шт.
6
TIRE, pneumatic, 7.00 x 14 in.
1шт.
6
TIRE, pneumatic, 7.50 x 14 in.
1шт.
6
TIRE, pneumatic, 8.00 x 14 in.
1шт.
7
455169R92
WHEEL
15 x 4-1/2 KB, for 6.70 x 15 tire
1шт.
7
463036R1
WHEEL (STEERING)
WHEEL, 14 x 5 KB, for 14 in. tire
1шт.
8
TUBE, pneumatic, 6.70 x 15
1шт.
8
TUBE, pneumatic, 7.00 x 14
1шт.
8
TUBE, pneuamtic, 7.50 x 14
1шт.
8
TUBE, pneumatic, 8.00 x 14
1шт.
9
472220R11
HUB
ASSY, wheel
1шт.
351079R1
BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"
1/2-20 x 15/16 conical hd hub
1шт.
10
(Not used in this application)
1шт.
13
651814R1
BEARING CUP
BEARING, outer cup
1шт.
14
651815R91
BEARING ASSY,7.508" ID x 17.82" OD x 6"
BEARING ASSY, outer cone
1шт.
14
651815R91GV
BEARING CONE
Value, Cone Bearing
1шт.
15
69442D
NUT
3/4-16 slt hex
1шт.
16
472221R91
SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk
ASSY, wheel hub oil
1шт.
17
472222R1
SLEEVE
oil seal wear
1шт.
18
473155R1
SPACER, gauge wheel bracket, not used on six furrow plow
1шт.
19
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4-28 str lub
1шт.
52443R1
WASHER, bracket brace
2шт.
Выбрано товаров: 38
