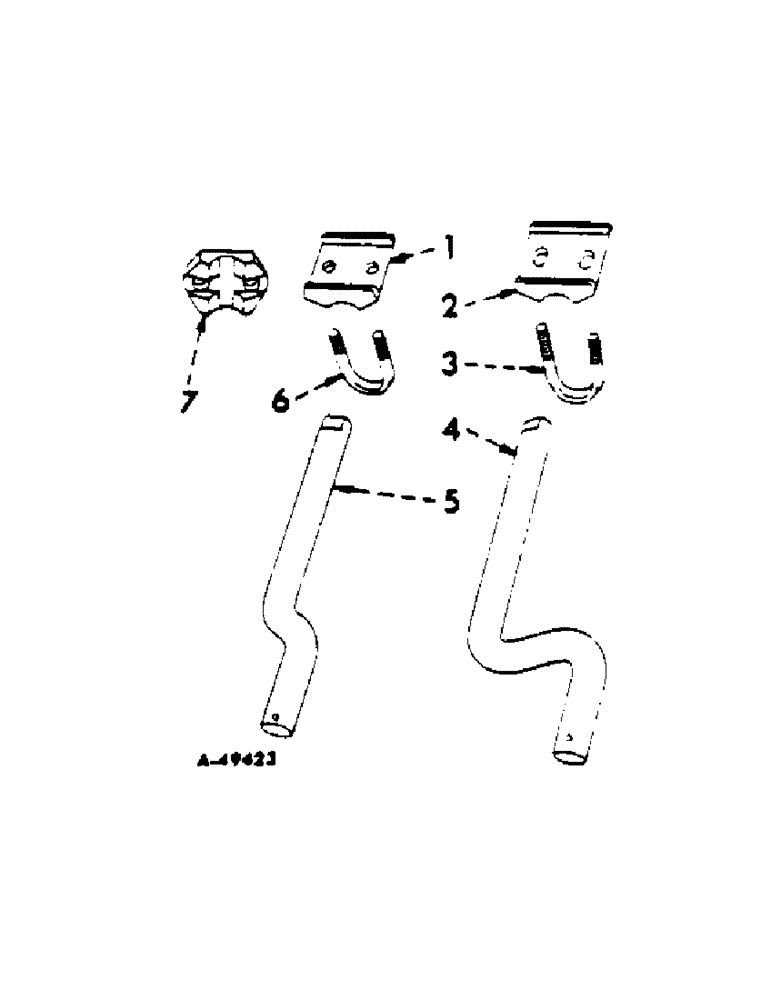

Запчасти Case IH 550 (AB-07) - COLTER SHANKS AND CLAMPS

1

524457R3

STAPLE

CLAMP, colter, for 2-3/4 x 1 rail

1шт.

2

524456R3

CLAMP

colter, for 3 x 1 rail

1шт.

21334R1

SCREW, 5/8-11 x 4-1/4 zn-pltd hex-hd cap

1шт.

413-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

SCREW, 5/8-11 x 4-3/4 C-Z hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

3

524562R11

U-BOLT W/NUTS, right rail colter clamp

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

522434R1

STEM

SHANK, colter, 1-1/2 dia, 5 offset

1шт.

5

524460R1

SHANK, colter, 1-1/2 dia, 1-7/8 offset

1шт.

21641R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), , self-opening 5/16" x 2 1/4"

1шт.

6

524459R1

BOLT,U, 5/8" - 11

U-BOLT, center left colter clamp

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

524492R1

CLAMP

CAP, clamp

1шт.

102639

NUT,5/8"-11, G5

2шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

5/8 x 4-1/4 CAP SCREW, Course Threads

1шт.

271573

BRACKET

5/8 x 4-3/4 CAP SCREW

1шт.
