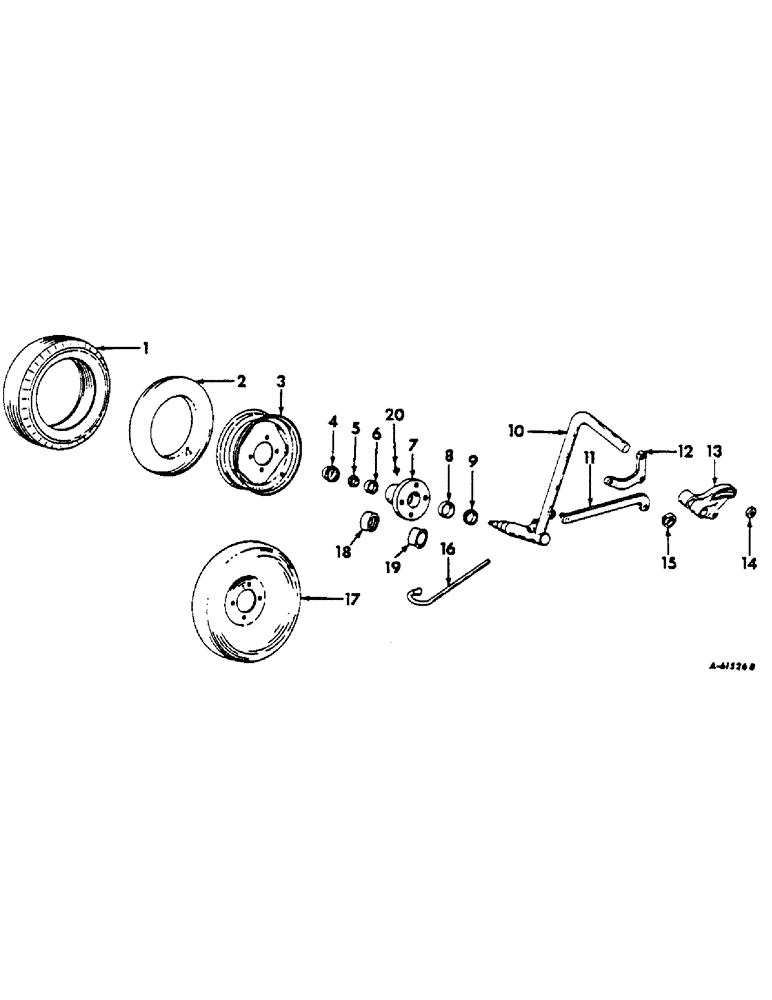

Запчасти Case IH 541 (AA-12) - REAR FURROW WHEEL, TRIP BEAM
№
Артикул
Название
Примечание
Количество
1
TIRE, 4 ply ribbed implement pneumatic, 4.00 x 12
1шт.
2
TUBE, pneumatic, 4.00 x 12
1шт.
3
525286R92
WHEEL ASSY
1шт.
4
651194R1
CAP
wheel
1шт.
5
651815R91
BEARING ASSY,7.508" ID x 17.82" OD x 6"
BEARING ASSY, outer cone
1шт.
5
651815R91GV
BEARING CONE
Value, Cone Bearing
1шт.
6
651814R1
BEARING CUP
BEARING, outer cup
1шт.
7
472220R11
HUB
W/SET SCREW
1шт.
.
1/2NF x 1 HEX-HD CAP SCREW
4шт.
.
1/2 LOCK WASHER
4шт.
10
472626R91
AXLE ASSY, rear, pneumatic tire, without set collar
1шт.
10
462865R91
AXLE ASSY, rear, without set collar
1шт.
.
69442D
NUT
3/4 x 18 UNF SLT NUT
1шт.
.
1/8 x 1-1/4 COT PIN
1шт.
.
472634R1
WASHER
25/32 x 1-3/4 x 11 GA WASHER
1шт.
10
472710R91
AXLE ASSY, rear, steel tire, with set collar
1шт.
10
462866R91
AXLE ASSY, rear, with set collar, RH
1шт.
.
69442D
NUT
3/4 -18UNF SLT NUT
1шт.
.
1/8 x 1-1/4 COT PIN
1шт.
.
102894
SET SCREW
3/8 x 3/4 CUP-PT SQ-HD SET SCREW
1шт.
.
575813R1
WASHER
25/32 x 1-1/4 x 11 GA WASHER
1шт.
.
472634R1
WASHER
25/32 x 1-3/4 x 11 GA WASHER
1шт.
11
522994R21
LINK ASSY, furrow wheel
1шт.
.
1/4 x 1-1/4 COT PIN
2шт.
12
523017R2
ARM, lower link attaching
1шт.
.
5/8 NUT
1шт.
.
5/8 x 3-1/2 HEX-HD MACH BOLT
1шт.
.
21/32 x 1-1/4 x 11 GA WASHER
1шт.
13
522992R2
BRACKET, axle
1шт.
.
5/8 x 4 CAP SCREW
1шт.
.
5/8 NUT
1шт.
.
5/8 LOCK WASHER
1шт.
14
523011R1
WASHER
serrated
1шт.
.
5/8 x 4-1/4 CAP SCREW
1шт.
.
5/8 NUT
1шт.
.
5/8 LOCK WASHER
1шт.
15
5641X
COLLAR W/SET SCREW
1шт.
.
85-15012
SET SCREW,Sq Hd, 1/2"-13 x 3/4"
1/2 x 3/4 CUP-PT SQ-HD SET SCREW
1шт.
16
523009R1
SCRAPER
1шт.
17
459361R1
WHEEL
1шт.
18
472221R91
SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk
wheel hub oil
1шт.
19
472633R1
BUSHING
SLEEVE, oil seal wear
1шт.
20
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4 str lub
1шт.
Выбрано товаров: 45
