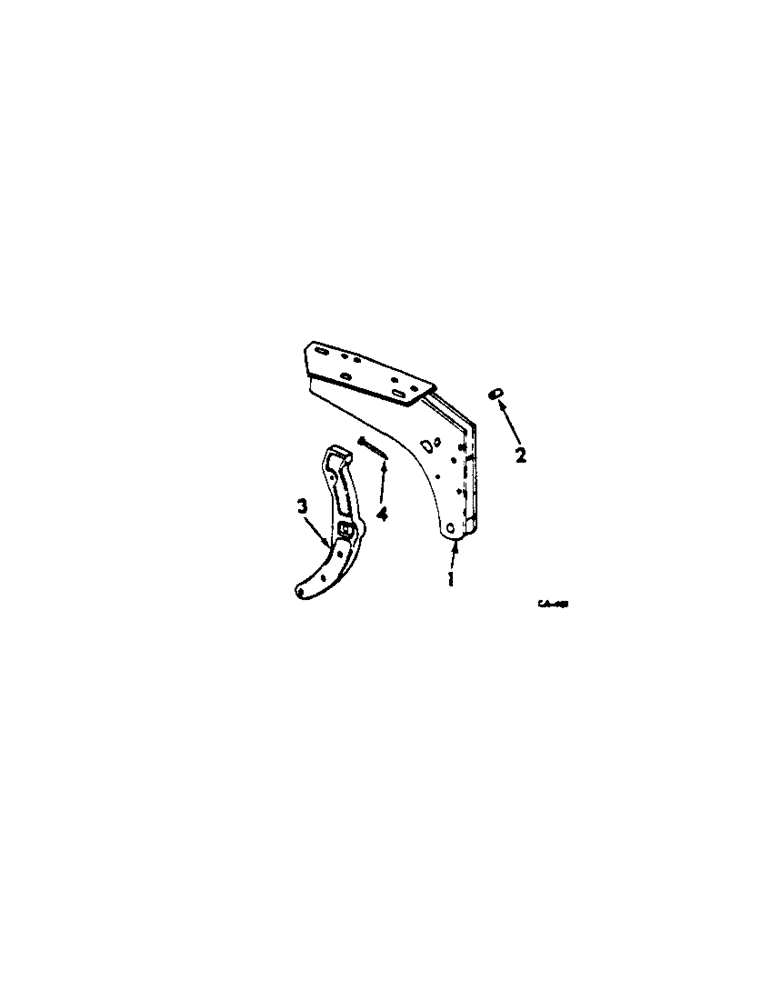

Запчасти Case IH 535 (AH-03[A]) - TRIP BEAM SHEAR PIN

1

524450R92

PLATE

ASSY, RH side

1шт.

522680R2

BOLT

1 x 3-3/8 hex-hd drld pivot mach

1шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-14 C-Z slt-hex.

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

2

522432R2

SPACER

STOP AND SPACER, beam

1шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 C-Z hex-hd mach

1шт.

20511R1

WASHER, 5/8 zn-pltd med lock

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

3

468843R1

BEAM

1шт.

4

468868R2

PIN,14.28mm OD x 83.31mm L

trip beam shear, 1 extra

2шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot. 1 extra

2шт.
