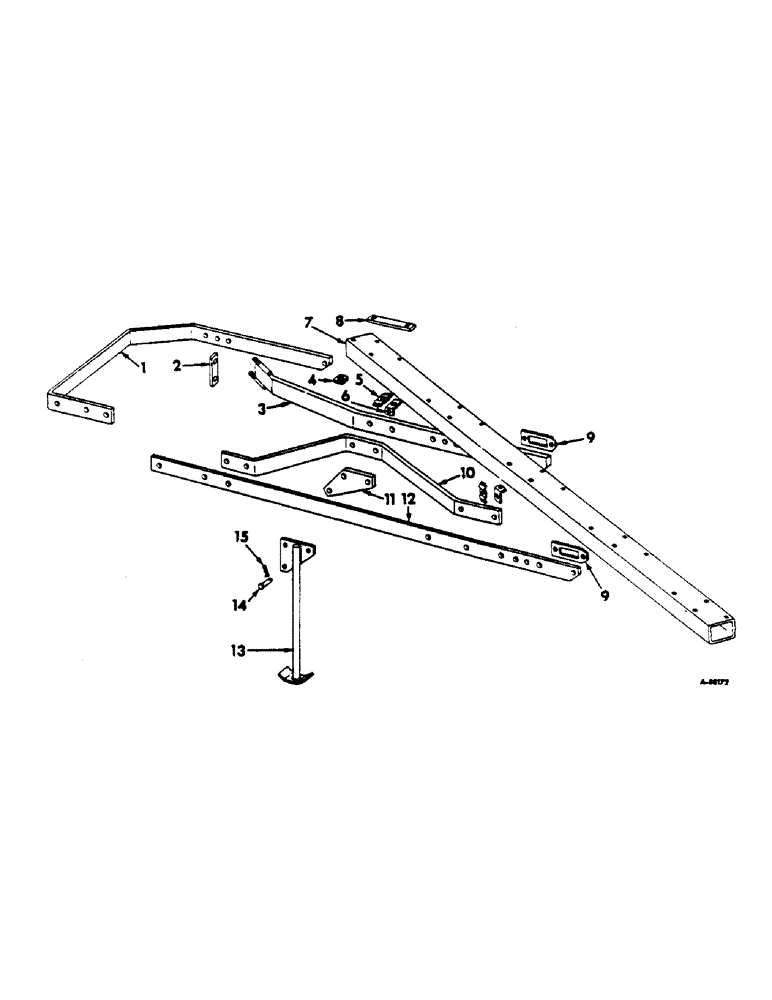

Запчасти Case IH 535 (AH-02) - MAIN FRAME

1

471275R1

SPREADER, frame

1шт.

665090R1

BOLT,5/8" x 3 1/4", Gr 8

SCREW, 5/8-18 x 3-1/4 type 4 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 hex-hd cap

1шт.

271620

BOLT

SCREW, 3/4-10 x 4-1/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

220081

NUT

3/4-10 hex.

3шт.

2

471278R1

CLIP, second rail

1шт.

271567

BRACKET,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 tupe 4 hex-hd cap, Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

271616

SEAL KIT

SCREW, 3/4-10 x 3-1/4 hex-hd cap

1шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

3

486688R1

RAIL ASSY, second 14 in.

1шт.

3

486690R1

RAIL ASSY, second 16 in.

1шт.

121326

WASHER,1"

LOCK, 1"

1шт.

220083

NUT,1"-8, G5

1/8 hex.

1шт.

4

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit

6шт.

5

515030R1

CLAMP

hose

2шт.

15039R1

BOLT

3/8 x 1-1/2 crg bolt

2шт.

129-410

WING NUT,3/8"-16

NUT, 3/8 wing

2шт.

6

471301R2

ANGLE

MOUNTING, hose clamp

2шт.

7

486681R1

TUBE ASSY, main frame 14 in.

1шт.

7

486682R1

TUBE ASSY, main frame 16 in.

1шт.

525184R1

BOLT, 5/8-11 x 5-1/4 sq-nk crg

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

102639

NUT,5/8"-11, G5

6шт.

8

525159R1

STRAP, main frame reinforcing

1шт.

521530R1

BOLT, 5/8 x 5-3/4 crg

2шт.

526453R1

BOLT, 5/8 x 6 crg

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

524465R1

SUPPORT

SPACER, rail

1шт.

10

471285R1

BRACE, between second and third rail

1шт.

10

471286R1

BRACE, between second and third rail

1шт.

220081

NUT

3/4 hex.

2шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

SCREW, 3/4 x 2-3/4 hex-hd cap

2шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4, NC, gr 5 to - FIGURE DOESN'T EX

1шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4 x 3-1/2 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

11

471300R1

PLATE, drag link

1шт.

12

471279R2

RAIL, third frame

1шт.

12

471280R2

RAIL, third frame

1шт.

102639

NUT,5/8"-11, G5

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8 x 3-1/4 hex-hd cap, Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

471287R91

STAND

ASSY

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 med lock

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8 x 2-1/2 hex-hd cap

1шт.

14

512654R1

PIN

5/8 x 2-3/4 pointed std-hd

1шт.

15

520175R1

CLIP

PIN, quick attachable cot.

1шт.
