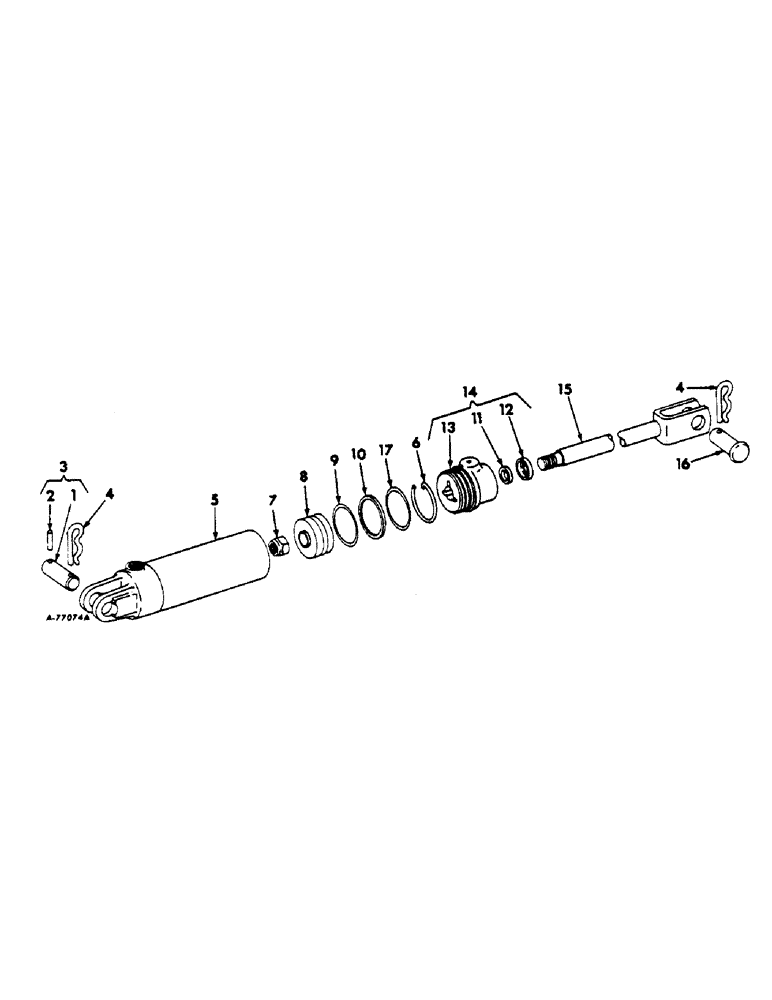

Запчасти Case IH 535 (AH-18) - HYDRAULIC CYLINDER, 3 X 8 SINGLE ACTING

381853R94

CYLINDER

ASSY, single acting, 3 x 8

1шт.

1

381852R1

PIN, cyl pivot

1шт.

2

591260R1

Pin, 1/4" x 1 7/8", Coiled 1/4" x 1 7/8", Coiled

1шт.

3

381852R11

PIN

ASSY, cyl pivot

1шт.

4

520175R1

CLIP

PIN, quick-attachable cot.

2шт.

5

381861R91

BODY

TUBE ASSY, cylinder

1шт.

6

381873R1

RETAINER

cylinder end

1шт.

7

385054R1

NUT

3/4 lock

1шт.

8

381869R1

PISTON

HEAD, piston

1шт.

9

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

2-5/8 x 3-3/15 x 9/32

1шт.

10

381872R1

WASHER

piston hd backup

1шт.

11

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

12

354049R1

RETAINER

piston rod dust seal

1шт.

13

381804R2

HEAD

rod end

1шт.

14

381804R21

HEAD ASSY.

HEAD ASSY, rod end

1шт.

15

381842R91

ROD

ASSY, piston

1шт.

16

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1-3/4 x 2-3/4 dld-std-hd

1шт.

17

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2-3/4 x 3 x 1/8

1шт.
