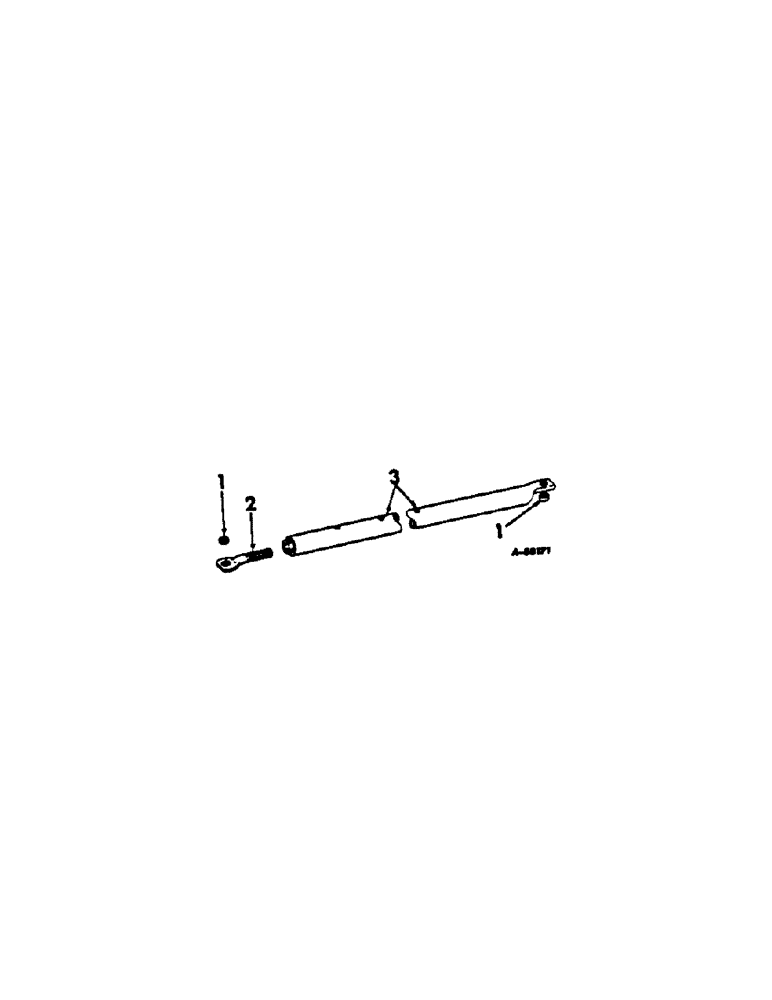

Запчасти Case IH 535 (AH-16[B]) - HYDRAULIC HOSE SUPPORT

1

463115R1

SUPPORT, hose

1шт.

17578R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2

BOLT, 5/8-11 x 2-1/2 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

1шт.

2

667934R1

BOLT (SPREADER)

BOLT, hose support eye

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

479357R1

BAR, hose support

1шт.

381853R94

CYLINDER

ASSY, 3 x 8 single acting hyd

1шт.

371292R92

HYDRAULIC CYLINDER

CYLINDER ASSY, 3-1/2 x 8 double acting

1шт.

371291R97

CYLINDER

ASSY, 2-1/2 x 8 double acting, for shifting hitch

1шт.

395149R1

QUICK MALE COUPLING

COUPLING, self sealing male, 1 for single acting cylinders, 2 for double acting cylinders

1шт.

653348R91

FLEXIBLE HOSE

HOSE ASSY, 155 in. long w/90 deg elbow, 1 for single acting cylinder, 2 for 3-1/2 x 8 double acting cylinder

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hose, 2 for single acting cylinder, 4 for double acting cylinders

1шт.

3356388R91

HOSE ASSY, hyd 1/2 x 90 in. long, 2 for 2-1/2 x 8 double acting cylinder

1шт.

486698R91

PRODUCT GRAPHICS PACKAGE, consists of

1шт.

2753635R1

535 MODEL DESIGNATION (NSS)

1шт.

2751883R1

PRODUCT GRAPHIC, warning instructions (NSS)

1шт.

2750856R2

PRODUCT GRAPHIC

instructions for plow bottoms (NSS)

1шт.

1000840R3

DECAL

PRODUCT GRAPHIC, IH

1шт.

2754030R1

PRODUCT GRAPHIC

MODEL DESIGNATION

1шт.

2751264R1

PRODUCT GRAPHIC

INTERNATIONAL

1шт.
