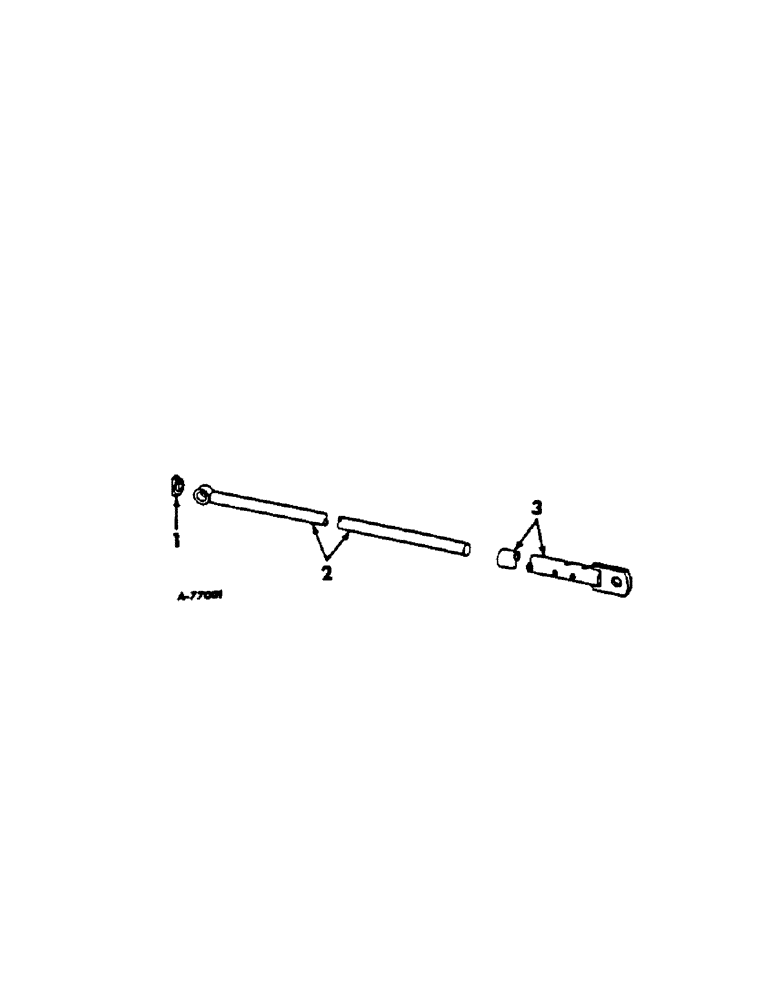

Запчасти Case IH 535 (AH-16[A]) - FRONT STEERING LINKAGE

1

471335R2

SPACER

steering arm

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

2шт.

2

471358R1

BOLT

LINK, front steering adjusting

1шт.

516773R1

NUT

1/8 hex. jam

1шт.

3

486686R1

TUBE ASSY, steering

1шт.

220083

NUT,1"-8, G5

1/8 hex.

1шт.
