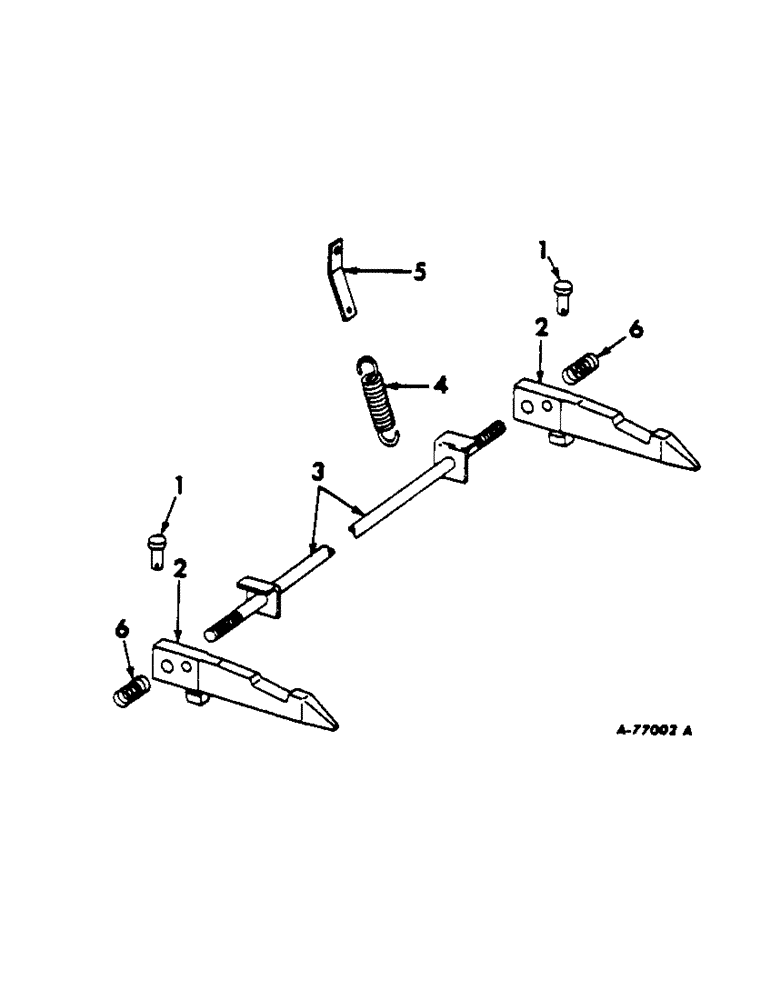

Запчасти Case IH 535 (AH-15[A]) - VERTICAL HITCH LIMITER 656, 706, 806 & 756, 856 TRACTORS W/TWO POINT HITCH

1

473168R91

BRACKET

ASSY, restrictor, 706, 756, 806, 856 tractors

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW 5/8-11 x 2 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

473171R1

PIN

restrictor bracket, 706, 756, 806, 856 tractors

1шт.

2

481985R1

PIN, restrictor bracket, 656 tractors

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , Self-opening 1/4" x 1 1/2"

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

3

473157R91

RESTRICTOR ASSY, plows w/furrow hitch, 706, 756, 806, 856 tractors

1шт.

3

481605R91

RESTRICTOR ASSY, plows w/furrow hitch, 656 tractors

1шт.

4

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSY, restrictor

1шт.

5

476704R91

PIPE ASSY, restrictor, plows w/land or furrow shifting hitch

1шт.

6

476706R91

ROD ASSY, restrictor, plows w/land or furrow shifting hitch

1шт.

7

389372R21

BRACKET

ASSY, restrictor, 656 tractors

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

4шт.
