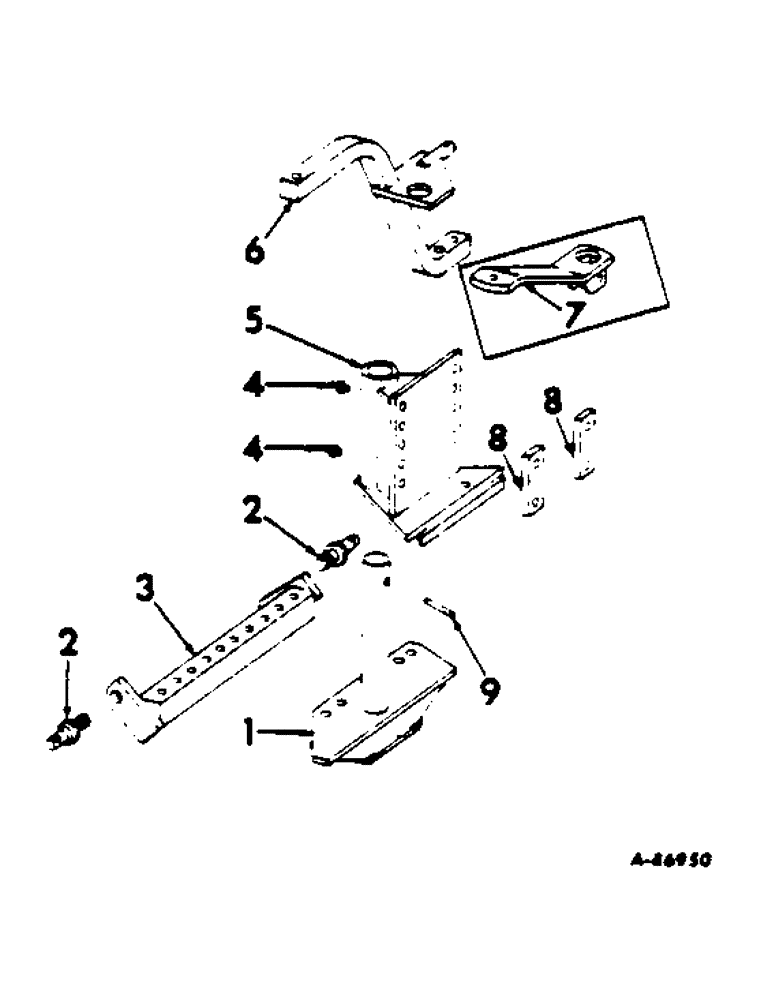

Запчасти Case IH 535 (AH-14) - FURROW HITCH, 656, 706, 756, 806, 856, 1206, 1256 TRACTORS

1

473142R92

PIVOT ASSY, drawbar

1шт.

280954

NUT,3/4"-10, G5

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

21720R1

WASHER

2-17/32 x 3-1/4 x 16 ga C-Z (as required)

2шт.

2

472790R1

STUD

hitch lower, 656, 706 and 806 tractors

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex.

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

2шт.

3

471336R11

DRAWBAR ASSY, 656, 706 & 806 tractors

1шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

2шт.

5

471343R93

BRACKET ASSY, pivot

1шт.

6

473144R91

ARM ASSY, front steering

1шт.

280954

NUT,3/4"-10, G5

2шт.

21706R1

BOLT,Hex, 3/4" - 10 x 5 3/4", Gr 5

SCREW, 3/4-10 x 5-3/4 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

7

(Not used in this application)

1шт.

8

471350R1

BAR

CLIP, pivot bracket

2шт.

280954

NUT,3/4"-10, G5

6шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

9

473149R1

PIN, pivot shaft

1шт.

21635R1

PIN, 1/4 x 1-1/4 C-Z self-opening cot.

2шт.
