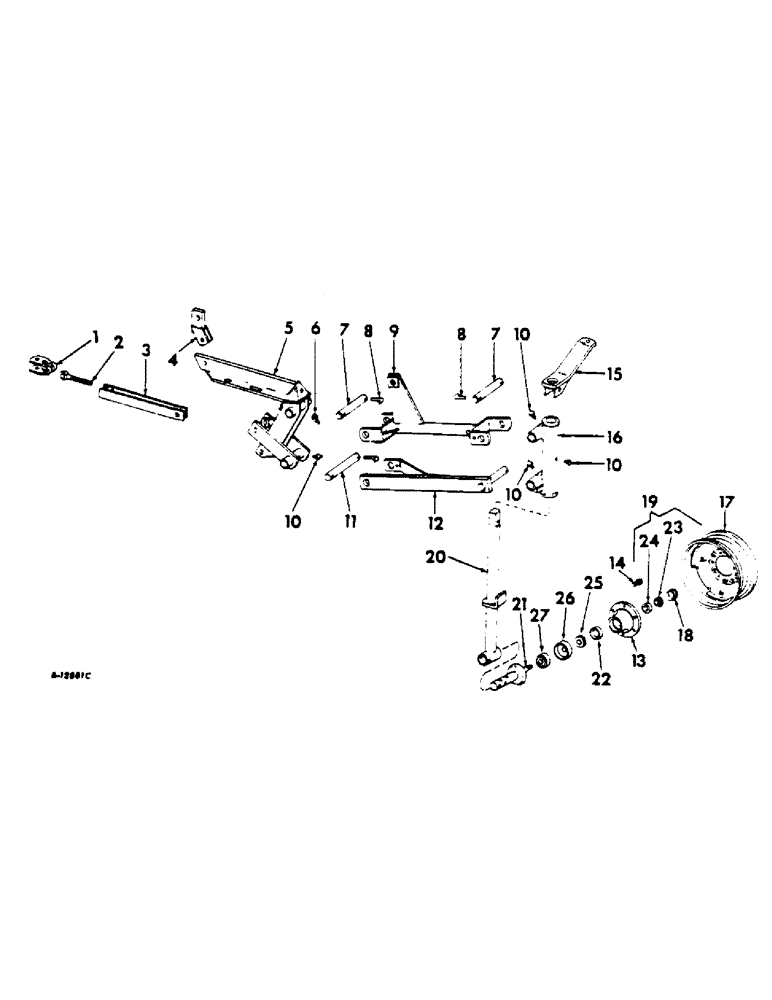

Запчасти Case IH 535 (AH-13) - STEERABLE WHEEL UNIT

1

471355R2

CLEVIS

drag link

1шт.

280954

NUT,3/4"-10, G5

2шт.

21645R1

PIN, 1/4 x 1-3/8 C-Z cot.

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 3-1/4 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

21675R1

PIN

3/4 x 3-1/4 znp std-hd

1шт.

2

471356R1

BOLT

EYEBOLT, drag link

1шт.

3

471352R91

LINK ASSY, drag

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 zn-pltd nylon insert

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

4

471312R91

ANCHOR ASSY, cylinder

1шт.

PO2130

PIN, 3/4 x 2-1/8 std-hd

1шт.

108645

COTTER PIN

PIN, 1/4 x 1-3/8 extended prong cot.

1шт.

5

471302R92

MOUNTING ASSY, rear

1шт.

521530R1

BOLT, 5/8 x 5-3/4 sq-nk crg

2шт.

526453R1

BOLT, 5/8 x 6 sq-nk crg

1шт.

102639

NUT,5/8"-11, G5

1шт.

425-1110

NUT,5/8"-18, G5

2шт.

218443

NUT

3/4 hex. jam

1шт.

271596

CLEVIS COUPLING

SCREW, 5/8 x 4-1/4 hex-hd cap

1шт.

14-1084

BOLT,Hex, 5/8" - 18 x 5-1/4", Gr 5

SCREW, 5/8 x 5-1/4 hex-hd cap , Fine threads

1шт.

113-1092

SCREW, 5/8 x 5-3/4 hex-hd cap

1шт.

471370R1

BOLT,Hex, 3/4" - 10 x 2 1/4"

SCREW, 3/4 x 2-1/4 thd-to-hd hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

369936R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

6

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4 tapered 45 deg elbow lub

1шт.

7

471322R1

PIN

upper arm

2шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), , self-opening 3/8" x 1 7/8"

2шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z (as required)

3шт.

8

471323R1

LINCH PIN

PIN, pivot pin lock

3шт.

9

471315R91

ARM ASSY, upper

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

4шт.

11

471327R1

PIN

lower arm front

1шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), , self-opening 3/8" x 1 7/8"

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z (as required)

1шт.

12

471324R11

ARM ASSY, lower

1шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), , self-opening 3/8" x 1 7/8"

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

1шт.

13

465493R1

HUB

wheel

1шт.

14

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

6шт.

15

486685R2

ARM ASSY, rear steering

1шт.

462249R1

NUT

3/4-16 hex. lock

1шт.

271798

BOLT

SCREW, 3/4-16 x 3-1/4 C-Z hex-hd cap

1шт.

16

471332R1

HOUSING, rear axle

1шт.

17

463034R1

RIM

14 x 5KB, 1-1/8 offset, 6 bolt

1шт.

17

622192R91

WHEEL

RIM, 15 x 5KB, 1-1/8 offset, 6 bolt

1шт.

18

663908R1

CAP

hub

1шт.

19

371881R91

BEARING ASSY,0.8437" ID x 1.9687" OD x 0.690, 0.55"

ASSY, wheel outer roller

1шт.

20

471328R11

AXLE ASSY, rear

1шт.

21

471331R21

SPINDLE

ASSY, rear wheel

1шт.

69442D

NUT

3/4-16 slt hex.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

625688R1

WASHER

2-1/32 x 3 x 16 ga

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z, required on axle above stop, on top of housing as required

1шт.

22

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner roller

1шт.

23

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Wheel outer

1шт.

24

371883R1

BEARING CUP

Wheel outer

1шт.

25

618023R1

CONE

BEARING ASSY, inner roller cone

1шт.

26

667564R1

RING

wear sleeve

1шт.

27

667599R91

OIL SEAL

oil

1шт.
