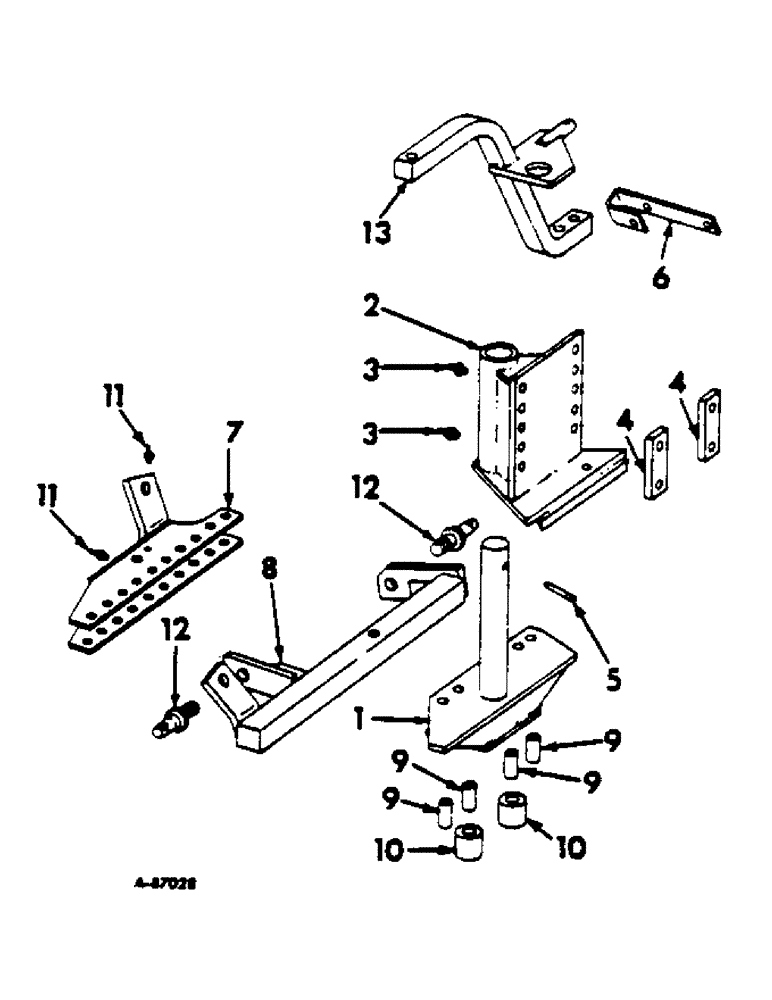

Запчасти Case IH 535 (AH-12) - HYDRAULIC FURROW SHIFTING HITCH

1

473142R91

PIVOT ASSY, drawbar

1шт.

451789R2

WASHER, 2-17/32 x 3-1/4 x 16 ga

3шт.

2

471343R93

BRACKET ASSY, pivot

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF2 str lub pivot

2шт.

4

471350R1

BAR

CLIP, pivot bracket

2шт.

271618

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 5

SCREW, 3/4-10 x 3-3/4 hex-hd cap

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

4шт.

5

473149R1

PIN, pivot shaft

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

2шт.

6

481878R1

BRACE, shifting hitch spring

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1/2-13 C-Z hex.

1шт.

7

481879R91

SPARE PART

GUIDE ASSY, shifting hitch

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

SCREW, 3/4-10 x 4-1/2 C-Z hex-hd cap

2шт.

21700R1

BOLT,Hex, 3/4" - 10 x 6 1/4", Gr 5

SCREW, 3/4-10 x 6-1/4 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

4шт.

8

481884R91

BAR ASSY, draw

1шт.

9

481890R1

SPACER, drawbar

4шт.

10

481889R1

SPACER, drawbar roller

2шт.

11

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 NF2 str lub

2шт.

12

472790R1

STUD

lower hitch

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

2шт.

427357

NUT, 1-1/8-12 C-Z hex.

2шт.

13

473144R91

ARM ASSY, front steering

1шт.

272556

GEAR

SCREW, 3/4-10 x 5-3/4 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

220081

NUT

3/4-10 hex.

1шт.
