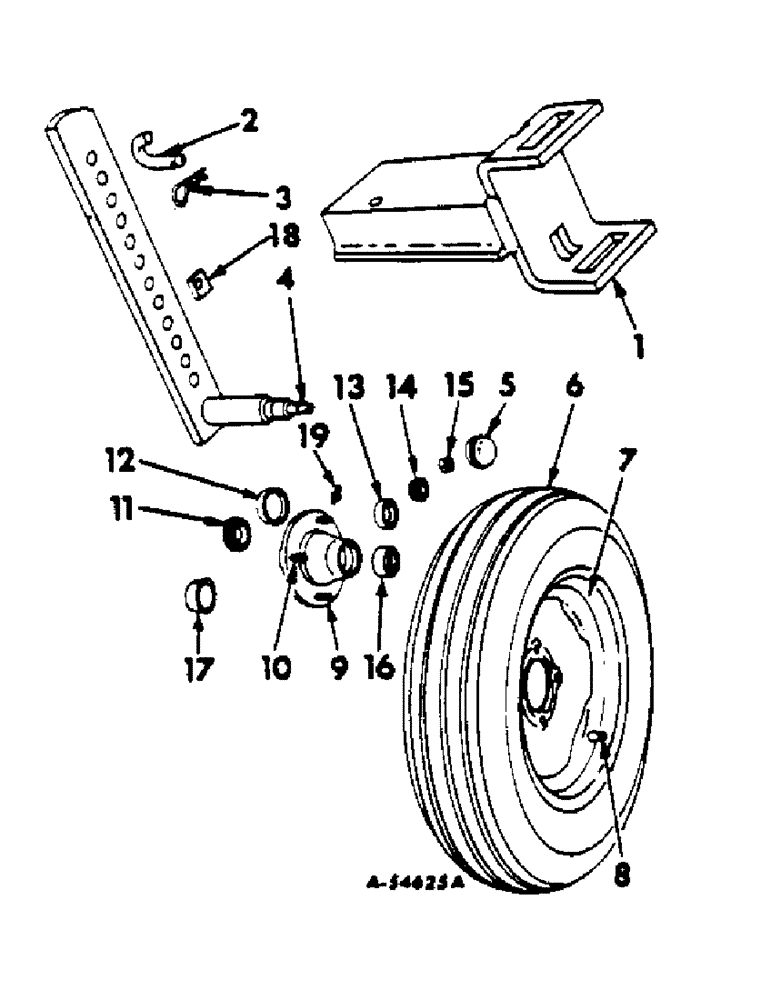

Запчасти Case IH 535 (AH-09) - GAUGE WHEEL AND BRACKET

1

473153R91

BRACKET ASSY

1шт.

20331R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

SCREW 5/8-11 x 8-1/2 hex-hd cap

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

bracket brace

2шт.

2

520620R1

AXLE PIN

PIN, retaining

1шт.

3

520175R1

CLIP

PIN, quick-attachable cot.

1шт.

4

467474R92

SUPPORT ASSY.

STANDARD W/SPINDLE ASSY

1шт.

472634R1

WASHER

25/32 x 1-3/4 x 11 ga

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Extended prong 1/8" x 1 1/4"

1шт.

5

651194R1

CAP

hub

1шт.

6

TIRE, ribbed implement pneumatic, 6.70 x 15

1шт.

7

455169R92

WHEEL

14 x 4-1/2KB, for 6.70 x 15 tire

1шт.

7

463036R1

WHEEL (STEERING)

WHEEL, 14 x 5KB, for 14 in. tire

1шт.

8

TUBE, pneumatic, 6.70 x 15

1шт.

9

472220R11

HUB

ASSY, wheel

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 15/16 conical hd hub

4шт.

10

(Not used in this application)

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, inner cone

1шт.

12

651817R1

BEARING CUP

BEARING, inner cup

1шт.

13

651814R1

BEARING CUP

BEARING, outer cup

1шт.

14

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

1шт.

14

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

15

69442D

NUT

3/4-16 slt hex.

1шт.

16

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

ASSY, wheel hub oil

1шт.

17

472222R1

SLEEVE

oil seal wear

1шт.

18

473155R1

SPACER, guage wheel bracket

1шт.

19

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

1шт.
