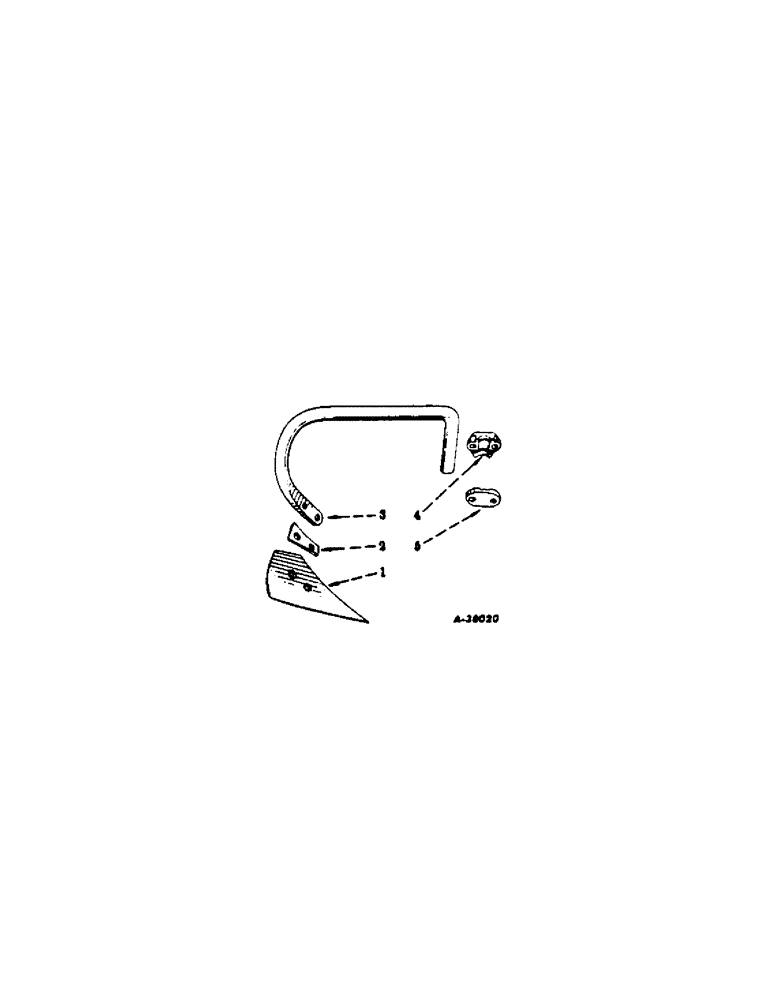

Запчасти Case IH 535 (AH-08) - JOINTER, TWO PIECE BLADE, ONE PER FURROW

1

519344R1

SHANK

1шт.

13270R1

BOLT, 3/8 x 1-1/4 sq-hd mach

1шт.

13291R1

BOLT, 3/8 x 1-1/2 sq-hd mach

1шт.

Q1505

WASHER

13/32 x 1 x 16 ga

1шт.

102635

NUT,3/8"-16, G5

1шт.

2

519343R1

BLOCK, jointer

1шт.

3

519342R1

CAP, jointer adjusting

1шт.

15126R1

BOLT, 1/2 x 2-3/4 crg

1шт.

102637

NUT,1/2"-13, G5

1шт.

4

PO2426

FROG, RH

1шт.

5

PO2226

SHARE, chilled

1шт.

5

PO20092X

BLADE

SHARE W/BOLTS, steel

1шт.

15830R1

BOLT, 3/8 x 1-3/8 no. 7 plow

1шт.

102635

NUT,3/8"-16, G5

1шт.

6

PO1186

MOLDBOARD, chilled

1шт.

6

S7408X

MOLDBOARD W/BOLTS, steel

1шт.

15815R1

BOLT, 3/8 x 1-1/8 no. 7 plow

1шт.

102635

NUT,3/8"-16, G5

1шт.
