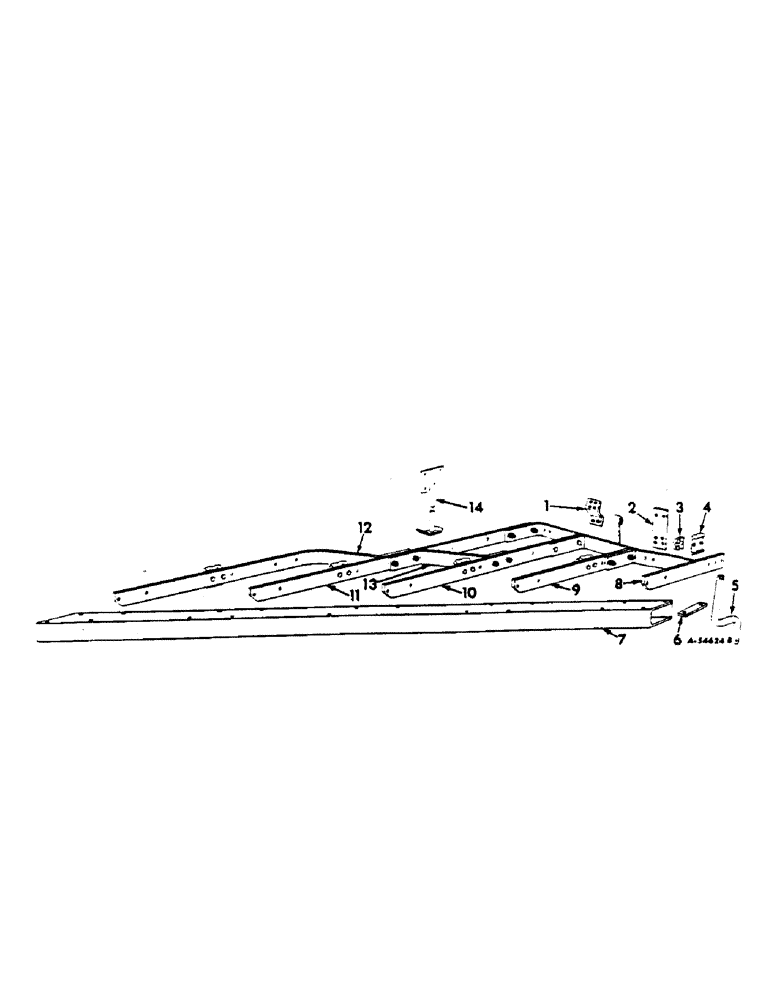

Запчасти Case IH 512 (X-02) - MAIN FRAME, COLTER CLAMP AND SHANK

1

526447R2

PLATE, coupling beam adjusting

1шт.

5/8 NUT

2шт.

5/8 x 2-1/2 HEX-HD CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

2

526440R2

PLATE, coupling beam adjusting

1шт.

5/8 NUT

2шт.

5/8 x 2-1/2 HEX-HD CAP SCREW

2шт.

5/8 LOCK WASHER

1шт.

3

524492R1

CLAMP

CAP, colter clamp

5шт.

4

524456R3

CLAMP

colter

1шт.

5/8 NUT

10шт.

5/8 x 4 HEX-HD CAP SCREW

10шт.

5

522434R1

STEM

SHANK, colter

1шт.

5/16 x 2-1/4 SELF-OPENING COT PIN

1шт.

6

524469R1

STRAP, reinforcing

1шт.

521530R1

5/8 x 5-3/4 CRG BOLT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

BEAM UNIT WASHER

2шт.

7

526370R91

FRAME, main, 14 in. plows

1шт.

7

526367R91

FRAME

main, 16 in. plows

1шт.

525184R1

5/8 x 5-1/4 CRG BOLT

14шт.

5/8 NUT

14шт.

5/8 LOCK WASHER

14шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

BEAM UNIT WASHER

14шт.

8

526375R91

ARM, frame rail support, 14 in. plows

1шт.

8

526376R91

ARM, frame rail support, 16 in. plows

1шт.

9

526429R1

RAIL, frame 2nd

1шт.

10

526430R1

RAIL, frame 3rd

1шт.

5/8 NUT

2шт.

5/8 x 2-1/2 HEX-HD CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

11

526436R1

RAIL, frame 4th, 14 in. plows

1шт.

11

526437R1

RAIL, frame 4th, 16 in. plows

1шт.

12

526439R1

RAIL, frame offset, 5 furrow, 14 in. plow

1шт.

12

526438R1

RAIL, frame offset, 5 furrow, 16 in. plow

1шт.

5/8 NUT

10шт.

5/8 x 3-1/4 HEX-HD CAP SCREW, RAILS TO BEAM UNITS

10шт.

5/8 LOCK WASHER

10шт.

13

526433R1

BRACE, cross, 14 in. plows

1шт.

13

526434R1

BRACE, cross, 16 in. plows

1шт.

5/8 NUT

4шт.

5/8 x 2-1/2 HEX-HD CAP SCREW

2шт.

5/8 x 3-1/2 HEX-HD CAP SCREW

2шт.

5/8 LOCK WASHER

4шт.

14

463422R91

STAND, support

1шт.

5/8 x 2-1/4 HEX-HD CAP SCREW

1шт.

19508R1

LOCK NUT,5/8"-11, GB

5/8 LOCK NUT

1шт.

26209B

AXLE PIN

5/8 x 1-13/16 DLD-STD-HD PIN

1шт.

520175R1

CLIP

QUICK-ATTACHABLE COT PIN

1шт.
